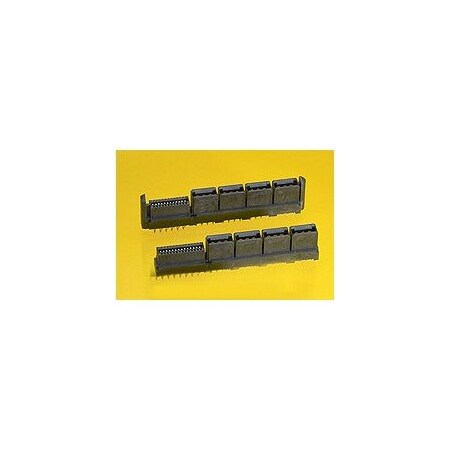

46114-1413, Conn LPH RCP 14Power/12Signal POS Press Fit ST Thru-Hole 68 Terminal 1 Port Extreme LPHPower Tray (5 Items)
- Brand: Molex / Waldom
- PartNumber: 46114-1413
- Model: 45984-6142
- Manufacturer: Molex / Waldom
- Label: Molex / Waldom
Attributes
| Key | Value |
|---|
| (p)ower-(s)ignal Config. | 14p - 12s |
| Application | Board-to-Board, Power |
| Category | Connectors, Interconnec. |
| Circuits (maximum) | 26 |
| Color | Black |
| Color - Resin | Black |
| Connector Style | LPHPower |
| Connector Type | Receptacle, Outer Shrou. |
| Connector Usage | - |
| Contact Finish | Gold |
| Contact Finish Thickness | 30.0?in (0.76?m) |
| Contact Layout, Typical | 12 Signal, 14 Power |
| CSA | LR19880 |
| Current - Maximum per C. | 30.0A |
| Current Rating (Amps) | - |
| Description | 1.27MM, 12.00MM PITCH, . |
| Detailed Description | 26 Connector Receptacle. |
| Digi-Key Part Number | 2266-46114-1413-ND |
| Durability (mating cycl. | 250 |
| Features | - |
| Flammability | 94V-0 |
| Manufacturer | Molex |
| Manufacturer Product Nu. | 46114-1413 |
| Material - Metal | High Performance Alloy . |
| Material - Plating Mati. | Gold |
| Material - Plating Term. | Tin |
| Material - Resin | High Temperature Thermo. |
| Material Flammability R. | UL94 V-0 |
| Mfr | Molex |
| Mounting Type | Through Hole |
| Number of Columns | - |
| Number of Positions | 26 |
| Number of Positions Loa. | All |
| Number of Rows | 2 |
| Operating Temperature | -40?C ~ 105?C |
| Orientation | Vertical |
| Package | Box |
| Pitch | - |
| Pitch - Mating Interface | 1.27mm, 12.00mm |
| Pitch - Termination Int. | 1.27mm, 2.50mm |
| Plating min - Terminati. | 2.540?m |
| Polarized to Mating Part | Yes |
| Polarized to PCB | Yes |
| Product Status | Active |
| Series | EXTreme LPHPower 46114,. |
| Surface Mount Compatibl. | Yes |
| Temperature Range - Ope. | -40? to +105?C |
| Termination | Press-Fit |
| Termination Interface: . | Through Hole - Complian. |
| Voltage - Maximum | 250V AC (RMS)/DC |
| Voltage Rating | 250V |
