Prince PMC-5648

mpnPMC-5648
brandname: Prince
manufacturername: Prince

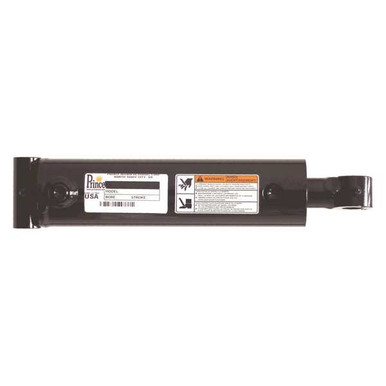

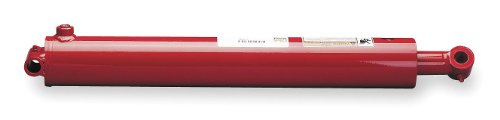

Cylinder, hyd, 4 In Bore x 48 In Stroke

Cylinder, hyd, 4 In Bore x 48 In Stroke

zoom

Brand: Prince
PartNumber: PMC-5648
Model: Prince Royal Welded Cylinders
Size: One Size
PackageQuantity: 1
Binding: Misc.
Manufacturer: PRINCE
Label: PRINCE

Attributes

Key	Value
Body Material	Steel
Bore Dia.	4 in
Bore Dia. (In.)	4
Brand	Prince
Bushing	-
Column Load	16,930 lb
Country of Origin (subj.	United States
Current Stock	29
Dimension A (In.)	3/16
Dimension B (In.)	1/2
Dimension C (In.)	1/2
Dimension D (In.)	1-17/64
Dimension E (In.)	15/16
Dimension Ee (In.)	-
Dimension F (In.)	-
Dimension G (In.)	1-1/8
Dimension H (In.)	2-1/8
Dimension J (In.)	-
Dimension K (In.)	-
Dimension Kk (In.)	-
Dimension L (In.)	4-1/2
Dimension L1	2
Dimension Lb (In.)	-
Dimension Mm (In.)	-
Dimension N (In.)	1-5/16
Dimension O	2-7/8
Dimension P (In.)	-
Dimension V (In.)	-
Dimension W (In.)	-
Dimension Y (In.)	-
Dimension Zj (In.)	-
Duty Rating	Standard Duty
Extended Length	105 in
Finish	Red Painted
Includes	-
Inlet SAE (In.)	-
International Shipping	No
Item	Welded Hydraulic Cylind.
Material	Steel
Max. Pressure	2,500 psi
Max. Pressure (PSI)	2500
Mpn	PMC-5648
NPT Port (In.)	1/2
Pin Dia.	1 17/64 in
Piston Material	Ductile Iron
Piston Rod	Polished Chrome
Piston Rod Material	Chrome Plated
Piston Seal	Cast Iron
Piston Seal Type	Cast Iron
Port Size	1/2 in NPTF
Port Size (NPT)	1/2"
Retract (In.)	57
Retracted Length	57 in
Ring Material	Cast Iron
Rod Dia.	2 in
Rod Dia. (In.)	2
Rod Seal	Urethane U-cup
Rod Seal Type	Urethane U-cup
Single Acting/Double Ac.	Double Acting
SKU	ZO-G0654902
Standards	-
Stroke (In.)	48
Stroke Length	48 in
SubCategory	Hydraulics
Temp. Range	-
Tie Rods	-
Tubes	Heavy-wall Honed Steel
Type	Double Acting Welded
Wear Band	-
