T&S BRASS B-0970-01

mpnB-0970-01
brandname: T&S Brass
manufacturername: T&S Brass

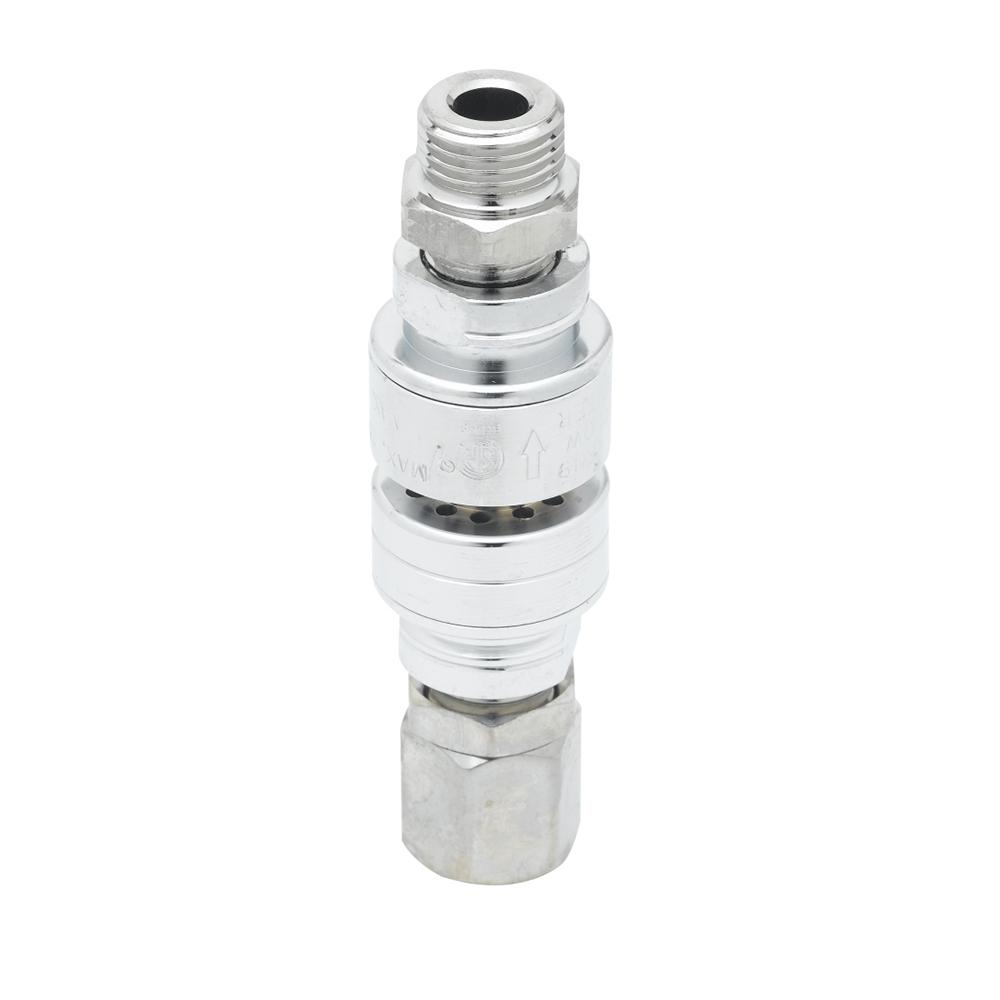

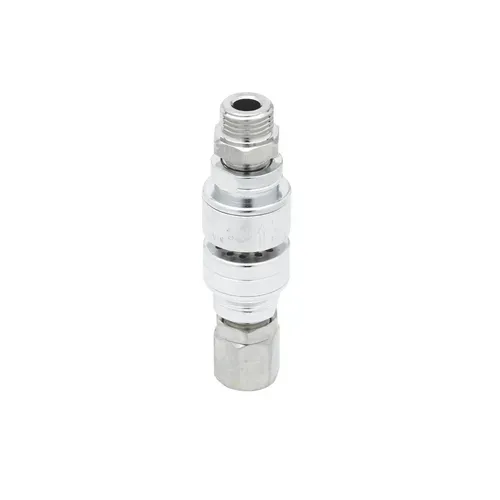

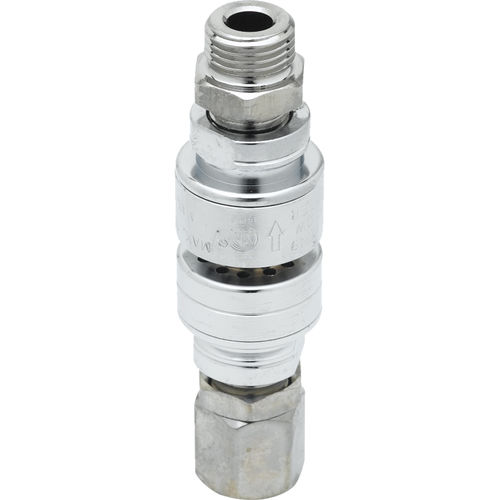

T&S Brass B-0970-01 Vacuum Breaker, 3/8-Inch Npt Inlet and Outlet, Atmospheric

T&S Brass B-0970-01 Vacuum Breaker, 3/8-Inch Npt Inlet and Outlet, Atmospheric

zoom

Brand: T&S BRASS
PartNumber: B-0970-01
Model: B-0970-01
PackageQuantity: 1
Binding: Tools & Home Improvement
Manufacturer: T&S Brass
Label: T&S Brass

Attributes

Key	Value
ADA Compliant	Yes
ANSI	ANSI 61, ANSI 372
Application	Commercial
ASME	ASME A112.18.1
BAA	Yes
BAA Compliant	Yes
Box Dims	4x3x4 1/2
Brand	T&S Brass Faucets, T&S .
CARB OTC LEED Compliant	No
Color Finish Category	Chromes
Color Finish Name	Polished Chrome
Country of Origin	US
CSA Certified	CSA B125.1
Depth (in)	00
End Connection 1	NPT
End Connection 2	NPT
End Connections	NPT
Engineering Spec	In-line continuous pres.
FEATURE1	In-line 3/8 continuous .
FEATURE2	Coupling nut w/ 3/4-14 .
FEATURE3	Adapter with 3/4-14 UN .
FEATURE4	Design prevents back si.
FEATURE5	Material: Polished chro.
Fitting Size 1	3/8 in
Fitting Size 2	3/8 in
Fitting Sizes	3/8 in
Flow Rate	7.27 gpm
GSA Approved	No
Harmonizing No	7419.91.0010
Height (in)	00
IAPMO Listed -	No
ISO	ISO 9001
Lead Law Compliance Lev.	Lead Law Compliant and .
Lead Law Compliant	Yes
Length	4-5/16 in
Low Lead Content	Yes
MA Approved -	Yes
Manufacturer	T&S Brass
Material	Brass
Maximum Temperature	140
NSF	NSF 372, NSF 61
NSF Certified	Yes
Origin	Domestic
Part #	B-0970-01
Part Description	Vacuum Breaker, 3/8 NPT.
PERFORMANCE 1	Pressure: 20 - 125 psi
PERFORMANCE 2	Temperature: 40 F - 140.
PERFORMANCE 3	Flow Rate: 7.27 GPM @ 6.
Pressure - High	60
Pressure - Maximum	125 psi
Side Spray	No
Temperature Range	40 to 140 Deg F
UL Listed	No
Unit of Measure	EA
UPC	671262518758
Warranty	One Year (Limited)
WaterSense Labeled	No
Weight	0.9, 0.9 lb, 00
Width (in)	00
