- mpnD250P1FS
- brandname: U.S. Motors
- manufacturername: U.S. Motors

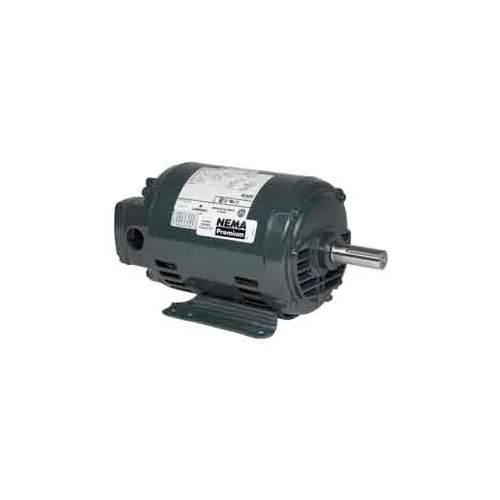

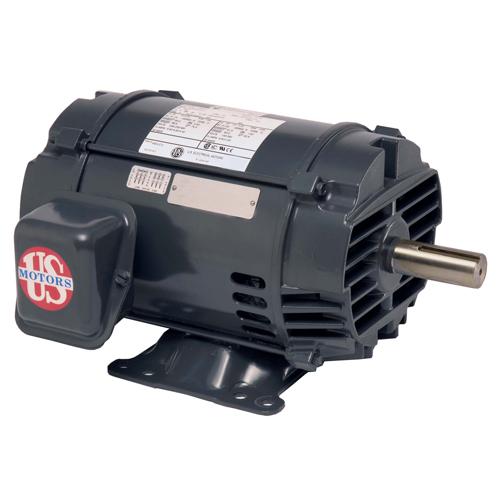

U.S. Motors US Motors, ODP, 250 HP, 3-Phase, 3560 RPM Motor, D250P1FS
- Brand: US Motors
- PartNumber: D250P1FS
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: U.S. Motors
- Label: U.S. Motors
Attributes
| Key | Value |
|---|
| Amps | 276 |
| Bearings | Ball |
| Construction | Cast Iron |
| Country of Origin (subj. | Mexico |
| Drive End Flange Type | Standard |
| Efficiency | 95% |
| Enclosure | Open |
| Enclosure Type | ODP (Open Dripproof) |
| Estimated Weight | 0.0000 |
| Family Series | US Motors Motors |
| FL Amps | 282 |
| FL Efficiency | 95.4 |
| Frame | 445TS |
| Frequency | 60 Hz |
| Gross Weight | 1200 lbs |
| Hertz | 50, 60 |
| Horsepower | 250 hp |
| HP | 250 |
| Hz | 50/60 |
| Insulation Class | F |
| Item | Motor,3PH,250HP,3600,46. |
| Item Number | D250P1FS |
| Kilowatts | 186.4 kW |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | FS38 |
| Manufacturer Part Number | D250P1FS |
| Maximum Ambient Tempera. | 40? C |
| Model Number | FS38 |
| Mounting | Foot Mount, Base |
| NEMA Frame | 445TS |
| Net Weight | 0 lbs |
| Nominal Voltage | 480 VAC |
| Number of Poles | 2 |
| Number of Speeds | 1 |
| Part Number | D250P1FS |
| Phase | 3 |
| Product Type | 3 Phase, General Purpose |
| Replaced By | Obsolete - Please Call |
| Rotation | Reversible |
| RPM | 3,565 RPM, 3565 |
| Service Factor | 1.15 |
| Ship Weight | 1200 lbs. |
| Speed (RPM) | 3560 |
| Voltage | 380V, 415V |
| Voltage (AC) | 460 VAC |
| Volts | 460 |
