Burndy YAZ32TC38

B00CBNO1WC

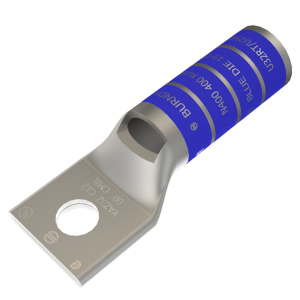

Burndy YAZ32TC38 One Hole Hylug Code Conductor Long Barrel Uninsulated Copper Compression Terminal with Inspection Window, 400 kcmil Conductor, 3/8" Stud Hole Size, 1.40" Tongue Width, 3.62" Length (Pack of 20)

Burndy YAZ32TC38 One Hole Hylug Code Conductor Long Barrel Uninsulated Copper Compression Terminal with Inspection Window, 400 kcmil Conductor, 3/8" Stud Hole Size, 1.40" Tongue Width, 3.62" Length (Pack of 20)zoom

Attributes

Key Value
ApplicationWire Termination
ApprovalsCSA, UL
Certification - CSA App.Yes
Certification - cULusNo
Certification - ETLNo
Certification - UL Reco.No
ColorBlue
Color CodeBlue
Conductor - Copper Str .400 (127) Navy
Conductor - Copper Str .400 KCMIL
Conductor - MaterialCOPPER
Conductor Size400 KCMIL
Conductor TypeCODE
Connector TypeLONG BARREL
Die Index19
Dimension - B Length fr.2-1/8 in
Dimension - B Length in.2.12 in
Dimension - Bolt Hole S.0.40 in
Dimension - Bolt Size f.3/8
Dimension - Bolt Size i.0.38
Dimension - Hole Size f.3/8
Dimension - Hole Size i.0.41
Dimension - Hole Size mm10.4 mm
Dimension - L Length Ov.92 mm
Dimension - Length Over.3.61 in
Dimension - N inch0.41 in
Dimension - Outside Dia.0.95 in
Dimension - Pad Width i.1.40 in
Dimension - Strip Lengt.2-3/16
Dimension - Stud Size f.3/8
Dimension - Stud Size i.3/8
Dimension - Z inch0.42 in
Family SeriesBurndy Terminals, YAZ S.
Feature - Barrel StyleSkived
Feature - Barrel TypeLong
Finish TypeTin-Plated
Gross Weight0 lbs
Industry Standard(s)UL 486A-486B
InsulatedNon-Insulated
Item NumberYAZ32TC38
ManufacturerBurndy
Manufacturer Part NumberYAZ32TC38
MaterialCOPPER
Max Temp194 ?F
Net Weight0 lbs
Physical Attribute - Nu.1
Physical Attribute - To.Straight
PlatedY
Plating MaterialElectro-Tin
Plating TypeTin - Electro Plated
Product SeriesYAZ
Rating - KVA35 kV
Standards - RoHS Compli.CM
Terminal MaterialCOPPER
Terminal TypeBarrel - Long
Tongue Width1.4 "
TypeLong Barrel, Skive, Tin.
UL ListedYes
Voltage - Maximum35000
Voltage Rating35 kV
Volts600 V
Wire Size400 KCMIL
Wire Size (kcmil)400 KCMIL
Wire Strip Length2.1875 "

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomusmegastore.comYAZ32TC3830.04120Burndy30.04 @ 20
thumbzoomGalcoYAZ32TC38-BURN40.472020Burndy40.47 @ 20
