Century 9673

B008DJ93RQ

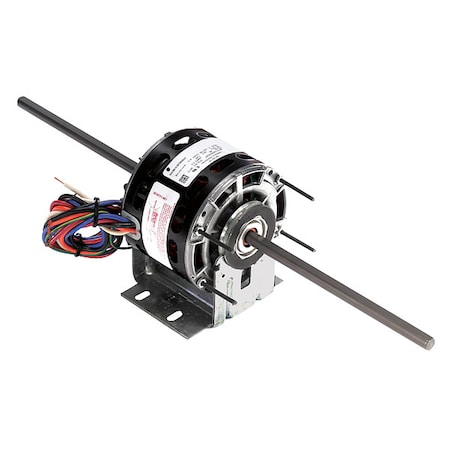

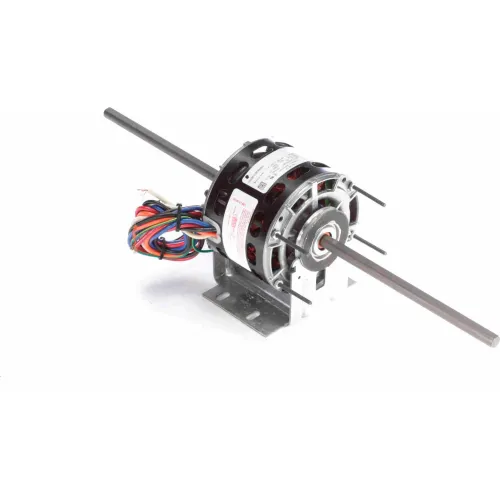

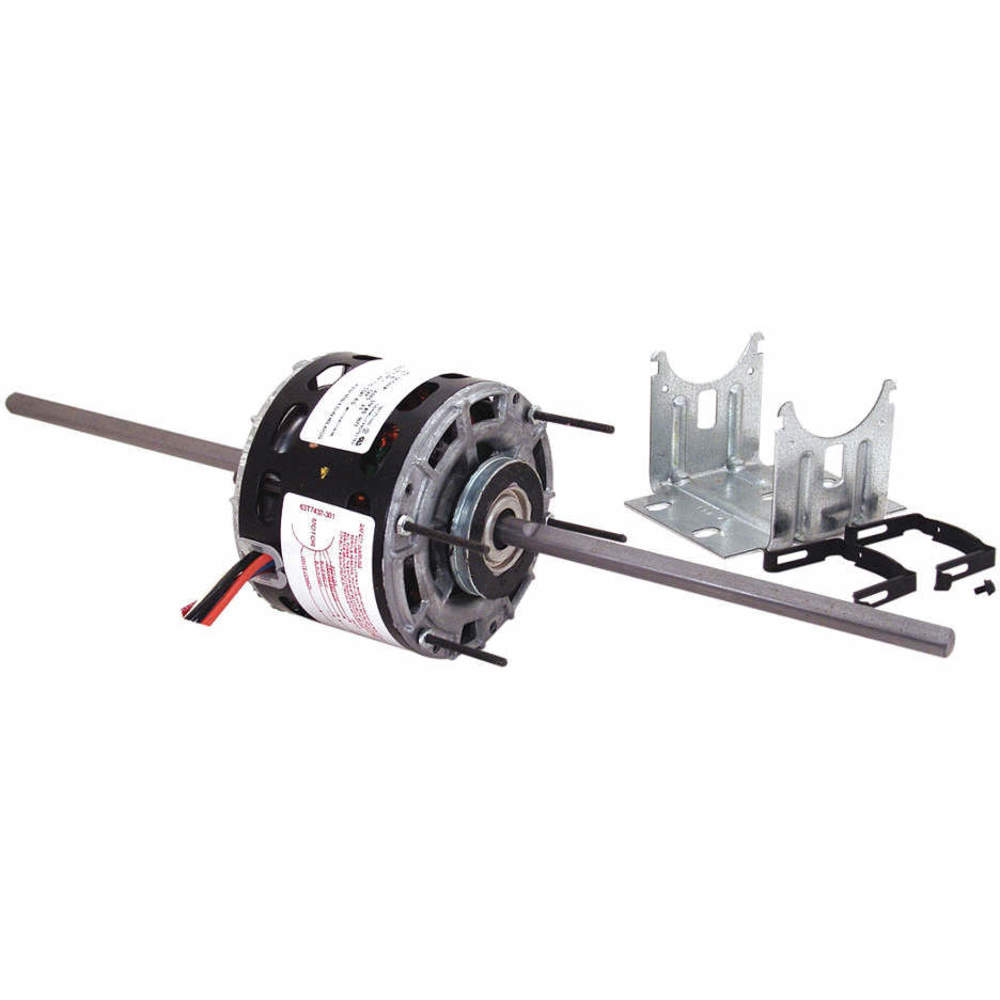

Room Air Cond Mtr, Shad Pol, OAO, 1050 RPM

Room Air Cond Mtr, Shad Pol, OAO, 1050 RPMzoom

Attributes

Key Value
9673 is listed in Centu.A.O. Smith DA3D222, Day.
Amps2
AvailabilityNo Stock Available
BearingsSleeve
Body Dia.5 in
Bolt Circle Dia.4 5/8 in
BrandCentury
Capacitor RequiredNo
Country of Origin (subj.Mexico
DutyContinuous
Duty CycleContinuous
Enclosure TypeOAO (Open Air Over)
Frame42Y
Full Load Amps2.00
HP1/35
Hz60, 60 Hz
IncludesResilient Mounting Ring
Ins. ClassB
Insulation ClassB
International ShippingNo
ItemRoom Air Conditioner Mo.
Lead Length26 in
Length Less Shaft4 11/16 in
MaterialHAWA
Max. Ambient Temp.40 Degrees C
Maximum Ambient Tempera.40? C
Motor ApplicationHVAC/R
Motor BearingsSleeve
Motor DesignShaded Pole
Motor Diameter5"
Motor Enclosure DesignOpen Air-Over
Motor Frame MaterialSteel
Motor Mounting PositionHorizontal
Motor Mounting TypeRing
Motor Service Factor1
Motor Shaft DesignFlat
Motor Shaft RotationCCWLE
Motor Sub ApplicationRoom Air Conditioner
Motor Thermal ProtectionAuto
MountingCradle/Stud
Mounting Holes4
Mounting Stud Pattern2-5/16 in x 4 in
Mpn9673
Nameplate RPM1,050
No. of Speeds4
Number of Shafts2
Number of Speeds4
Overall Length20 3/4 in
Phase1, Single
Product TypeShaded Pole
Resilient Ring Dia.2 1/2 in
Ring to Ring Center4 5/16 in
RotationDouble Shafted
RPM1050
RPM Range1,001-1,100
Service Factor (SF)1.00
Shaft Dia.1/2 in
Shaft Diameter1/2"
Shaft Length8-1/2" x 8-1/2", 8 1/2 .
Ship Weight9 lbs.
SKUCU-3455553436
StandardsCSA Certified, UL Recog.
Stud Quantity4
Stud Size#8-32 x 1-1/2 in
SubCategoryMotors/Ac Motors
Thermal ProtectionAutomatic
Usable @ 200VNo
Usable @ 208VNo
Voltage115V AC
Voltage Compatibility115/208-230V AC, 115/23.
Volts115
Weight9 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonSCB008DJ93RQ112.341In StockCentury112.34 @ 1
thumbzoomZoroG2157425140.091In StockCentury8.6140.09 @ 1
thumbzoomsimsupply.comCU-3455553436161.221In StockCentury161.22 @ 1
thumbzoomktool.net9673162.081In StockCentury162.08 @ 1
thumbzoomSquare One9673180.181In StockCENTURY180.18 @ 1
thumbzoomsustainablesupply.comC2090722186.941In StockCentury15.0186.94 @ 1
thumbzoomemotorpro.com9673200.031In StockCentury9.0200.03 @ 1
thumbzoommidwestapplianceparts.com9673-AO-P202.041In StockAO Smith202.04 @ 1
thumbzoomNational Supply NetworkB2776680211.081In StockAO SMITH211.08 @ 1
thumbzoomGlobal IndustrialWBB2776680219.951In StockCentury219.95 @ 1
thumbzoomindustrialstores.com9673221.21In Stock19Century Motors by Regal Beloit221.2 @ 1
thumbzoomRaptor SuppliesAD9TWK273.87365851In StockCENTURY273.8736585 @ 1
