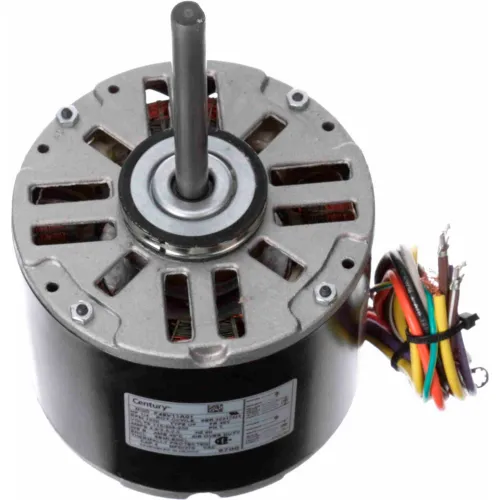

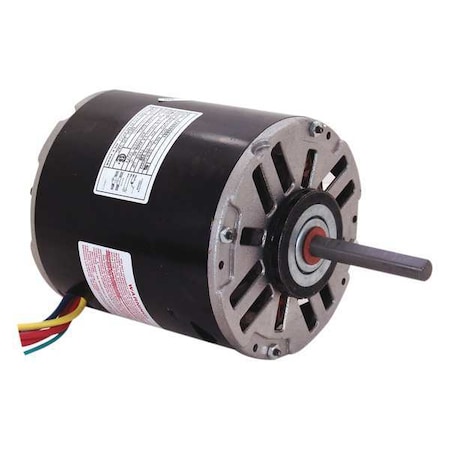

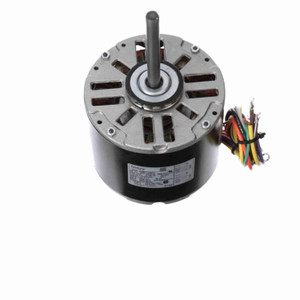

Century 9700

mpn9700
brandname: Century
manufacturername: Century

Mtr, PSC, 1/4 HP, 1550, 115/208-230V, 48Y, OAO

Brand: Century
PartNumber: 9700
Model: 9700
PackageQuantity: 1
Binding: Misc.
Manufacturer: CENTURY
Label: CENTURY

Attributes

Key	Value
9700 is listed in Centu.	A.O. Smith F48V11A01, G.
Amps	4.9/2.5-2.5, 4.9/2.5/2.5
Application	Room Air Conditioners, .
Bearings	Sleeve
Body Dia.	5 5/8 in, 5-5/8"
Brand	Century
C-Dimension	9.49 (in.)
Capacitor	4MFD @ 370VAC Required
Capacitor Required	2MDV3
Catalog Number	9700
CE	N
CSA	Y
Current Stock	47
DE Bearing Type	Sleeve
DEM Reference	NOHP
Duty	Continuous Air Over, Co.
Duty Cycle	Continuous
Electrical Type	Permanent Split Capacit.
Enclosure Type	OAO (Open Air Over), Se.
Frame	48Y
Frame Material	Rolled Steel
Frame Type	48Y
Frequency	60
Full Load Amps	4.9/2.5-2.5
HP	1/4
Hz	60
Includes	Resilient Mounting Rings
Ins. Class	B
Insulation Class	B
International Shipping	No
IP Code	-
Item	Direct Drive Blower Mot.
KVA Code	-
Lead Length	12 in
Lead Time	Expected to ship in 1-2.
Length Less Shaft	5 1/2 in, 5-1/2"
Max Ambient	40?C
Max. Ambient Temp.	40 Degrees C, 40 Degre.
Maximum Ambient Tempera.	40? C
Motor Application	HVAC/R
Motor Bearings	Sleeve
Motor Design	Permanent Split Capacit.
Motor Diameter	5-5/8"
Motor Enclosure Design	Open Air-Over
Motor Mounting Position	Horizontal
Motor Mounting Type	Ring
Motor Orientation	Horizontal
Motor Service Factor	1.00
Motor Shaft Design	Flat
Motor Shaft Rotation	CCWLE
Motor Sub Application	Direct Drive Fan/Blower
Motor Thermal Protection	Auto
Mounting	Band/Ring
Mounting Type	Resilient Rings
Mpn	9700
Nameplate RPM	1,550
No. of Speeds	1, 3
Number of Speeds	1
ODE Bearing Type	Sleeve
Overall Length	9 1/2 in
Phase	1
Product Category	HVAC/R Motors > Fan an.
Product Type	PSC (Permanent Split Ca.
Resilient Ring Dia.	2 1/4 in, 2-1/4"
Ring to Ring Center	5 1/16 in, 5-1/16"
Rotation	CW Shaft End, Countercl.
RPM	1550
RPM (Nameplate)	1550
RPM (Number of Poles)	4 (1201 RPM to 1800 RPM)
RPM Range	1,400 - 1,800
Service Factor	1
Service Factor (SF)	1.00
Shaft Dia.	1/2", 1/2 in
Shaft Diameter	1/2 (in.), 1/2"
Shaft Extension	4.5 (in.)
Shaft Length	4-1/2", 4", 4 1/2 in
Shaft Type	Flat
Ship Weight	13 lbs.
SKU	ZO-G1282382
Speeds	1
Standards	CSA Certified, UL Recog.
SubCategory	Motors/Ac Motors
Thermal Protection	Automatic
Type of Overload Protec.	Automatic
UL	Recognized
Voltage	115/208-230V AC, 115/20.
Voltage Compatibility	115, 120, 208, 230, 240.
Volts	115/208-230

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Weight	Preferred Tier
grainger.ca	AOS9700	25.69005915	1	In Stock	CENTURY	10.65	25.69005915 @ 1
Zoro	G1282382	144.99	1	93	Century	10.65	144.99 @ 1
simsupply.com	ZO-G1282382	185.89	1	47	Century		185.89 @ 1
ktool.net	9700	203.62	1	In Stock	Century		203.62 @ 1
sustainablesupply.com	C2091414	233.07	1	In Stock	Century	15.0	233.07 @ 1
emotorpro.com	9700	249.4	1	In Stock	Century	13.0	249.4 @ 1
midwestapplianceparts.com	9700-AO-P	251.88	1	In Stock	AO Smith		251.88 @ 1
National Supply Network	B2776424	260.7	1	In Stock	AO SMITH		260.7 @ 1
Dreisilker	CE-RBC-9700	263.76	1	In Stock	Century		263.76 @ 1
Global Industrial	WBB2776424	269.95	1	In Stock	Century		269.95 @ 1
hvacdiscountstore.com	CEN--9700	273.43	1	In Stock	CENTURY MOTORS		273.43 @ 1
