Chicago Latrobe 49202

B09TJR1PC6

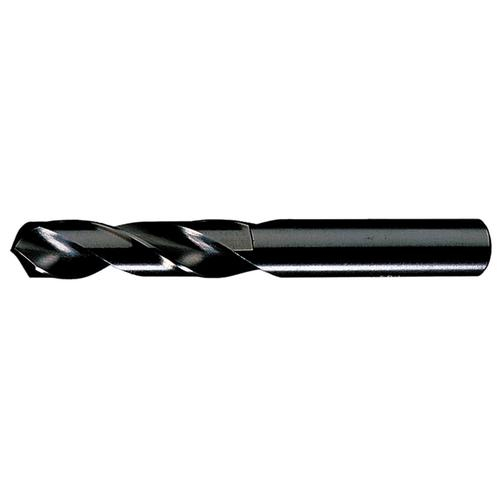

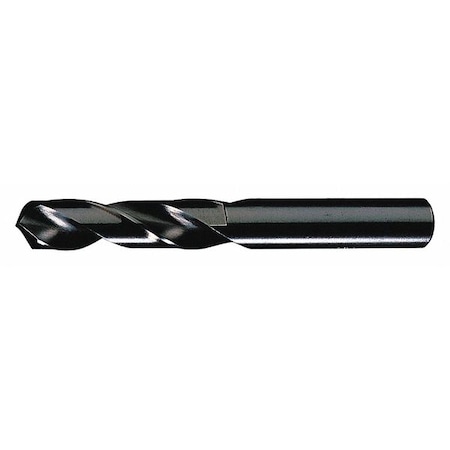

Chicago-Latrobe 49202 159 Heavy Duty Screw Machine Drill, 1/32 in Drill - Fraction, 0.0312 in Drill - Decimal Inch, HSS, Black Steam Oxide (12 Each)

Chicago-Latrobe 49202 159 Heavy Duty Screw Machine Drill, 1/32 in Drill - Fraction, 0.0312 in Drill - Decimal Inch, HSS, Black Steam Oxide (12 Each)zoom

Attributes

Key Value
Applicable MaterialsAlloy Steel, Carbon Ste.
Bit Dia.1/32"
BrandChicago-Latrobe
Current Stock29
Cutting Depth3XD
Cutting DirectionRight Hand
Cutting Edge MaterialHSS
Decimal Equivalent0.0312
Depth x Dia. Ratio4xD
Depth:Dia. Ratio4xD
Diameter0.0312"
Diameter (Fraction)1/32"
Drill Bit Dimension TypeFractional Inch
Drill Bit FinishBlack Oxide
Drill Bit GroupingDrill Bit
Drill Bit MaterialHigh Speed Steel
Drill Bit Point Angle135 Degrees
Drill Bit Size1/32 in
Drill ConstructionHeavy-Duty
Drill Diameter Measurem.Imperial
Drill Diameter Tolerance+0.0000 in /-0.0005 in
Drill Length ClassScrew Machine Length
Drill Point Length0.0065 in
Drill Size - Decimal In.0.0312 in
Drill Size - Fraction1/32 in
Drill Size SystemFractional
Drill StyleScrew Machine Drill
Drilling Length1/2"
FinishBlack Steam Oxide
Flute Length0.5000", 1/2 in
Flute Length (Metric)12.70mm
Flute TypeRight Spiral, Spiral
Hand of CutRight
Hand of SpiralRight
International ShippingNo
ItemScrew Machine Drill Bit
MaterialHSS
Maximum Drilling Depth1/2 in
Measurement SystemImperial
Mpn49202
Number of Flutes2
Overall Length1 3/8 in, 1.3750", 1-3/.
Overall Length (Metric)34.92mm
Point Angle135 deg, 135?
Point StyleSplit
Point TypeSplit
Series159
Shank ConfigurationStraight
Shank Dia.1/32 in
Shank Length0.8750", 7/8 in
Shank Length (Metric)22.22mm
Shank Size1/32", 0.0313", 1/32 in.
Shank Size (Metric)0.80mm
Shank TypeStraight
Sizes Included1/32"
SKUZO-G2993002
Style159
SubCategoryMachining
Surface ConditionSteam Oxide
Tool Size1/32"
TypeHeavy Duty
UPC662355492024

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMRO Supply61302721.412512Chicago-Latrobe1.41 @ 25
thumbzoomMegadepot492021.45112Chicago-Latrobe1.45 @ 12
thumbzoomheavydutydepot.com492021.456912Chicago-Latrobe1.45 @ 69
thumbzoomusmegastore.com492021.87112Chicago-Latrobe1.87 @ 12
thumbzoomZoroG29930022.01140Chicago-Latrobe0.012.01 @ 12
thumbzoomNational Supply Network576123923.04251212Chicago-Latrobe3.0425 @ 12
thumbzoomsimsupply.comZO-G29930028.19129Chicago-Latrobe8.19 @ 12
thumbzoomGlobal IndustrialWBB254583217.826112Chicago-Latrobe17.826 @ 12
