Dayton 4Z614

B000LDBAG4

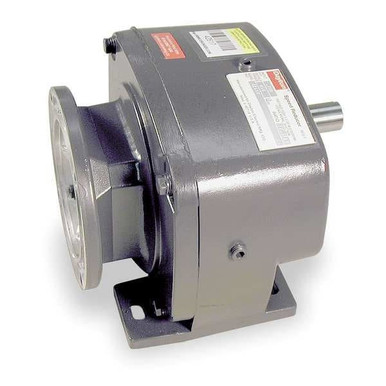

Dayton 4Z614 Reducer,Speed,30 RPM - 4Z614

Dayton 4Z614 Reducer,Speed,30 RPM - 4Z614zoom

Attributes

Key Value
BearingsBall
Bore Dia.5/8"
BrandDayton
Current Stock97
Dimension U1 in
DutyStandard
FinishPowdered Epoxy Paint
Frame56C
Gear MaterialHardened and Ground Ste.
Gear TypeHelical
GearingHelical and Spur
Housing MaterialCast Iron, Die Cast Alu.
Input RPM1725, 1750 rpm, 1750
International ShippingNo
ItemSpeed Reducer
Lead TimeExpected to ship in 1-2.
LubricationKluber Food Grade
Max. Input HP0.5, 1/2
Max. Output Torque998 in-lb, 998 in.-lb.
Max. Torque (In.-Lbs.)998
Mount Hole Center-to-Ce.4.5 in
Mount Hole Center-to-Ce.5.68 in
Mpn4Z614
NEMA/IEC Frame56C
Nominal Output RPM30 RPM, 30
Nominal Ratio57.5:1
Number of Stages1
Oil SealDouble Lip
Output Shaft Dia.1 in
Output Shaft Dia. (In.)1
Output Shaft Diameter1 in
Output Shaft Height4 7/8 in
Output Shaft Height (In.4.88
Output Torque @ 1/2 HP998 in-lb
Output Torque @ 1/2 HP .998
Output Torque @ 1/3 HP665 in-lbs
Output Torque @ 1/3 HP .665
Output Torque @ 1/4 HP499 in-lb
Output Torque @ 1/4 HP .499
Output Torque @ 1/40 HP3,600 in-lbs, 3600 in.-.
Output Torque @ 3/4 HP998 in-lbs
Overall Height7.47 in
Overall Length5.69 in
Overall Width8.44 in
Overhung Load885 lb.
Overhung Load (Lb.)885
PinionHardened Steel
Pinion MaterialHardened Steel
Prop 65WARNING: Cancer and Rep.
Reducer Model No.84400
RotationForward/Reverse
Seal TypeDouble Lip
Shaft OrientationParallel
Ship Weight26 lbs.
Single/Double Output/Un.Single Output
SKUZO-G3243064
Solid/Hollow Output Sha.Solid
Speed Reducer TypeC-Face
StandardsAGMA
SubCategoryPower Transmission
TypeC-Face
UPC190735340882
