Dayton 4Z615

B000LEY7YK

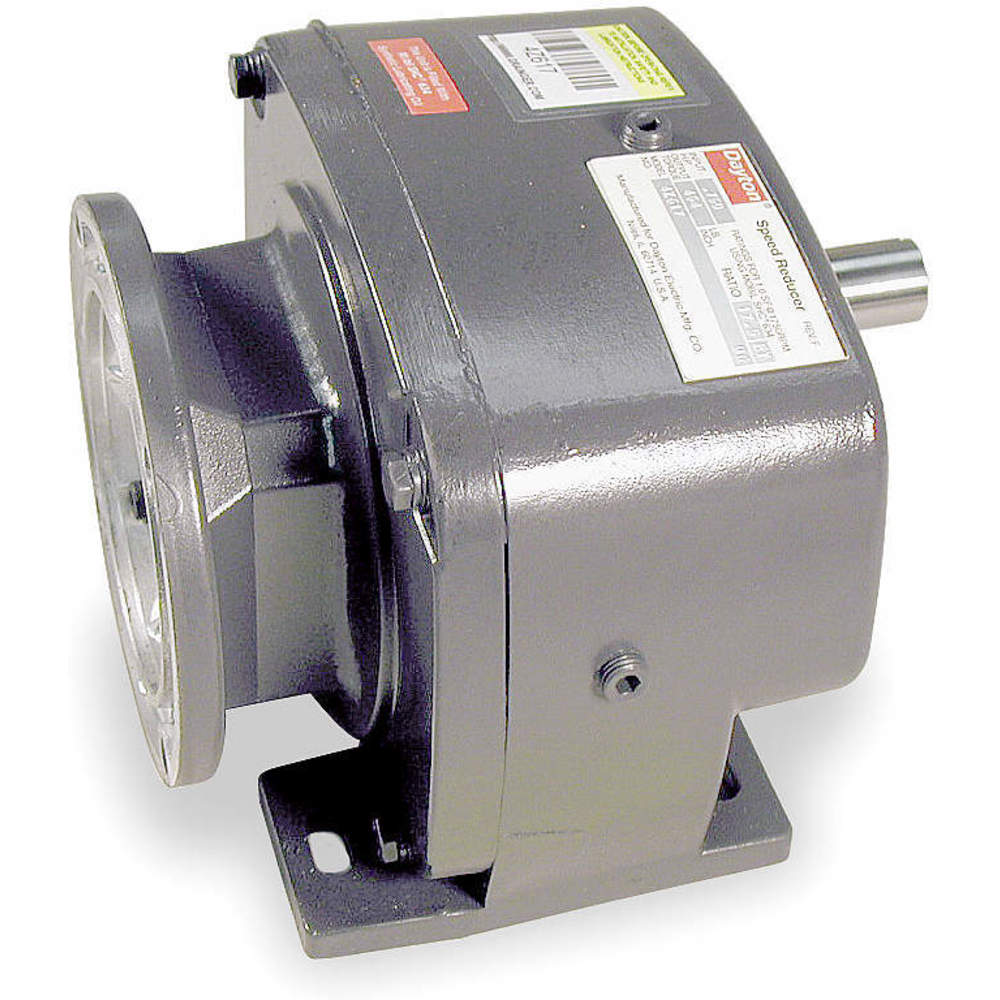

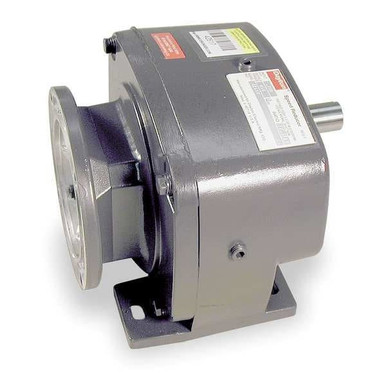

Dayton 4Z615 Reducer,Speed,45 RPM - 4Z615

Dayton 4Z615 Reducer,Speed,45 RPM - 4Z615zoom

Attributes

Key Value
BearingsBall
Bore Dia.5/8"
BrandDayton
Current Stock9
Dimension U1 in
DutyStandard
FinishPowdered Epoxy Paint
Frame56c
Gear MaterialSteel
Gear TypeHelical, Spur
GearingHelical and Spur
Input RPM1725, 1750 rpm
International ShippingNo
ItemSpeed Reducer
Lead TimeExpected to ship in 1-2.
LubricationKluber Food Grade
Max. Input HP1/2
Max. Torque (In.-Lbs.)665
Mount Hole Center-to-Ce.4.5 in
Mount Hole Center-to-Ce.5.68 in
Mpn4Z615
NEMA/IEC Frame56c
Nominal Output RPM45 RPM, 45
Nominal Ratio38.5:1
Number of Stages1
Oil SealDouble Lip
Output Shaft Dia.1 in
Output Shaft Dia. (In.)1
Output Shaft Diameter1 in
Output Shaft Height4 7/8 in
Output Shaft Height (In.4.88
Output Torque @ 1/2 HP .665
Output Torque @ 1/3 HP .443
Output Torque @ 1/4 HP333 in-lb
Output Torque @ 1/4 HP .333
Output Torque @ 3/4 HP665 in.-lb.
Overall Height7.47 in
Overall Length5.69 in
Overall Width8.44 in
Overhung Load (Lb.)863
PinionHardened Steel
Pinion MaterialHardened Steel
Prop 65WARNING: Cancer and Rep.
Reducer Model No.84401
RotationCW/CCW, Forward/Reverse
Shaft OrientationParallel Inline, Parall.
Ship Weight26 lbs.
SKUZO-G0944343
StandardsAGMA
SubCategoryPower Transmission
TypeC-Face
UPC190735340899

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG0944343707.99119Dayton26.0707.99 @ 1
thumbzoomsustainablesupply.comC1689959810.451In StockDayton26.0810.45 @ 1
AmazonTPB000LEY7YK849.741In Stock2Dayton849.74 @ 1
AmazonUNKB000LEY7YK849.741In StockDayton849.74 @ 1
thumbzoomsimsupply.comZO-G0944343853.2919Dayton853.29 @ 1
emotorpro.com4Z6151173.01In StockDayton26.01173.0 @ 1
thumbzoomRaptor SuppliesAE2QYF1289.7124111In StockDAYTON1289.712411 @ 1
