Dixon 4NS6-B

mpn4NS6-B
brandname: Dixon
manufacturername: Dixon

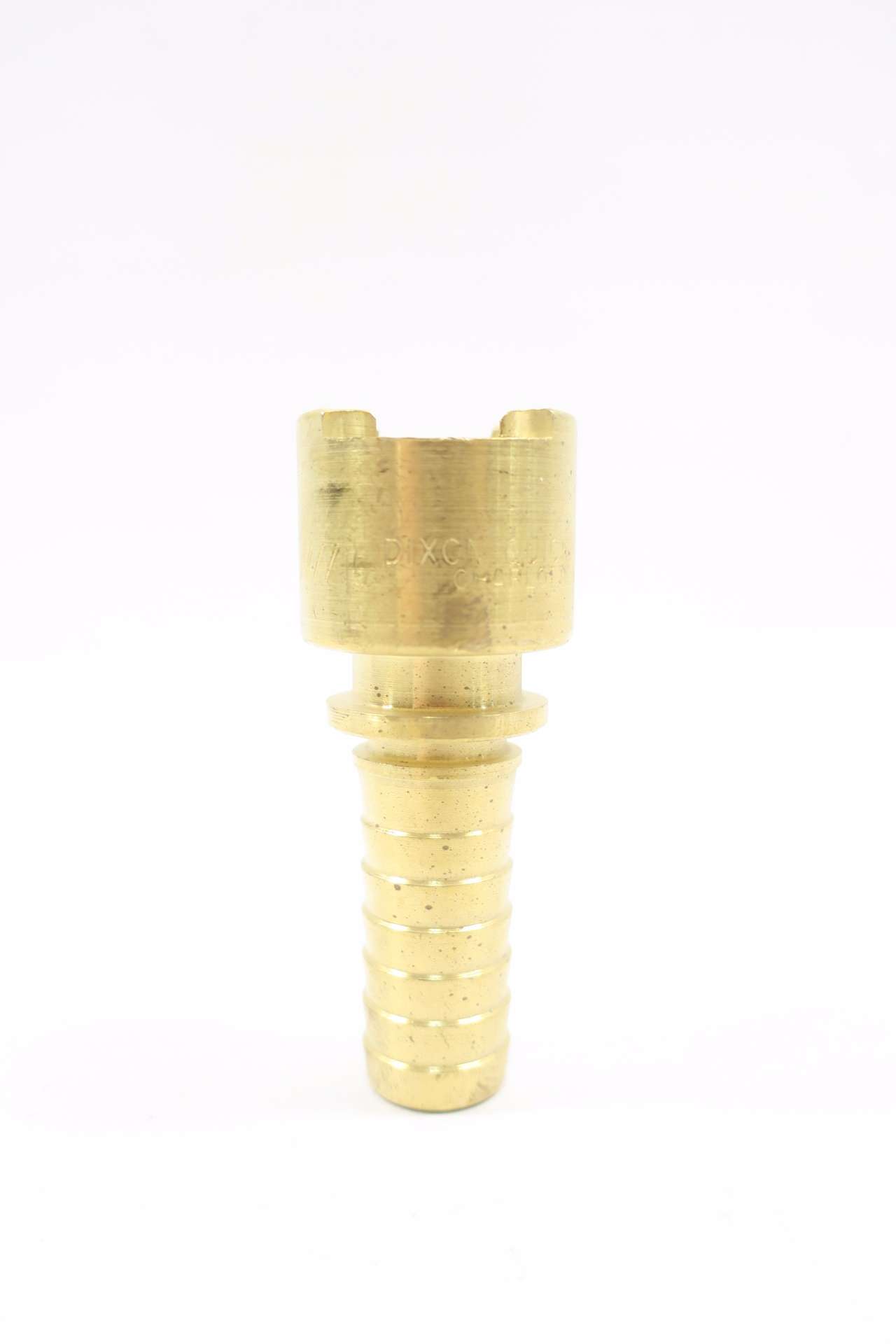

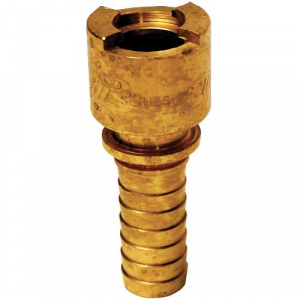

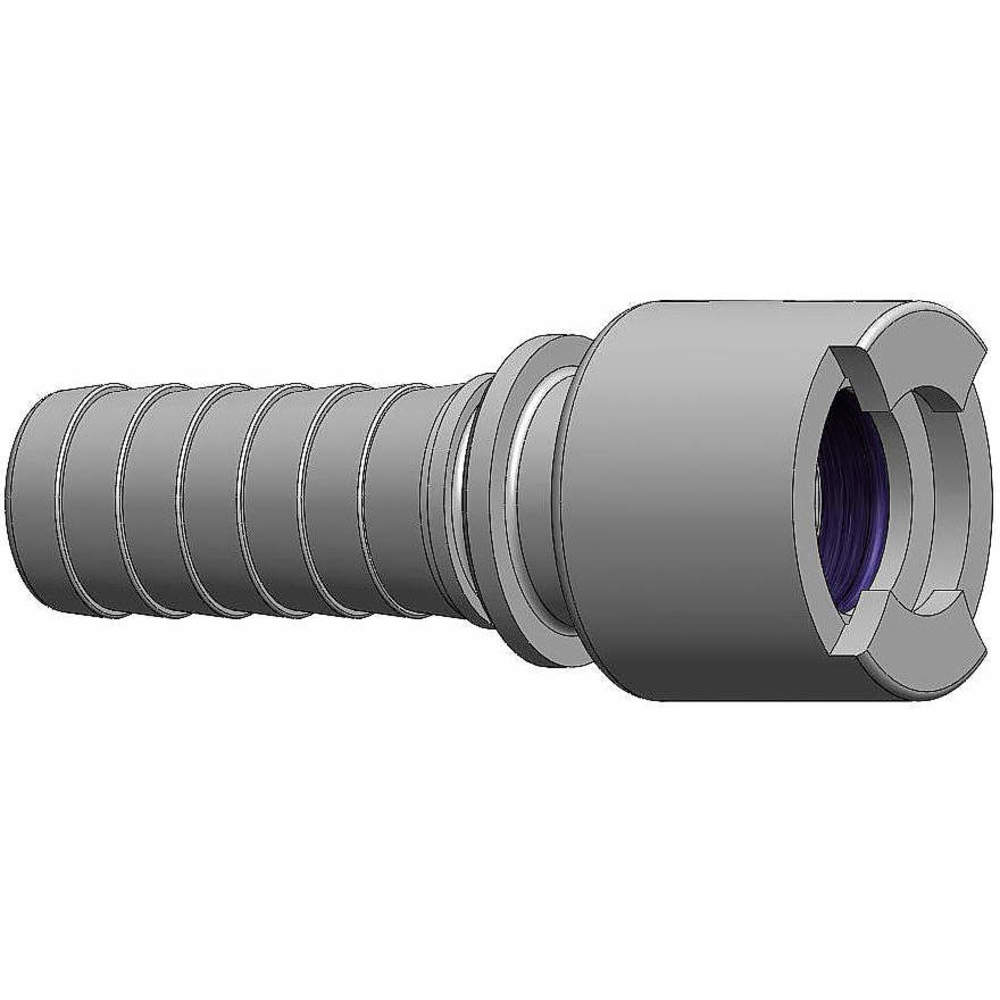

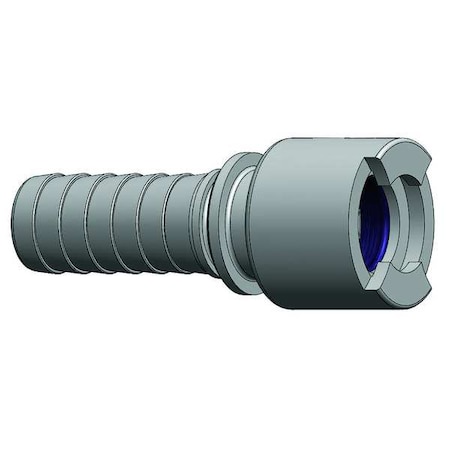

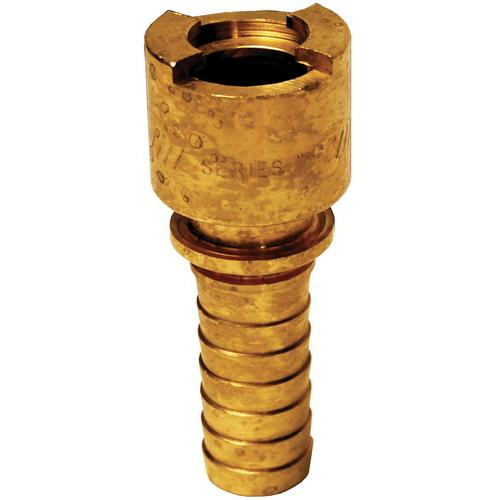

Dixon Bowes Coupler, 3/4" Barb, Brass (4NS6-B)

Brand: Dixon
PartNumber: 4NS6-B
Color: Brass
PackageQuantity: 1
Manufacturer: Dixon Valve & Coupling
Label: Dixon Valve & Coupling

Attributes

Key	Value
Application	On End of Hose or Pipe
Barb Size	3/4 in
Barb Size - Quick Conne.	3/4"
Barbed	Yes
Body Size	1/2", 1/2 in
Body Size - Quick Conne.	1/2 in
Brand	Dixon Valve & Coupling
Brand Name	DIXON?
Colour	Yellow
Connection	Hose Barb
Connection Type	Hose Barb
Construction	Machined components are.
Coupling Component	Plug
Coupling Locking Type	Push-to-Connect
Coupling Size	1/2 in
Description:	DIX-LOCK COUP, 3/4 BARB.
Dimensions	1.33 in OD
End Style	Quick-Connect x Standar.
Finish/Coating	Zinc Plated
Fitting Type	Male Hose Barb
Fitting/Connector Type	Coupler
For Hose I.D.	3/4 in
For Use With	Bowes Style
Height (in)	1.33
Hose Fitting Gender	Male
Hose Fitting Size	3/4 in
Hose I.D.	3/4 in
Hose ID	3/4"
Includes Valve	No
Interchange	Bowes Interchange Bayon.
Interchange Type	Bowes
Interchange Type - Quic.	Bowes
Item	Quick Connect Hose Coup.
Length	3.37", 3.37 in (85.6 mm.
Length (in)	3.37
Locking Type - Quick Co.	Push-to-Connect
Manufacturer	Dixon Valve & Coupling,.
Manufacturer Part Number	4NS6-B
Material	Brass
Material - Quick Connec.	Brass
Max OD	1.33 in (33.8 mm)
Max Temp (?F)	250
Max. Flow	204 cfm
Max. Flow Rate	5,776.64 lpm
Max. Outside Dia.	1 21/64 in
Max. Pressure - Quick C.	300 psi
Max. Working Pressure @.	300 psi
Maximum OD	1.33" (33.8mm)
MFG Part #:	4NS6-B
Min. Temp (?F)	-40
MPN	4NS6-B
Nominal Size	3/4 in
Old Part Number	QB23
Options	Additional seal options.
Overall Length	3 3/8 in
Package Quantity	1/Each
Pressure Rating	300 psi, See Product De.
Product	Couplers
Product Type	Simple product
Quick Connect Air Coupl.	3/4"
Quick Connect Air Coupl.	1/2"
Quick Connect Air Coupl.	Hose Barb
Quick Connect Air Coupl.	Bowes
Quick Connect Air Coupl.	Push-to-Connect
Quick Connect Air Coupl.	Brass
Quick Connect Air Coupl.	300 psi
Quick Connect Air Coupl.	Quick Coupler Body
Quick Connect Air Coupl.	Buna-N
Safety Notes	Operating pressure for .
Seal Material	Nitrile
Seals - Quick Connect A.	Buna-N
Series	Dix-Lock? N-Series Bowe.
Specifications	Rated pressure for conn.
Standard Approvals	RoHS Compliant
Supplier:	Dixon Valve & Coupling .
Temp. Range	-40 Degrees to 250 Deg.
Temperature Range	-40?F to +250?F (-40?C .
Temperature range	-40F to 250F (-40C to 1.
Temperature Rating	-40 to 250?F, -40 to 25.
Type	Bowes Interchange
WARNING!	This product contains a.
Weight	0.460000
Weight Lb	0.4600

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
andersonprocess.com	4NS6-B	16.09	1	12	26	Dixon Valve & Coupling	0.46	16.09 @ 12
Megadepot	4NS6-B	17.26	1	12		Dixon Valve	0.46	17.26 @ 12
usmegastore.com	4NS6-B	17.26	1	12		Dixon Valve	0.46	17.26 @ 12
heavydutydepot.com	4NS6-B	17.26	6	12		Dixon		17.26 @ 12
kscdirect.com	DIX 4NS6-B	18.6	1	12		Dixon Valve & Coupling Co		18.6 @ 12
Zoro	G1300293	20.29	1	12		Dixon Valve & Coupling	11.46	20.29 @ 12
grainger.ca	WWG5CGJ0	21.35321252	1	12		DIXON	0.45	21.35321252 @ 12
MRO Supply	2933599	26.55	2	12		Dixon		26.55 @ 12
hanessupply.com	4NS6-B-10639	32.12	1	12		Dixon Valve & Coupling		32.12 @ 12
Raptor Supplies	AE3CWY	35.464689	1	12		DIXON		35.464689 @ 12
NRI Industrial	D562509	40.77	1	12		DIXON		40.77 @ 12
Wilson	4NS6-B	51.48	1	12		Dixon		51.48 @ 12
