- mpn321470
- brandname: Jet
- manufacturername: Jet

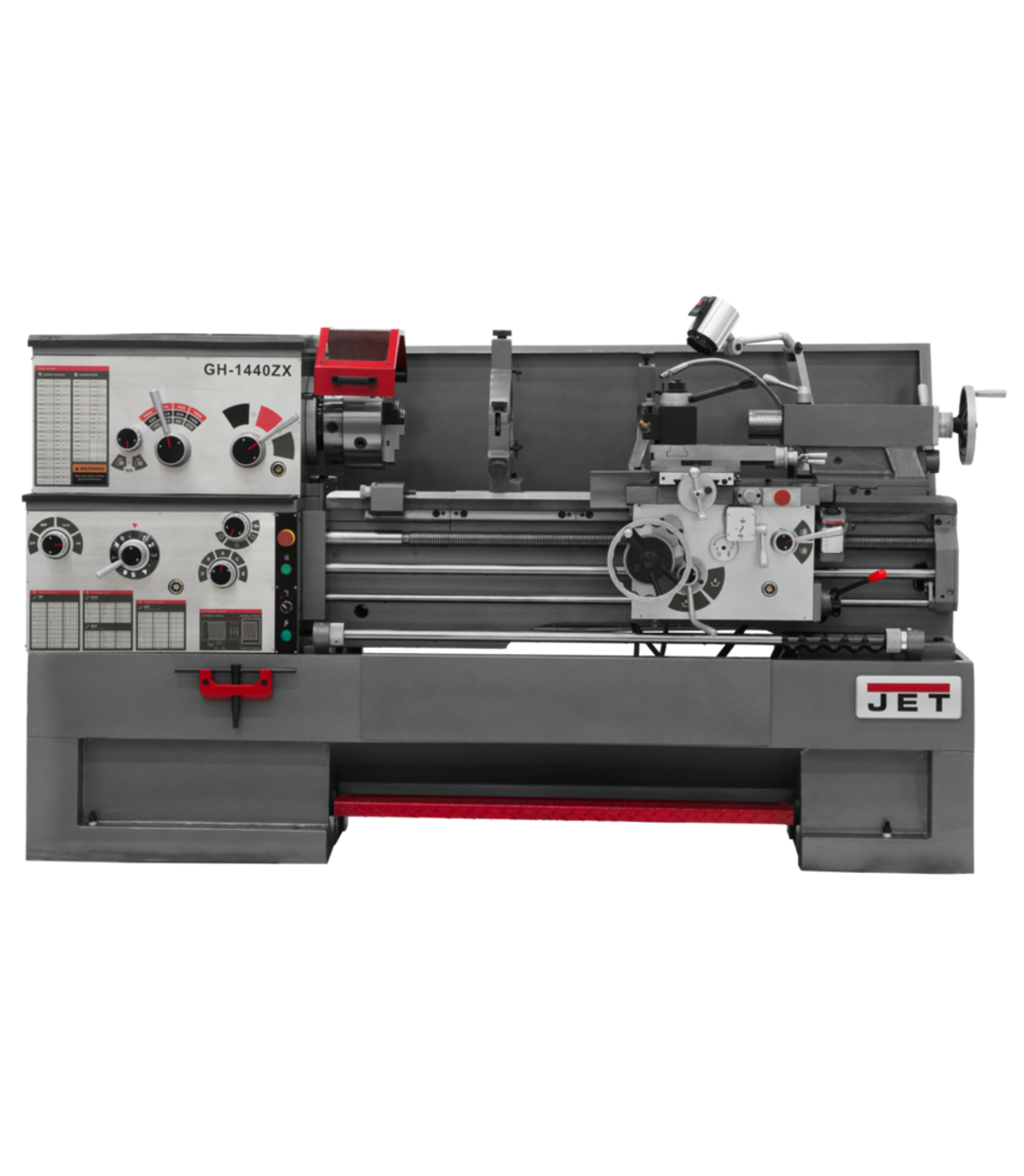

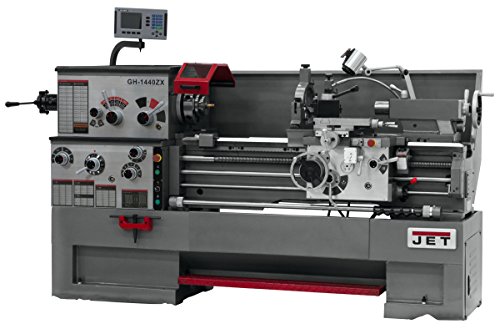

Jet Gh-1440Zx With Newall Dp700 Dro Metalworking Lathe
- Brand: Jet
- PartNumber: 321470
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: JPW Industries Inc.
- Label: JPW Industries Inc.
Attributes
| Key | Value |
|---|
| Bed Width | 13 3/8 in |
| Bed Width (In.) | 13-3/8 |
| Carriage Travel (In.) | 36-9/16 </td, 35 |
| Compound Slide Travel (. | 5-1/8 </td |
| Compound Travel (In.) | 5-1/8 |
| Condition | New |
| Cross Feed Rates | 122 |
| Cross Slide Travel (In.) | 9 </td |
| Cross Travel (In.) | 9 |
| Digital Readout | Newall DP700 </td |
| Distance Between Center. | 40 </td, 40 |
| Drive | Geared Head </td |
| Follow Rest Capacity (I. | 3/8 - 7 </td |
| Gap Length | 12 1/4 in |
| Gap Length (In.) | 12-1/4 |
| Horsepower | 7.5 HP |
| Includes | (5) 12 in Faceplates, 1. |
| Item | Lathe |
| Length of Gap (In.) | 12 </td |
| Longitudinal Feed Rates | 122 |
| Manufacturer | Jet |
| Max Tool Size (In.) | 1 x 1 </td |
| Motor (HP) | 7-1/2 HP, 230/460, 3 Ph. |
| Motor HP | 7-1/2 |
| Motor Phase | 3 Ph |
| Number of Inch Threads | 61 </td |
| Number of Longitudinal . | 122 </td |
| Number of Metric Threads | 24 </td |
| Number of Spindle Speeds | 12 </td |
| Number of Threads (In.) | 61 |
| Number of Threads (mm) | 24 |
| Overall Dimensions (L x. | 96 x 44 x 66 </td |
| Overall Height | 21 1/4 in |
| Overall Length | 97 1/2 in |
| Overall Width | 40 in |
| Phase | Three |
| Prewired (V.) | 230 </td |
| Range of Cross Feeds (I. | .0006 - .0365 </td |
| Range of Inch Threads (. | 1-5/8 - 72 </td |
| Range of Longitudinal F. | .0015 - .0913 </td |
| Range of Metric Threads | .05 - 20 </td |
| Range of Spindle Speeds. | 42 - 1,800 </td |
| Size | 14 x 40 </td |
| SKU | 321470 |
| Spindle Bore (In.) | 3-1/8, 3-1/8 </td |
| Spindle Mount | D1-8 </td |
| Spindle Taper | MT-7 |
| Spindle Taper with Slee. | MT-7 (MT-5) </td |
| Stationary type | Engine - Large Spindle . |
| Steady Rest Capacity (I. | 1/2 - 3-1/2 </td |
| Style (Type) | Engine - Large Spindle . |
| Swing Over Bed (In.) | 14, 14 </td |
| Swing Over Cross Slide . | 7-5/8, 7-5/8 </td |
| Swing Through Gap (In.) | 23-5/8 </td |
| Tailstock Spindle Trave. | 5 </td |
| Taper in Tailstock Spin. | MT-4 </td |
| Thread Range (mm) | 0.05 to 20 |
| Warranty | 2 Year |
| Weight (Lbs.) | 5,187 </td |
| Width of Bed (In.) | 13-3/8 </td |
