MAGNECRAFT W199X-12

mpnW199X-12
brandname: MAGNECRAFT/SCHNEIDER
manufacturername: MAGNECRAFT/SCHNEIDER

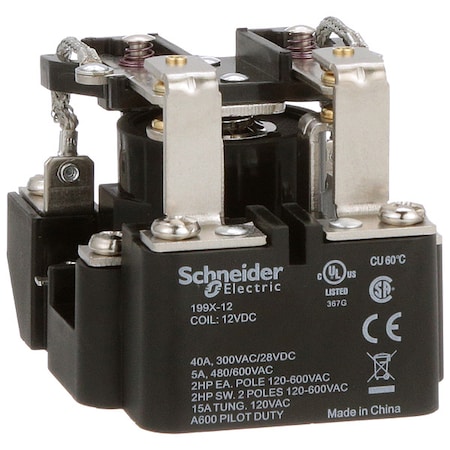

MAGNECRAFT W199X-12 POWER RELAY, DPDT, 12VDC, 40A, PANEL

Brand: MAGNECRAFT
PartNumber: W199X-12
Model: W199X-12
PackageQuantity: 1
Manufacturer: MAGNECRAFT
Label: MAGNECRAFT

Attributes

Key	Value
AC Contact Rating - Rel.	40A @ 300V
Alternate Mfr Part Numb.	P991231E
Approvals	CE, CSA, UL
Bifurcated Contact	No
Body Depth	1.4 in
Body Depth - Relay	3.12 in
Body Height	3.13 in
Body Height - Relay	2.31 in
Body Width	2.5 in
Body Width - Relay	2.5 in
Brand	Schneider Electric
Coil Current	40 A
Coil Resistance	70 Ohms
Coil Type	Power
Coil Voltage	12 VDC
Coil Volts	12V DC
Contact Current Rating	40 A
Contact Form	DPDT
Contact Form - Relay	DPDT
Contact Material	Silver Alloy, Gold Flas.
Contact Termination	PCB
Contact Voltage Rating	300 VAC
Contacts	DPDT
Control Voltage	12
Current Rating	40 A
Current Stock	22
DC Contact Rating - Rel.	40A @ 28V
Dielectric Rating	2200 V (RMS) (Coil to C.
Dimensions	2.31"H, 2.50"W, 3.12"D,.
Diode	No
Electrical Connection -.	Screw
Enclosure	Open Frame
Family Series	Schneider Relays, 199 S.
Features	Riveted Construction
Function	General Purpose
Gross Weight	0.5938 lbs
Height	58.67 mm
Hz - Electrical	50/60 Hz
In-stock	440
International Shipping	No
Item	Open Power Relay
Item - Relay	Open Power Relay
Item Number	199X-12
Lead Time	Expected to ship in 1-2.
Length	79.2 mm
Manufacturer	Schneider
Manufacturer Part Number	P991231EM
Max Current	40 A
Maximum Operating Tempe.	60 ?C
Mechanical Latch	No
Minimum Operating Tempe.	-40 ?C
Mounting	Surface, Panel
Mounting - Relay	Surface
Mounting Style	Chassis
Mounting Type	Panel Mount
Mpn	199X-12
Net Weight	0.5913 lbs
Nominal Coil Voltage	12 VDC
Number of Electrical Co.	8
Number of Pins - Relay	8
Overall Depth	2.31 in
Overall Height - Relay	2.31 in
Part # Aliases	199X-12
Pins	8
Power Consumption	10 VA/4 W
Power Consumption - Rel.	10.0 W
Primary Type	Power Relays
Product Categories	General Purpose / Indus.
Product Header	199 Series Open Style P.
Product Series	199
Published Coil Voltage	12 VDC
Push-to-Test	No
Rating @ 220/240/277 VAC	40 A
Rating @ 24/28/30 VDC	40 A
Relay Type	Electromechanical
RoHS	Yes
RoHs Status	Lead free/RoHS Compliant
Safety Guided	No
Series	199 Series, W199
SKU	ZO-G0658217
Standards	UL ; CSA ; CE
Status Indicator	No
SubCategory	Electrical
Switching Voltage	600 V
Termination	Screw Terminals, Screw
Type	Power Relays
UPC	689205968836
Voltage Rating	277 V
Width	63.5 mm
