Molex / Waldom 39-29-5023

B00GQQBG4Q

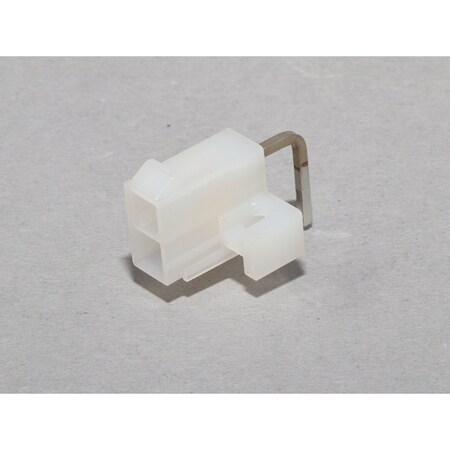

Molex / Waldom 39-29-5023 Connector Power

Molex / Waldom 39-29-5023 Connector Powerzoom

Attributes

Key Value
ApplicationsGeneral Purpose, Indust.
Base Product Number003929
CategoryConnectors, Interconnec.
ColorNatural
Connector TypeHeader
Contact FinishGold Plated
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thicknes.30.0?in (0.76?m)
Contact Finish Thicknes.100.0?in (2.54?m)
Contact Length - Mating-
Contact Length - Post0.142" (3.60mm)
Contact MaterialBrass
Contact Plating Thickne.0.762 ?m
Contact ShapeSquare
Contact TypeMale Pin
Current Rating13 A
Current Rating (Amps)-
DescriptionCONN HEADER R/A 2POS
Detailed DescriptionConnector Header Throug.
Digi-Key Part NumberWM3920-ND
Family NameMini-Fit Jr.
Fastening TypeLocking Ramp
FeaturesMounting Flange
Flammability RatingUL 94V-2
Hole Center to Center4.2 mm
Ingress Protection-
Insulation ColorNatural
Insulation Height0.378" (9.60mm)
Insulation MaterialPolyamide (PA66), Nylon.
ManufacturerMolex
Manufacturer Product Nu.0039295023
Manufacturer Standard L.29 Weeks
Mated Stacking Heights-
MaterialNylon
Material Flammability R.UL94 V-2
Max. Temp.260?C
Max. Voltage600V
MfrMolex
Mounting TypeThrough Hole, Right Ang.
Number of Circuits2
Number of Contacts2
Number of Positions2
Number of Positions Loa.All
Number of Rows2
Operating Temperature-
Overall Contact Length-
PackageBulk
Package Quantity1
Pitch - Mating-
Plating MaterialGold
Product StatusActive
Row Spacing - Mating0.165" (4.20mm)
SeriesMini-Fit Jr 5569, 5569 .
ShroudingShrouded - 4 Wall
StandardsCSA Certified; UL E29179
StyleBoard to Cable/Wire
Terminal FinishTin Plated
Terminal TypeThrough Hole
TerminationSolder
Voltage Rating-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com39-29-50230.5813245MOLEX / WALDOM0.58 @ 50
WaldomMOLEX 39-29-50230.63856399MOLEX0.63 @ 85
Power and Signal Group00392950230.6778480050Molex0.6778 @ 4800
thumbzoomjensentools.com101884370.8414381Molex0.84 @ 50
thumbzoomNEP Electronics39-29-50230.8676854381Molex0.8676 @ 85
us.rs-online.com714567601.1386150Molex Incorporated1.1386 @ 50
Mouser538-39-29-50231.161198Molex1.16 @ 50
thumbzoomNewark01AH83251.191597MOLEX1.19 @ 50
thumbzoomDigi-Key3560341.27912187Molex1.279 @ 50
Arrow39-29-50231.50613600Molex1.506 @ 50
thumbzoomRadwell39-29-50232.25480050MOLEX2.25 @ 4800
thumbzoomZoroG90044252592.658550Molex92.65 @ 85
