Molex 15-91-2045

B00MEL3RCG

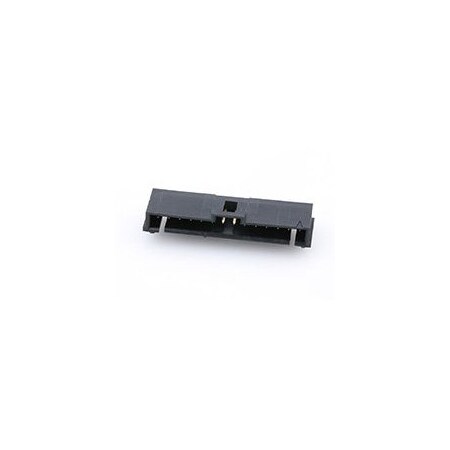

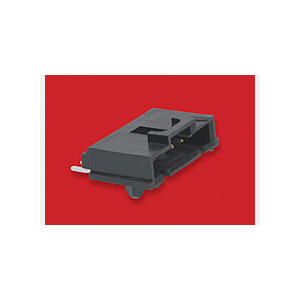

Molex 15-91-2045 (1 pc) SL SMT RA HDR 15SAu 4Ckt

Molex 15-91-2045 (1 pc) SL SMT RA HDR 15SAu 4Cktzoom

Attributes

Key Value
Alternate Part No.538-15-91-2045
ApplicationsAutomotive, General Pur.
Base Product Number001591
BrandMolex
CategoryConnectors, Interconnec.
ColorBlack
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thicknes.15.0?in (0.38?m)
Contact Finish Thicknes.74.8?in (1.90?m)
Contact Length - Mating0.240" (6.10mm)
Contact Length - Post-
Contact MaterialPhosphor Bronze
Contact PlatingGold
Contact ShapeSquare
Contact TypeMale Pin
Current Rating3 A
Current Rating (Amps)-
DescriptionCONN HEADER SMD R/A 4PO.
Detailed DescriptionConnector Header Surfac.
Digi-Key Part NumberWM1342-ND
Family NameSL
Fastening TypeLatch Holder
FeaturesBoard Guide
Housing MaterialThermoplastic
Ingress Protection-
Insulation ColorBlack
Insulation Height0.215" (5.45mm)
Insulation MaterialPolyester, Glass Filled
ManufacturerMolex
Manufacturer Part No.15-91-2045
Manufacturer Product Nu.0015912045
Manufacturer Standard L.13 Weeks
Mated Stacking Heights-
Material Flammability R.UL94 V-0
MfrMolex
Mounting AngleRight
Mounting TypeSurface Mount, Right An.
Number of Circuits4
Number of Positions4
Number of Positions Loa.All
Number of Rows1
Operating Temperature-
Overall Contact Length-
PackageTube
Package Quantity1
PackagingTube
Part # Aliases0015912045 70634-0038
Pitch2.54 mm
Pitch - Mating0.100" (2.54mm)
Plating MaterialGold
Product CategoryHeaders & Wire Housings
Product StatusActive
Product TypeHeaders
Row Spacing - Mating-
Series70634, SL 70634, 70634 .
ShroudingShrouded - 4 Wall
StyleBoard to Cable/Wire
TerminationSolder
Termination StyleSMD
TradenameSL
TypeShrouded
Voltage Rating250 V, -

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Sager Electronics00159120451.1314809Molex1.13 @ 1
Power and Signal Group00159120451.2875114077Molex1.2875 @ 1140
Onlinecomponents.com15-91-20451.5611618MOLEX / WALDOM1.56 @ 1
us.rs-online.com714533061.631100Molex Incorporated1.63 @ 1
thumbzoomjensentools.com101523862.39177Molex2.39 @ 1
Arrow15-91-20453.01114838Molex3.011 @ 1
RS Delivers178-96543.1068177Molex3.1068 @ 1
thumbzoomNewark57R83013.26114077MOLEX3.26 @ 1140
TMEMX-15-91-20453.28177MOLEX3.28 @ 1
thumbzoomDigi-Key5314493.8517411Molex3.85 @ 1
thumbzoomswatee.com15-91-20455.3711237Molex5.37 @ 1
AmazonTPB07QQG5JMJ63.11771Molex / Waldom63.1 @ 1
thumbzoomZoroG2076940112.13877Molex112.1 @ 38
