Sealmaster EMP-47

B008FD33MG

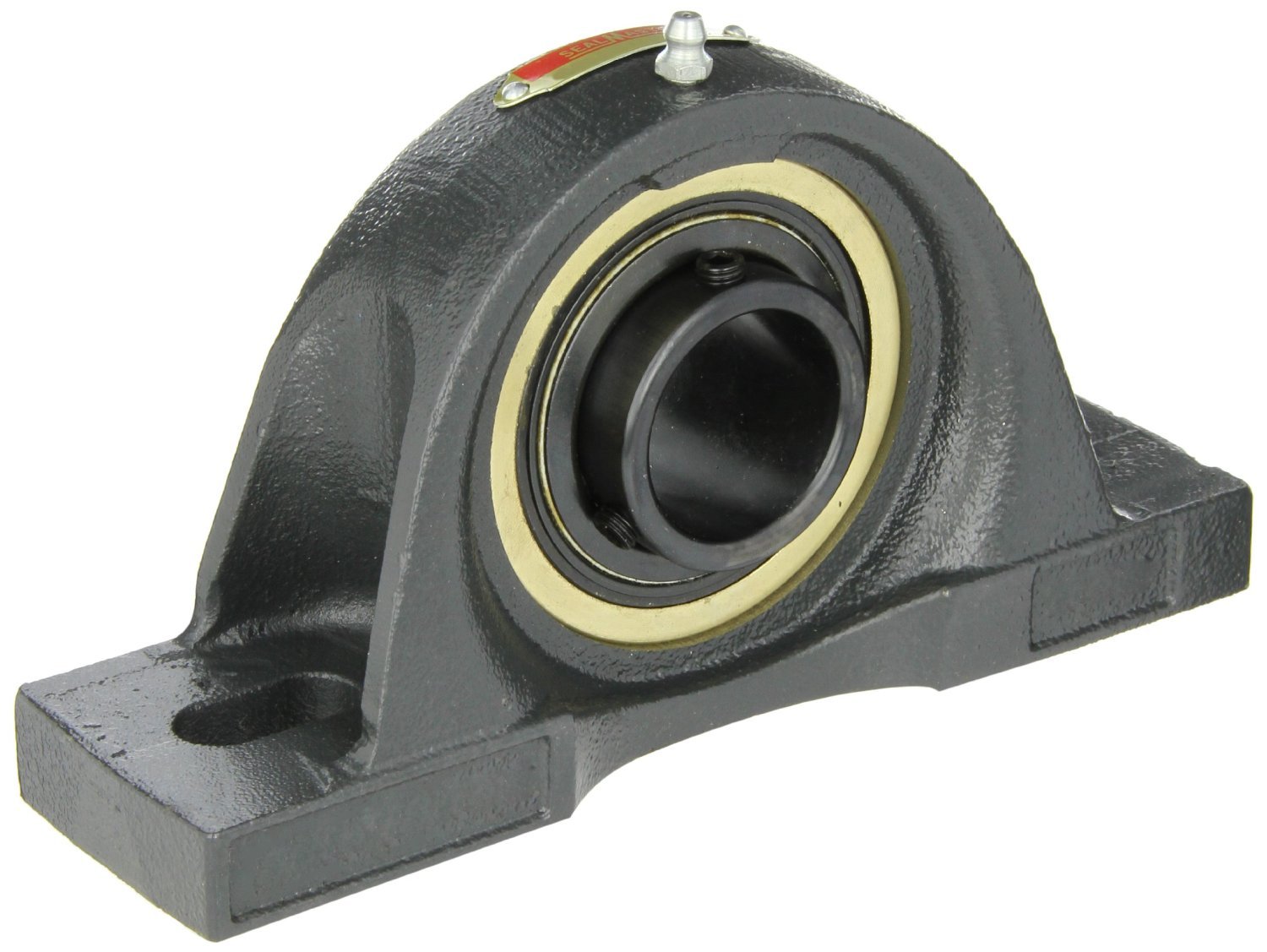

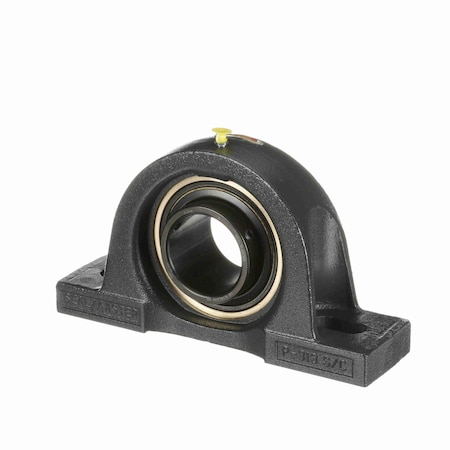

Sealmaster EMP-47 Pillow Block Ball Bearing, Expansion Type, Medium-Duty, Regreasable, Setscrew Locking Collar, Felt Seals, Cast Iron Housing, 2-15/16" Bore, 3-1/2" Base to Center Height, 9" Bolt Hole Spacing Width, ?2 degrees Misalignment Angle

Sealmaster EMP-47 Pillow Block Ball Bearing, Expansion Type, Medium-Duty, Regreasable, Setscrew Locking Collar, Felt Seals, Cast Iron Housing, 2-15/16" Bore, 3-1/2" Base to Center Height, 9" Bolt Hole Spacing Width, ?2 degrees Misalignment Anglezoom

Attributes

Key Value
Actual Bolt Center to C.0 Inch | 0Millimeter
base to bore centerline:3.5000 in
Base to Center Height3.5 Inch | 88.9 Millime.
base width:3.5000 in
bolt center-to-center l.7.8750 to 10.1250 in
bolt size:.8750 in
Bolt Spacing Maximum10.125 Inch | 257.175Mi.
Bolt Spacing Minimum7.875 Inch | 200.025Mil.
bore diameter:2.9375 in
bore type:Round
BrandSEALMASTER
CategoryPillow Block Bearings
Country of Origin (subj.United States
Duty SeriesMedium
duty type:Medium Duty
Estimated Weight29.92
Expansion / Non-expansi.Expansion
expansion type:Expansion Bearing (Floa.
finish/coating:Uncoated
Global Part Number GPN6124
Gross Weight0 lbs
Harmonized Tariff Code8483.20.40.40
Housing Configuration1 Piece Solid
Housing MaterialCast Iron
housing material:Cast Iron
Housing Style2 Bolt Pillow Block
Inch - MetricInch
Insert MaterialCast Steel/Black Oxide
Insert Part NumberAR-2-215
Length Thru Bore3.063 Inch | 77.8 Milli.
Locking DeviceSetscrew
locking device:Set Screw
lubrication type:Lubrication Fitting
ManufacturerSEALMASTER
manufacturer catalog nu.701908
Manufacturer NameREGAL BELOIT
Mounting Bolts7/8 Inch
Mounting MethodSet Screw
mounting:Two-Bolt Base
Nominal Bolt Center to .9 Inch | 229 Millimeter
Number of Mounting Holes2
operating temperature r.Max 250
Other FeaturesSingle Row | Medium Dut.
overall height:7.2500 in
overall length:13.0000 in
overall width:3.2500 in
Part NumberEMP-47
price$ 912.12 / each
RelubricatableYes
replacement bearing:AR-2-215
Replacement InsertAR-2-215
Seal TypeStandard Felt Seal
seal type:Felt Seal
SealsFelt Labyrinth
series:EMP
Shaft Diameter (in)2.9375
titleEMP-47
TypeTwo Bolt Pillow Block
UNSPSC31171511
UPC Code662461014196
Weight / kgm13.94
Weight / LBS30.7

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomRadwellEMP-47716.51In StockSEALMASTER29.5716.5 @ 1
thumbzoomAmazonB008FD33MG746.321In StockSealmaster746.32 @ 1
thumbzoomLily BearingEMP-47775.31In StockSEALMASTER30.668775.3 @ 1
thumbzoomMRO Supply2257602908.321In StockSealMaster908.32 @ 1
thumbzoomGalcoEMP-47-SMST1038.091In StockSealmaster1038.09 @ 1
thumbzoommotorsandcontrol.comEMP-471038.091In StockSealmaster29.921038.09 @ 1
us.rs-online.com721151061114.441In StockSealmaster1114.44 @ 1
thumbzoomPurvisEMP-471212.341In StockSealmaster1212.34 @ 1
thumbzoomZoroG50032001254.221In Stock13Sealmaster1254.22 @ 1
thumbzoommotionindustries.com005600451322.721In StockSealmaster1322.72 @ 1
