- mpnXCMD2124M12
- brandname: Telemecanique Sensors
- manufacturername: Telemecanique Sensors

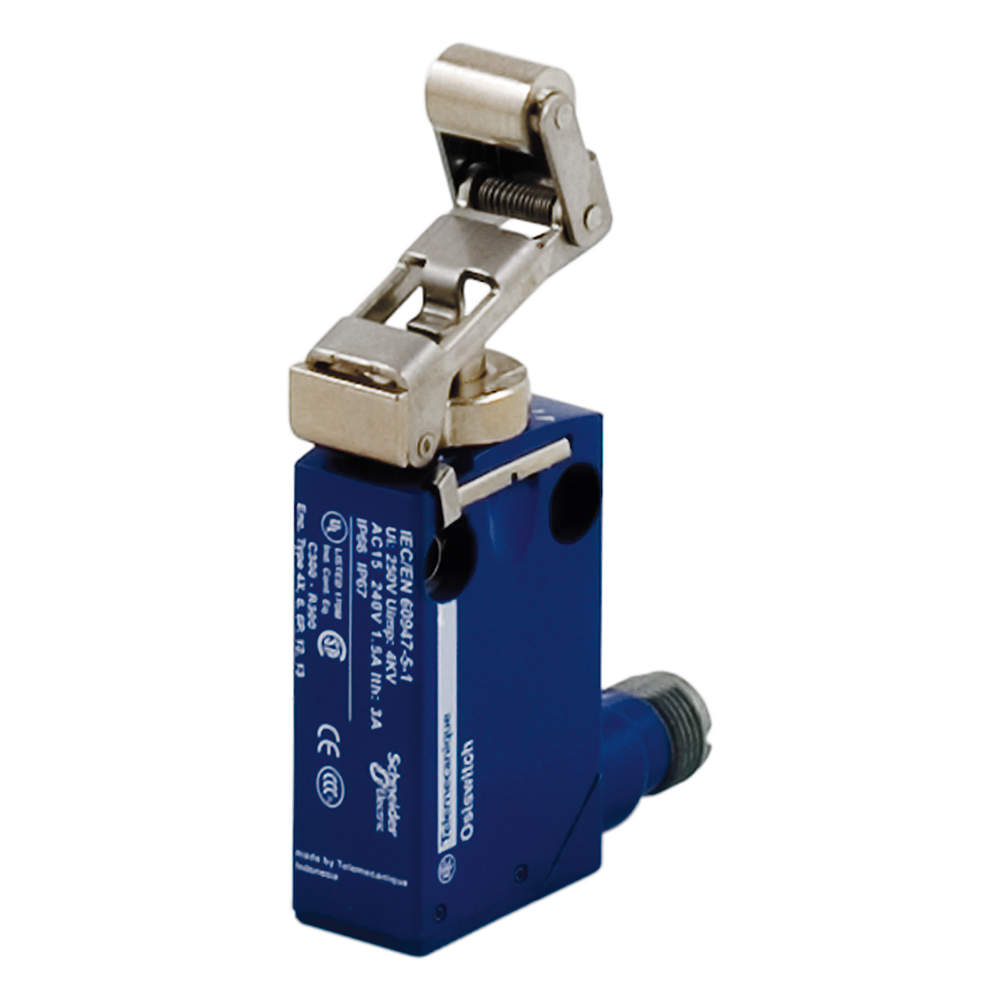

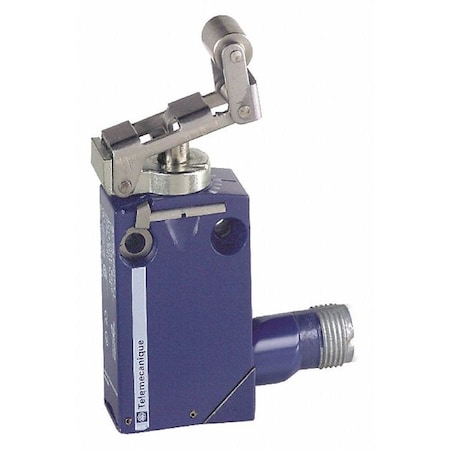

Telemecanique XCMD OsiSense XC Standard Limit Switch, 1 NO and 1 NC Snap-Action Silver Contacts, Retractable Steel Roller, 4-Pin M12 Male Connector, Metal Body
- Brand: TELEMECANIQUE SENSORS
- PartNumber: XCMD2124M12
- Model: XCMD2124M12
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Schneider Electric
- Label: Schneider Electric
Attributes
| Key | Value |
|---|
| AC Contact Rating | 3A @ 240V |
| AC Contact Rating - Lim. | 3A @ 240V |
| AC contacts rating @R | 1.5A / 240V AC |
| Actuation | Horizontal |
| Actuator Length | 0.74" |
| Actuator Length - Limit. | 0.74 in |
| Actuator Location - Lim. | Top |
| Actuator Style - Limit . | Plunger, Roller Lever |
| Actuator Type | Roller Lever |
| Arm Material | metal |
| Basic Actuator Style - . | Plunger |
| Body Depth - Limit Swit. | 0.63 in |
| Body dimensions | 30x50x16mm |
| Body Height - Limit Swi. | 1.97 in |
| Body material | metal |
| Body Material | Zinc Alloy, Zinc |
| Body Style (Limit Switc. | Miniature |
| Body Style - Limit Swit. | Miniature |
| Body Width - Limit Swit. | 1.18 in |
| Boot Sealed Actuator - . | No |
| Connection | connector M12 |
| Contact current max. | 6A |
| Contact Form | SPST-NO ; SPST-NC |
| Contact Form- Switches | 1NC/1NO |
| Contact Style | Snap Action |
| Current Rating | 4 A |
| DC Contact Rating - Lim. | 3A @ 240V |
| DC contacts rating @R | 1.5A / 24V DC |
| Depth | 0.63" |
| Electrical Connection | M12 4-Pin Connector |
| Height | 1.97" |
| IP Rating | 68 |
| IP rating | IP66 |
| Item | limit switch |
| Kind of actuator | lever R 45mm, metal rol. |
| Limit Switch Style | General Purpose Limit S. |
| Manufacturer | TELEMECANIQUE SENSORS |
| Manufacturer series | XCMD |
| Mounting - Limit Switch | Surface |
| Mounting Hole - Limit S. | (2) 0.16 in dia |
| Mounting Hole Pattern -. | 2 Hole Horizontal |
| Mounting Hole Spacing -. | 0.79 in |
| Mounting holes pitch | 20mm |
| Movement | Horizontal, One Way |
| NEMA Rating | 12, 13, 1, 2, 4, 6P, 6 |
| Number of mounting holes | 2 |
| Number of pins | 4 |
| Operating Force | 0.6 lb |
| Operating Temp. Range | -13 Degrees to 158 Deg. |
| Operating temperature | -25...70?C |
| Output configuration | SPDT |
| Promotion Restriction | Not eligible for promot. |
| Roller Dia. | 0.35 in |
| Roller Dimension | 0.35" ? 0.47" |
| Roller Material | Steel, Thermoplastic |
| Roller Width | 0.47 in |
| Series | XCMD Series, XCMD |
| Standards | CE, CSA, UL |
| Stem Thread - Limit Swi. | No Stem |
| Switched voltage | max. 250V AC, |
| Termination | Screw |
| Travel | 1.18 in |
| Type | Limit |
| Type of sensor | limit switch |
| UPC Code | 785901973799 |
| Vibration Resistance | 5G |
| Voltage Rating | 240 V |
| Width | 1.18" |
| Wiring Entry | Connector |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| TME | XCMD2124M12 | 85.06 | 1 | In Stock | | TELEMECANIQUE SENSORS | | 85.06 @ 1 |
 | sustainablesupply.com | C2818310 | 106.9 | 1 | In Stock | | Telemecanique Sensors | 0.23 | 106.9 @ 1 |
 | Newark | 93R4464 | 109.3 | 1 | In Stock | | TELEMECANIQUE SENSORS | | 109.3 @ 1 |
| RS Delivers | 814-7790 | 126.78 | 1 | In Stock | | Telemecanique Sensors | | 126.78 @ 1 |
 | Zoro | G1988427 | 159.99 | 1 | In Stock | | Telemecanique Sensors | 0.23 | 159.99 @ 1 |
| Grainger | 5WJJ1 | 168.41 | 1 | In Stock | | TELEMECANIQUE SENSORS | | 168.41 @ 1 |
 | National Supply Network | 59759662 | 204.49 | 1 | In Stock | | Telemecanique Sensors | | 204.49 @ 1 |
| us.rs-online.com | 70007934 | 230.73 | 1 | In Stock | | Telemecanique Sensors | | 230.73 @ 1 |
 | bscsource.com | XCMD2124M12 | 234.29 | 1 | In Stock | | Telemecanique Sensors | | 234.29 @ 1 |
 | Raptor Supplies | AG7DZQ | 267.761754 | 1 | In Stock | | TELEMECANIQUE SENSORS | | 267.761754 @ 1 |
