- mpnP22519-UNC10
- brandname: Walter Prototyp
- manufacturername: Walter Prototyp

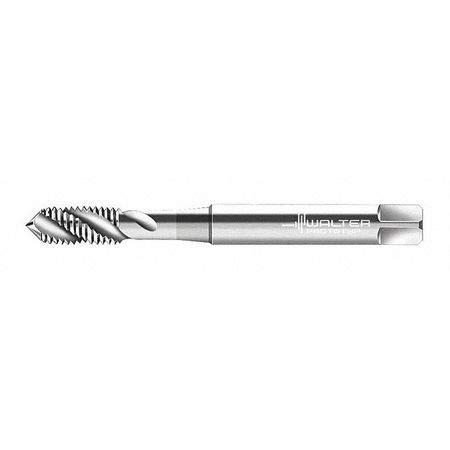

Spiral Flute Tap,#10-24,HSS
- Brand: WALTER PROTOTYP
- PartNumber: P22519-UNC10
- Manufacturer: WALTER PROTOTYP
- Label: WALTER PROTOTYP
Attributes
| Key | Value |
|---|
| 55% Thread Drill Size | #21 |
| 65% Thread Drill Size | #23 |
| 75% Thread Drill Size | #25 |
| Class of Fit | 2B |
| Coolant Fed | Non-Coolant Through |
| Country of Origin (subj. | Germany |
| Cutting Direction - Mac. | Right Hand |
| Drill Bit Size | 0.1540 in |
| Extended Neck | Yes |
| Helix Angle | 45 Degrees |
| Item | Spiral Flute Tap |
| List Number | P22519 |
| Measurement System | Pipe |
| Number of Flutes | 3 |
| Number of Pieces | 1 |
| Overall Length | 70.00 mm, 2-13/16" |
| Pitch Diameter Limit | 2B |
| Primary Material Applic. | Steel |
| Primary Material Applic. | P |
| Secondary Material Appl. | Aluminum, Brass, Bronze. |
| Secondary Material Appl. | N, O |
| Series | Paradur X?pert P |
| Shank Dia. | 6.00 mm, 1/4" |
| Shank Length | 45.00 mm |
| Shank Type - Machining | Straight |
| Spiral Direction | Right Hand |
| Square Size | 4.90mm |
| Standards | DIN 2184-1 |
| Tap Chamfer | Plug, Modified Bottom, . |
| Tap Dimension Type | Inch |
| Tap Finish | Uncoated, Bright (Uncoa. |
| Tap Grouping | Individual |
| Tap Material | High Speed Steel |
| Tap Shank Standard | DIN 2184-1 |
| Tap Size | #10 |
| Tap Style | Spiral Flute |
| Tap Thread Size | #10-24 |
| Tap Thread Type | UNC |
| Thread Direction | Right Hand |
| Thread Length | 5/16", 8.00 mm |
| Thread Limit | H3, H4 |
| Thread Limit / Class of. | H3, H4 / 2B, H3 / 2B, H. |
| Thread Size | #10-24 |
| Thread Standard | UNC |
| Threads per Inch | 24 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G2901628 | 38.29 | 1 | In Stock | | Walter Prototyp | 0.01 | 38.29 @ 1 |
| Grainger | 428Z54 | 40.15 | 1 | In Stock | | WALTER PROTOTYP | | 40.15 @ 1 |
