- mpnBL-1800F-1000
- brandname: Belden
- manufacturername: Belden

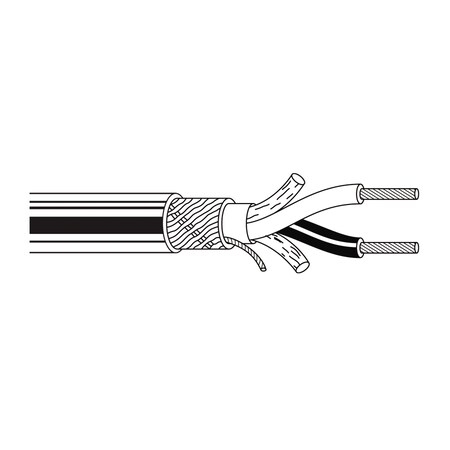

Belden 1800F Multi-Conductor Single-Pair Cable
- Brand: Belden
- PartNumber: 1800F B591000
- Model: 1800F B591000
- PackageQuantity: 1
- Binding: Electronics
- Manufacturer: Belden
- Label: Belden
Attributes
| Key | Value |
|---|
| Alternate Part No. | 566-1800F-1000 |
| Application | For digital audio |
| Brand | Belden Wire & Cable |
| Cable Type | Audio, Non-Plenum |
| Color | Black |
| Conductor Material | Bare Copper, Bare Coppe. |
| Conductor Size | 24 AWG |
| Configuration | 1 Pair |
| Country of Origin | US - United States |
| Delivery Restrictions | Due to size or weight o. |
| Diameter | 0.211 in |
| ECCN | EAR99 |
| Features | AES, EBU rated |
| Fire Rating - Data Cable | Riser |
| Indoor / Outdoor | Indoor |
| Insulated / Uninsulated | Insulated |
| Insulation Material | Polyethylene, Foam High. |
| Jacket Color | Matte Black, Black |
| Jacket Colour | Black |
| Jacket Material | PVC, Polyvinyl Chloride. |
| Length | 1000 ft, 1000 ft. |
| Manufacturer | Belden Wire & Cable |
| Manufacturer Part No. | 1800F B591000 |
| NEC Article and Type | CL2R |
| No. of Conductors | 1 |
| Number of Conductor Pai. | 1 |
| Number of Conductors | 2 |
| Number of Pairs | 1, 2 |
| Operating Temperature | -20 to +60 C |
| Outer Diameter | 0.211 in. |
| Outside Diameter | 3.33 mm |
| Package Quantity | 1 |
| Packaging | Coil |
| Plenum / Riser Rated | Riser Rated |
| Product Category | Multi-Paired Cables |
| Product Header | AES/EBU Digital Audio C. |
| Series | 1800F, 1800F Series |
| Shield Material | Tinned Copper (TC) |
| Shielded | Bare Copper/Tinned Copp. |
| Shielding | Shielded, Braid |
| Standards | UL CL2R ; EU CE, UL 166. |
| Stranding | 42 x 40, 42x40 |
| Temp. Rating | 60?C |
| Temperature, Rating | -20 to 60 C |
| Type | Digital Audio |
| Unit Weight | 11.340 kg |
| UNSPSC | 26121600 |
| Voltage Rating | 300 V |
| Wire Gauge - AWG | 24 |
| Wire Material | Bare Copper |
| Wire Size | 24 AWG |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | pacrad.com | BLD1800F-BLK-1K | 3.12 | 1 | 32 | | Belden | | 3.12 @ 1 |
| Digi-Key | BEL9107-ND | 1439.62 | 1 | 32 | | Belden Inc. | | 1439.62 @ 1 |
 | Markertek | BL-1800F-1000 | 1607.0 | 1 | 32 | | Belden | | 1607.0 @ 1 |
 | Zoro | G1152113 | 1774.99 | 1 | In Stock | | Belden Bav | | 1774.99 @ 1 |
| Graybar | 99892196 | 2254.3024 | 1000 | 32 | | Belden | | 2254.3024 @ 1000 |
| RS Delivers | 413-235 | 2432.16 | 1 | 1 | | Belden | | 2432.16 @ 1 |
| us.rs-online.com | 70005874 | 2638.64 | 1 | 32 | | Belden | | 2638.64 @ 1 |
 | Newark | 06C0437 | 2726.95 | 1 | In Stock | | BELDEN | | 2726.95 @ 1 |
 | swatee.com | 1800F B591000 | 3001.33 | 1 | 11989 | | Belden Wire & Cable | | 3001.33 @ 1 |
