- mpnNF30A
- brandname: Boston Gear
- manufacturername: Boston Gear

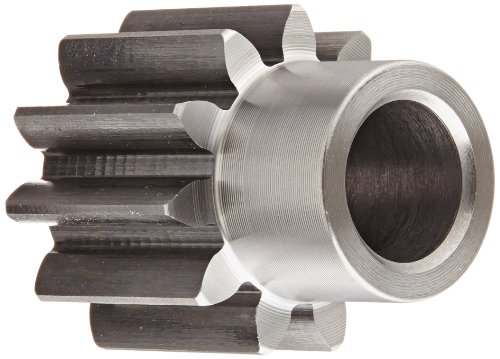

Boston Gear NF30A Spur Gear, 14.5 Pressure Angle, Steel, Inch, 10 Pitch, 0.750" Bore, 3.200" OD, 1.000" Face Width, 30 Teeth
- Brand: Boston Gear
- PartNumber: NF30A
- Model: NF30A
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Boston Gear
- Label: Boston Gear
Attributes
| Key | Value |
|---|
| Agency Compliance | AGMA |
| Bore Dia. (In.) | 0.75 in |
| Bore Diameter | 0.750, 3/4 in, 19.1 |
| Brand | Boston Gear |
| Color | Natural, Silver |
| Compatible Gear Rack Gr. | 1L903, 1L904 |
| Compatible Gear Rack Ma. | L516-6, L517-6 |
| Diametral Pitch | 10 |
| Face Width | 1 in, 1.000, 25.4 |
| Face Width (In.) | 1.0 in |
| For Use With | 1L903, 1L904 |
| Function | Transmitting Motion and. |
| Gear Type | Spur Gear |
| Hub Dia. (In.) | 2.02 in |
| Hub Diameter | 2.02 in, 2.020, 51.3 |
| Hub Projection | 0.88 in |
| Hub Projection (In.) | 0.88 in |
| Hub Width | 22.4, 0.880 |
| International Shipping | No |
| Item | Spur Gear |
| Keyway | None, N |
| Lead Time | Expected to ship in 1-2. |
| Material | Steel |
| Mpn | NF30A |
| Number of Teeth | 30 |
| Outside Dia. (In.) | 3.2 in |
| Outside Diameter | 81.3, 3.2 in, 3.200 |
| Overall Length | 1.88 in |
| Overall Length (In.) | 1.88 in |
| Overall Width | 47.8, 1.880 |
| Pitch | 10 |
| Pitch Dia. (In.) | 3.0 in |
| Pitch Diameter | 3.000, 76.2, 3 in |
| Pressure Angle | 14.5 Degrees |
| Pressure Angle (Deg.) | 14.5 |
| Prop 65 | WARNING: Cancer and Rep. |
| Setscrew | Not Included |
| SKU | ZO-G1476614 |
| Standards | AGMA |
| SubCategory | Power Transmission |
| System of Measurement | Inch |
| Tooth Pitch | 10 |
| UPC | 781711103128 |
| UPC Code | 781711103128 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G1476614 | 65.99 | 1 | 9 | | Boston Gear | 2.7 | 65.99 @ 1 |
 | simsupply.com | ZO-G1476614 | 78.2 | 1 | In Stock | | Boston Gear | | 78.2 @ 1 |
 | sustainablesupply.com | C1660637 | 85.33 | 1 | In Stock | | Boston Gear | 2.7 | 85.33 @ 1 |
 | bscsource.com | NF30A | 89.09 | 1 | In Stock | | Boston Gear | | 89.09 @ 1 |
 | MRO Supply | 35279 | 101.61 | 1 | In Stock | | Boston Gear | | 101.61 @ 1 |
 | National Supply Network | 36682292 | 105.33 | 1 | In Stock | | Boston Gear | | 105.33 @ 1 |
| us.rs-online.com | 71881791 | 109.02 | 1 | 6 | | Boston Gear (Altra) | | 109.02 @ 1 |
| Applied Industrial | 101834152 | 114.59 | 1 | In Stock | | Boston Gear | | 114.59 @ 1 |
| motionindustries.com | 00370225 | 132.89 | 1 | In Stock | | Boston Gear (Altra) | | 132.89 @ 1 |
| reidsupply.com | GE-1030 | 140.96 | 1 | In Stock | | Boston Gear | | 140.96 @ 1 |
| grainger.ca | WWG1L979 | 141.77168598 | 1 | In Stock | | BOSTON GEAR | 2.7 | 141.77168598 @ 1 |
 | Raptor Supplies | AB2CME | 171.446184 | 1 | In Stock | | BOSTON GEAR | | 171.446184 @ 1 |
