Century 9647

mpn9647
brandname: CENTURY
manufacturername: CENTURY

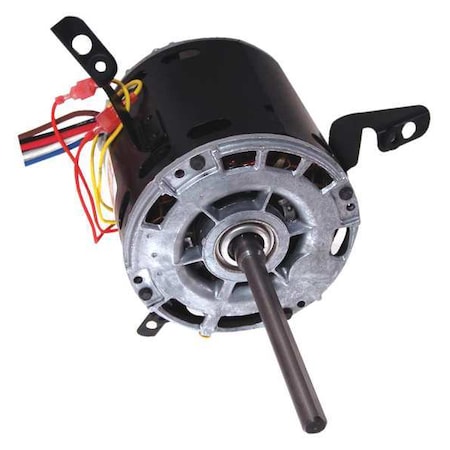

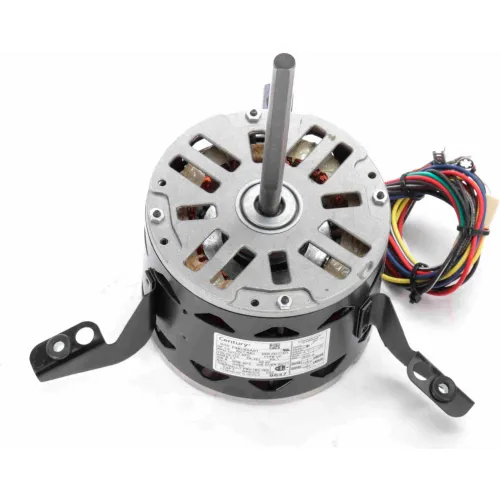

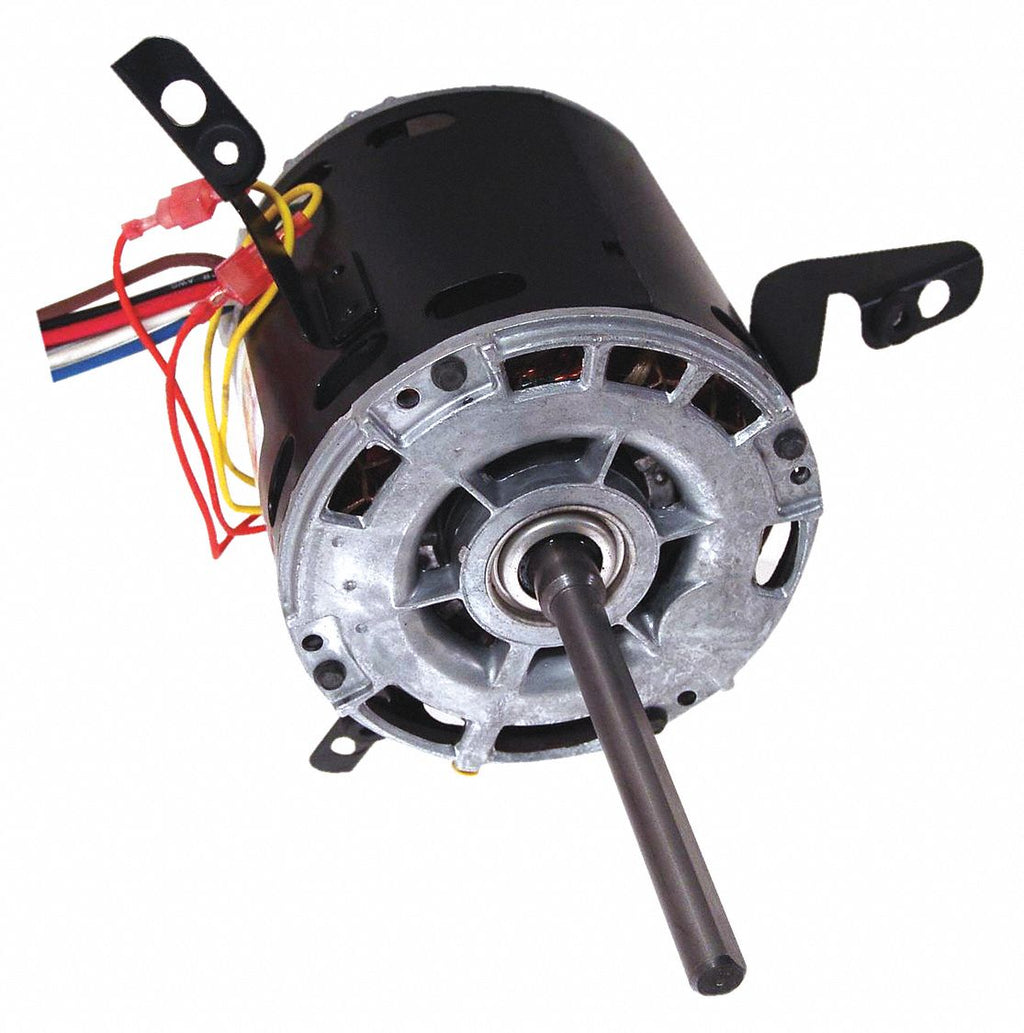

Motor, PSC, 1/6 HP, 1075 RPM, 115V, 48Y, OAO

Brand: Century
PartNumber: 9647
PackageQuantity: 1
Binding: Misc.
Manufacturer: CENTURY
Label: CENTURY

Attributes

Key	Value
9647 is listed in Centu.	A.O. Smith F48U90A01, G.
Amps	2.7
Application	Blowers, Fans and Air C.
Batteries Required?	No
Bearings	Sleeve
Best Sellers Rank	#2,236,158 in Tools & H.
Body Dia.	5 5/8 in
Brand	Century
C-Dimension	9.74 (in.)
Capacitor	5MFD @ 370VAC Required
Capacitor Required	2MDV4
Catalog Number	9647
CE	N
CSA	Y
Current Stock	97
Customer Reviews	5.0 out of 5 stars1 rat.
Date First Available	August 27, 2012
DE Bearing Type	Sleeve
DEM Reference	NOHP
Duty	Air Over
Duty Cycle	Continuous
Electrical Type	Permanent Split Capacit.
Enclosure Type	Open Enclosed, OAO (Ope.
Frame	48Y
Frame Material	Rolled Steel
Frame Type	48Y
Frequency	60
Full Load Amps	2.1
HP	1/6
Hz	60, 60 Hz
Insulation Class	B
International Shipping	No
IP Code	-
Item	Room Air Conditioner Mo.
Item model number	9647
Item Package Quantity	1
Item Weight	10.55 pounds
KVA Code	-
Lead Length	27 in
Lead Time	Expected to ship in 1-2.
Length Less Shaft	4 1/4 in
Manufacturer	Century Electric/AO Smi.
Max Ambient	40?C
Maximum Ambient Tempera.	40? C
Motor Application	HVAC/R
Motor Design	Permanent Split Capacit.
Motor Diameter	5-5/8"
Motor Enclosure Design	Open Air-Over
Motor Mounting Position	Horizontal
Motor Mounting Type	T-Flex
Motor Orientation	Horizontal
Motor Shaft Design	Flat
Motor Sub Application	Room Air Conditioner
Mounting	Flex Bracket
Mounting Type	Flexible Arms
Mpn	9647
Nameplate RPM	1,075
No. of Speeds	3
Number of Speeds	3
ODE Bearing Type	Sleeve
Overall Length	9 3/4 in
Part Number	9647
Phase	1, Single
Product Category	HVAC/R Motors > Fan Co.
Product Dimensions	9.75 x 9.75 x 8.75 inch.
Product Type	PSC (Permanent Split Ca.
Product with faster shi.	true
Rotation	Reversible
RPM	1075
RPM (Nameplate)	1075
RPM (Number of Poles)	6 (901 RPM to 1200 RPM)
RPM Range	1,001-1,100
Service Factor	1
Service Factor (SF)	1.00
Shaft Dia.	1/2 in
Shaft Diameter	1/2 (in.), 1/2"
Shaft Extension	5.5 (in.)
Shaft Length	5-1/2", 5 1/2 in
Shaft Type	Flat
Ship Weight	11 lbs.
Shipping	undefined (Fixed Shippi.
SKU	ZO-G0551266
Speeds	3
Standards	CSA Certified, UL Recog.
SubCategory	Motors/Ac Motors
Thermal Protection	Automatic
Type of Overload Protec.	Automatic
UL	Recognized
UPC	7866740092100
Volts	115

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
Square One	9647	149.94	1	In Stock		CENTURY		149.94 @ 1
AmazonTP	B00BJ8QPBA	158.68	1	In Stock	2	Century Electric Motor		158.68 @ 1
AmazonUNK	B00BJ8QPBA	158.68	1	In Stock		Century Electric Motor		158.68 @ 1
emotorpro.com	9647	165.51	1	In Stock		Century	11.0	165.51 @ 1
National Supply Network	B2776527	176.38	1	In Stock		AO SMITH		176.38 @ 1
hvacdiscountstore.com	CEN--9647	177.0	1	In Stock		CENTURY MOTORS		177.0 @ 1
Global Industrial	WBB2776527	179.95	1	In Stock		Century		179.95 @ 1
Voomi Supply	9647	180.79	1	In Stock		Century Motors		180.79 @ 1
homeessentialsdirect.com	9647	186.93	1	In Stock		Century Electric/AO Smith Motors Co	10.55	186.93 @ 1
sustainablesupply.com	C1561162	189.69	1	In Stock		Century	10.9	189.69 @ 1
midwestapplianceparts.com	9647-AO-P	212.65	1	In Stock		AO Smith		212.65 @ 1
Zoro	G0551266	217.99	1	143		Century	10.9	217.99 @ 1
Dreisilker	CE-RBC-9647	252.01	1	In Stock		Century		252.01 @ 1
simsupply.com	ZO-G0551266	278.19	1	97		Century		278.19 @ 1
