Century 9701

mpn9701
brandname: Century
manufacturername: Century

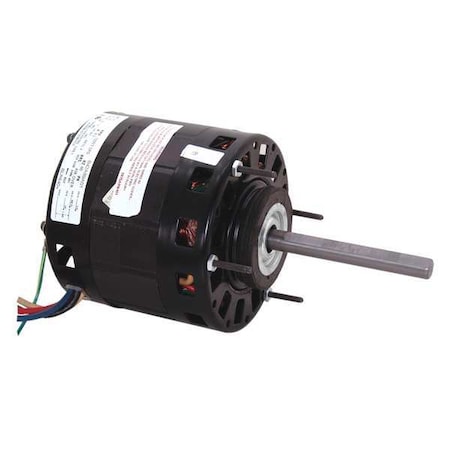

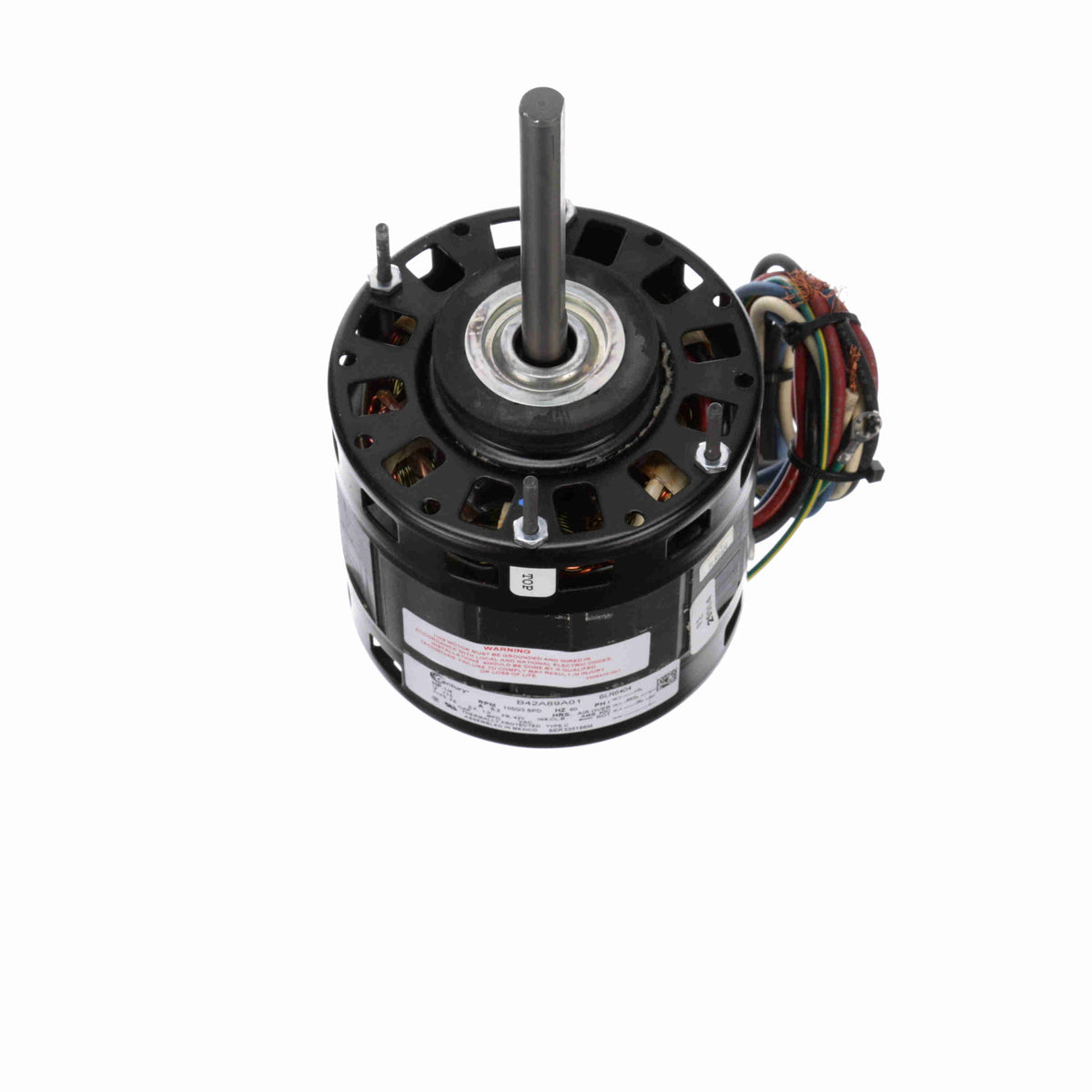

Motor, Sh Pole, 1/6 HP, 1050, 115V, 42Y, OAO

Brand: Century
PartNumber: 9701
Model: 9701
PackageQuantity: 1
Binding: Misc.
Manufacturer: CENTURY
Label: CENTURY

Attributes

Key	Value
9701 is listed in Centu.	A.O. Smith B42A96A01, D.
Amps	6.3
Application	Room Air Conditioners, .
ASIN	B000CG4RWE
Batteries Required?	No
Bearings	Sleeve
Body Dia.	5 in
Bolt Circle Dia.	4 7/16 in
Brand	CENTURY
Capacitor Required	No
Certification	CSA/UL
Country of Origin (subj.	Mexico
Current Stock	15
Duty	Continuous
Duty Cycle	Continuous
Enclosure Type	OAO (Open Air Over)
Frame	42Y
Full Load Amps	6.0
HP	1/6
Hz	60, 60 Hz
Includes	Resilient Mounting Ring
Ins. Class	B
Insulation Class	B
International Shipping	No
Item	Direct Drive Blower Mot.
Item model number	9701
Item Package Quantity	1
Lead Length	26 in
Length Less Shaft	4 1/16 in
Manufacturer	CENTURY
Max. Ambient Temp.	40 Degrees C
Maximum Ambient Tempera.	40? C
Motor Application	HVAC/R
Motor Bearings	Sleeve
Motor Design	Shaded Pole
Motor Diameter	5"
Motor Enclosure Design	Open Air-Over
Motor Mounting Position	Horizontal
Motor Mounting Type	Ring
Motor Service Factor	1
Motor Shaft Design	Flat
Motor Shaft Rotation	CCWLE
Motor Sub Application	Direct Drive Fan/Blower
Motor Thermal Protection	Auto
Mounting	Band/Ring/Stud
Mounting Holes	4
Mounting Stud Location	Shaft End
Mounting Stud Pattern	2-1/4 in x 3-7/8 in
Mpn	9701
Nameplate RPM	1,050
No. of Speeds	3
Number of Shafts	1
Number of Speeds	3
Overall Length	8 9/16 in
Part Number	9701
Phase	1, Single
Product Type	Shaded Pole
Resilient Ring Dia.	2 1/2 in
Ring to Ring Center	4 9/16 in
Rotation	CW Shaft End
RPM	1050
RPM Range	1,001-1,100
Service Factor (SF)	1.00
Shaft Dia.	1/2 in
Shaft Diameter	1/2"
Shaft Length	4-1/2", 4 1/2 in
Ship Weight	12 lbs.
SKU	ZO-G1577913
Standards	CSA Certified, UL Recog.
Stud Quantity	4
Stud Size	#8-32
SubCategory	Motors/Ac Motors
Thermal Protection	Automatic
UNSPSC Code	39120000
UPC	00786674009654
Usable @ 200V	No
Usable @ 208V	No
Voltage	115V AC
Voltage Compatibility	115/208-230V AC, 115/23.
Volts	115
Weight	12 lb

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
Amazon	B000CG4RWE	118.48	1	In Stock		CENTURY		118.48 @ 1
ktool.net	9701	127.21	1	In Stock		Century		127.21 @ 1
Zoro	G1577913	145.87	1	In Stock		Century	10.9	145.87 @ 1
sustainablesupply.com	C2091369	151.94	1	In Stock		Century	15.0	151.94 @ 1
emotorpro.com	9701	155.81	1	In Stock		Century	12.0	155.81 @ 1
simsupply.com	ZO-G1577913	161.34	1	In Stock		Century		161.34 @ 1
industrialstores.com	9701	177.18	1	In Stock	19	Century Motors by Regal Beloit		177.18 @ 1
midwestapplianceparts.com	9701-AO-P	181.36	1	In Stock		AO Smith		181.36 @ 1
