AO Smith OCB6427

B001OMF6G6

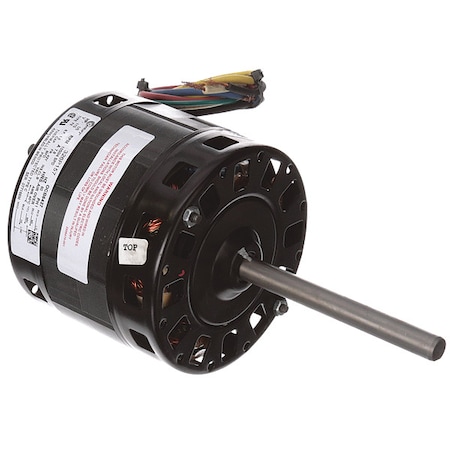

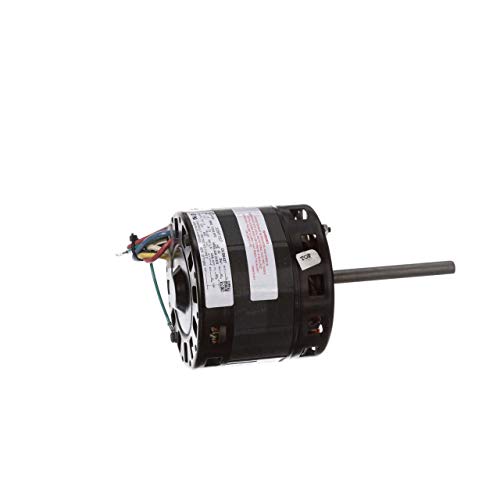

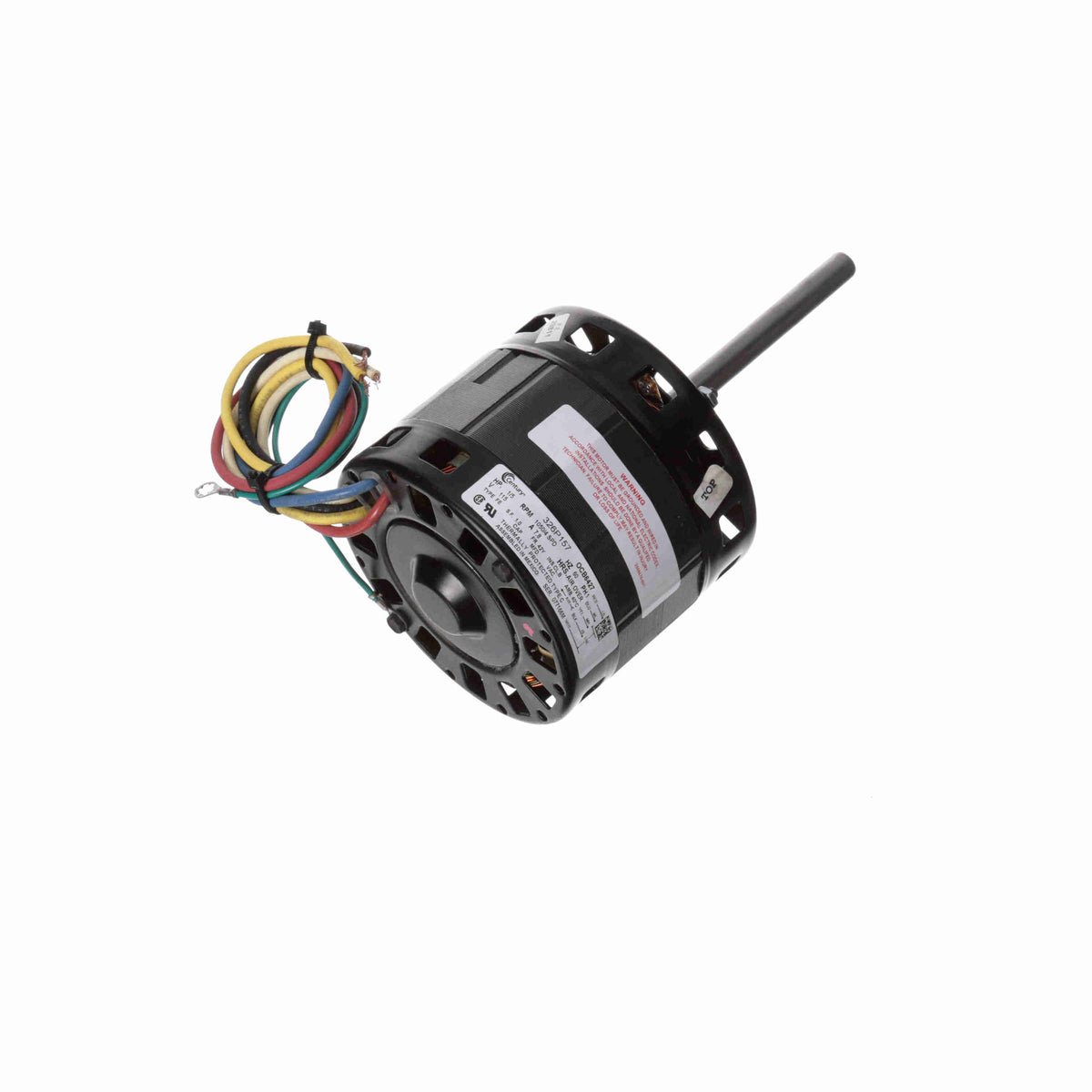

Carrier Electric Motor 1/5hp, 1050 RPM; 7.8 amps, 115 Volts AO Smith # OCB6427

Carrier Electric Motor 1/5hp, 1050 RPM; 7.8 amps, 115 Volts AO Smith # OCB6427zoom

Attributes

Key Value
Amps7.8
BearingsSleeve
Body Dia.4.88"
Country of Origin (subj.Mexico
DutyAir Over
Duty CycleContinuous
Enclosure TypeOAO (Open Air Over)
Frame42Y
Full Load Amps7.8A
HP1/5, 1/5 HP
Hz60, 60 Hz
Ins. ClassB
Insulation ClassB
ItemMotor
Manufacturers Warranty .1 yr.
Max. Ambient Temp.40 Degrees C
Maximum Ambient Tempera.40? C
Motor ApplicationOEM Replacement
Motor BearingsSleeve
Motor DesignShaded Pole
Motor Diameter5"
Motor Enclosure DesignOpen Enclosed
Motor Mounting TypeRound Belly Band
Motor Service Factor1.00
Motor Shaft DesignFlat
Motor Shaft RotationCounterclockwise Lead E.
Motor Thermal ProtectionAutomatic
MountingBand
Nameplate RPM1050 rpm
No. of Speeds4
Number of Shafts1
Number of Speeds4
OCB6427 is listed in Ce.A.O. Smith 319P705, A.O.
Overall Length9.20"
Phase1
Product TypeShaded Pole
Promotion RestrictionNot eligible for promot.
Replacement ForHC37MA135
RotationCW Shaft End
RPM1050
Service Factor (SF)1.00
Shaft Dia.1/2"
Shaft Diameter1/2"
Shaft Length4-13/16", 4.52"
Ship Weight11 lbs.
StandardsUL Recognized, CSA Cert.
Thermal ProtectionAutomatic
Voltage115V
Volts115

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
hvacdiscountstore.comCEN--OCB6427172.241In StockCENTURY MOTORS172.24 @ 1
thumbzoomZoroG0785806177.01In StockCentury10.79177.0 @ 1
thumbzoomsustainablesupply.comC3017001208.941In StockCentury10.79208.94 @ 1
thumbzoomVoomi SupplyOCB6427211.781In StockCentury Motors211.78 @ 1
thumbzoomemotorpro.comOCB6427217.341In StockCentury11.0217.34 @ 1
thumbzoomgsistore.comOCB6427220.751In StockCentury Motors220.75 @ 1
thumbzoomNational Supply NetworkB186576221.941In StockAO SMITH221.94 @ 1
AmazonSCB01N6ZZSXR222.991In StockCentury222.99 @ 1
thumbzoomGlobal IndustrialWBB186576224.951In Stock14Century224.95 @ 1
thumbzoomindustrialstores.comOCB6427241.741In Stock19Century Motors by Regal Beloit241.74 @ 1
thumbzoommidwestapplianceparts.comOCB6427-AO-P245.721In StockAO Smith245.72 @ 1
