Jet 321502

mpn321502
brandname: JET
manufacturername: JET

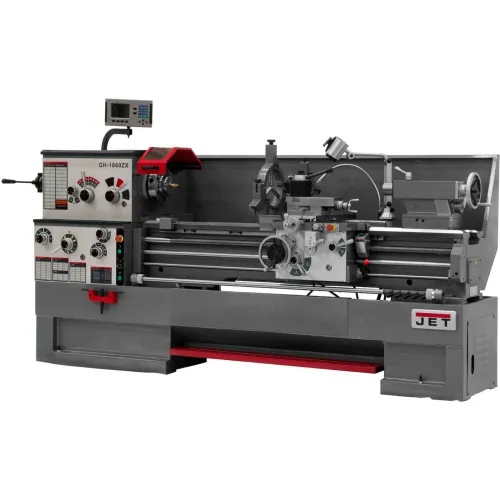

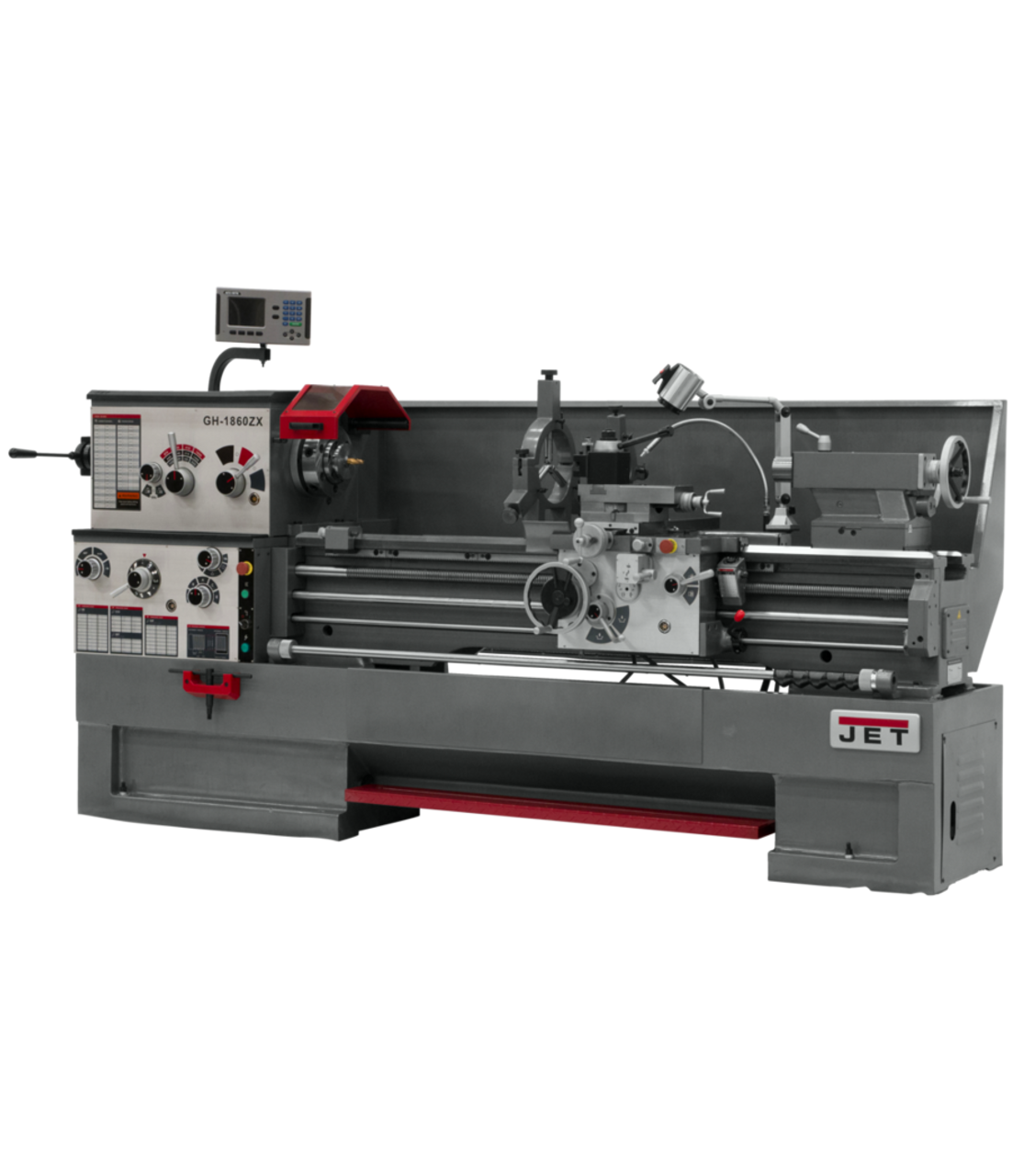

Jet Gh-1660ZxNewall Dp700 DRO(321502)

Brand: Jet
PartNumber: 321502
PackageQuantity: 1
Manufacturer: JPW Industries
Label: JPW Industries

Attributes

Key	Value
Accessory 1	Taper Attachment </td
Accessory 2	Collet Closer </td
Bed Width	12 1/4 in
Carriage Travel (In.)	55-9/16 </td
Compound Slide Travel (.	5-1/8 </td
Condition	New
Cross Slide Travel (In.)	9 </td
Digital Readout	Newall DP700 </td
Distance Between Centers	60 in
Distance Between Center.	60 </td
Drive	Geared Head </td
Features	Corner Radius Precision.
Follow Rest Capacity (I.	1/2 - 3-1/2 </td
Frequency	60 Hz
Gap Length	12 1/4 in
Horsepower	7 1/2 hp
Includes	10 in 3-jaw scroll chuc.
Item	Lathes
Length of Gap (In.)	12-1/4 </td
Machine Type	Engine lathe
Manufacturer	Jet
Max Tool Size (In.)	1 x 1 </td
Max. Cross Feed	0.0360 in
Max. Metric Thread	20 mm
Max. Spindle Speed	1,800 RPM
Min. Cross Feed	0.0006 in
Min. Spindle Speed	25 RPM
Min. Threads per Inch	1 5/8
Motor (HP)	7-1/2 HP, 230/460, 3 Ph.
Number of Inch Threads	61, 61 </td
Number of Longitudinal .	122 </td
Number of Metric Threads	24, 24 </td
Number of Spindle Speeds	12 </td, 12
Overall Dimensions (L x.	115 x 44 x 66 </td
Overall Length	3-3/4 in
Phase	3
Prewired (V.)	230 </td
Range of Cross Feeds (I.	.0006 - .0365 </td
Range of Inch Threads (.	1-5/8 - 72 </td
Range of Longitudinal F.	.0015 - .0913 </td
Range of Metric Threads	.05 - 20 </td
Range of Spindle Speeds.	25 - 1,800 </td
Size	16 x 60 </td
SKU	321502
Spindle Bore (In.)	3-1/8 </td
Spindle Mount	D1-8 </td
Spindle Taper with Slee.	MT-7 (MT-5) </td
Steady Rest Capacity (I.	3/8 - 7 </td
Style (Type)	Engine - Large Spindle .
Swing Over Bed	16 in
Swing Over Bed (In.)	16 </td
Swing Over Cross Slide	10 in
Swing Over Cross Slide .	10 </td
Swing Through Gap (In.)	25-1/2 </td
Tailstock Spindle Trave.	5 </td
Tailstock Taper	5 in
Taper in Tailstock Spin.	MT-5 </td
UPC	66275587020
Voltage	230/460V
Weight (Lbs.)	5,795 </td
Width of Bed (In.)	13-3/8 </td

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
Applied Industrial	103657384	37413.06	1	In Stock		Jet		37413.06 @ 1
JB Tools	JB-DS-WLT-JT9-321502	42499.0	1	In Stock		Jet		42499.0 @ 1
elitemetaltools.com	10357	42499.0	1	In Stock		JET		42499.0 @ 1
AceTool	JET-321502	42499.0	1	In Stock		Jet	5795.0	42499.0 @ 1
burnstools.com	321502	42499.0	1	In Stock		Jet		42499.0 @ 1
ToolUp.com	JET 321502	42499.0	1	In Stock		Jet		42499.0 @ 1
toolsplus.com	JET321502	42499.0	1	In Stock		JET		42499.0 @ 1
imsbolt.com	321502	42499.0	1	In Stock		JET		42499.0 @ 1
Global Industrial	WBB0230717	44739.0	1	In Stock	24	JET		44739.0 @ 1
Zoro	G1939992	52441.85	1	In Stock		Jet	6200.0	52441.85 @ 1
