Molex / Waldom 46114-1441

B00GQQIVO4

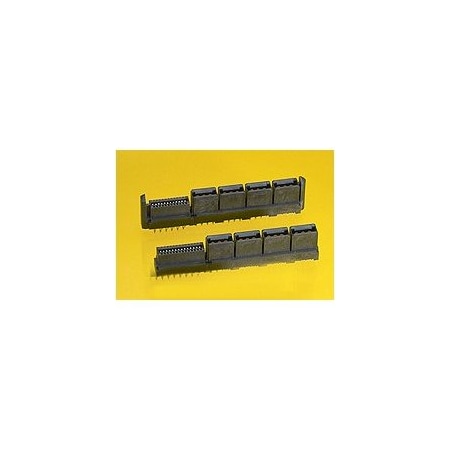

Molex / Waldom 46114-1441 Connector Power

Molex / Waldom 46114-1441 Connector Powerzoom

Attributes

Key Value
(p)ower-(s)ignal Config.14p - 40s
ApplicationBoard-to-Board, Power
Base Product Number046114
CategoryConnectors, Interconnec.
Circuits (Loaded)54
Circuits (maximum)54
ColorBlack
Color - ResinBlack
Connector StyleLPHPower
Connector TypeReceptacle, Outer Shrou.
Connector Usage-
Contact FinishGold
Contact Finish Thickness30.0?in (0.76?m)
Contact Layout, Typical40 Signal, 14 Power
CSALR19880
Current - Maximum per C.30.0A
Current Rating (Amps)-
DescriptionCONN RCPT LPHPOWER 54PO.
Detailed Description54 Connector Receptacle.
Digi-Key Part Number0461141441-ND
Features-
Flammability94V-0
ManufacturerMolex
Manufacturer Product Nu.0461141441
Manufacturer Standard L.15 Weeks
Material - MetalHigh Performance Alloy .
Material - Plating Mati.Gold
Material - ResinHigh Temperature Thermo.
Material Flammability R.UL94 V-0
MfrMolex
Mounting TypeThrough Hole
Number of Columns-
Number of Positions54
Number of Positions Loa.All
Number of Rows2
Operating Temperature-40?C ~ 105?C
OrientationVertical
PackageTray
Pitch-
Pitch - Mating Interface1.27mm, 12.00mm
Pitch - Termination Int.1.27mm, 2.50mm
Plating min - Mating0.762?m
Plating min - Terminati.2.540?m
Polarized to Mating PartYes
Polarized to PCBYes
Product NameEXTreme LPHPower
Product StatusActive
SeriesEXTreme LPHPower 46114,.
Surface Mount Compatibl.Yes
TerminationPress-Fit
ULE29179
Voltage - Maximum250V AC (RMS)/DC
Voltage Rating250V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com46114-144112.42190MOLEX / WALDOM12.42 @ 25
thumbzoomjensentools.com1019026315.29125Molex15.29 @ 25
Newark56R035117.8718025MOLEX17.87 @ 100
thumbzoomDigi-Key331147618.65752818025Molex18.657528 @ 180
thumbzoomZoroG40436091408.5125Molex1408.5 @ 25
