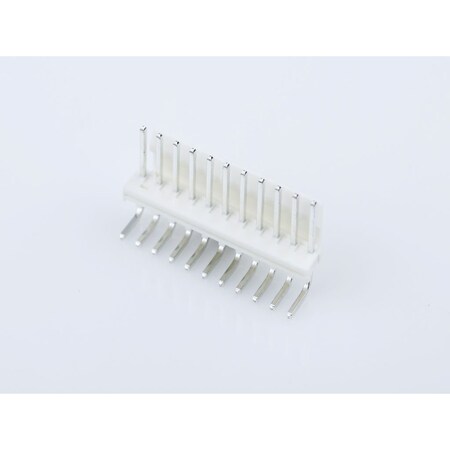

Molex / Waldom 171814-0011

mpn1718140011
brandname: Molex
manufacturername: Molex

171814-0011, Molex/Waldom (50 Items)

171814-0011, Molex/Waldom (50 Items)

zoom

Brand: Molex / Waldom
PartNumber: 171814-0011
Model: 171814-0011
Manufacturer: Molex / Waldom
Label: Molex / Waldom

Attributes

Key	Value
Applications	Automotive, General Pur.
Base Product Number	171814
Category	Connectors, Interconnec.
Color	Black
Connector Type	Header
Contact Finish	Tin Plated
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thicknes.	60.0?in (1.52?m)
Contact Finish Thicknes.	60.0?in (1.52?m)
Contact Length - Mating	0.446" (11.33mm)
Contact Length - Post	0.100" (2.54mm)
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating	7 A
Current Rating (Amps)	-
Description	CONN HEADER R/A 11POS 3.
Detailed Description	Connector Header Throug.
Digi-Key Part Number	WM10181-ND
Fastening Type	Friction Lock
Features	-, Surface Mount Compat.
Flammability Rating	UL 94V-1
Hole Center to Center	3.96 mm
Ingress Protection	-
Insulation Color	Black
Insulation Height	0.394" (10.00mm)
Insulation Material	Polyamide (PA), Nylon
Manufacturer	Molex
Manufacturer Product Nu.	1718140011
Manufacturer Standard L.	11 Weeks
Mated Stacking Heights	-
Material	Nylon
Material Flammability R.	UL94 V-2
Max. Temp.	260?C
Max. Voltage	250V
Mfr	Molex
Mounting Type	Through Hole, Right Ang.
Number of Contacts	11
Number of Positions	11
Number of Positions Loa.	All
Number of Rows	1
Operating Temperature	-
Overall Contact Length	-
Package	Bulk
Package Quantity	1
Pitch - Mating	0.156" (3.96mm)
Product Status	Active
Row Spacing - Mating	-
Series	KK396, 171814
Shrouding	Shrouded - 1 Wall
Standards	CSA Certified; UL E29179
Style	Board to Board or Cable
Terminal Finish	Nickel Plated
Terminal Type	Through Hole
Termination	Solder
Voltage Rating	-

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Waldom	MOLEX 171814-0011	1.29	45	337		MOLEX		1.29 @ 50
	Digi-Key	4424934	1.38849	2250	50		Molex		1.38849 @ 2250
	Onlinecomponents.com	171814-0011	1.46	1	375		MOLEX / WALDOM		1.46 @ 50
	Newark	77AC7295	1.61	1	337		MOLEX		1.61 @ 50
	jensentools.com	10152702	1.72	1	337		Molex		1.72 @ 50
	Zoro	G805790066	1.99	45	50		Molex		1.99 @ 50
