Ruland FCMR19-7-6-SS

B016APP94A

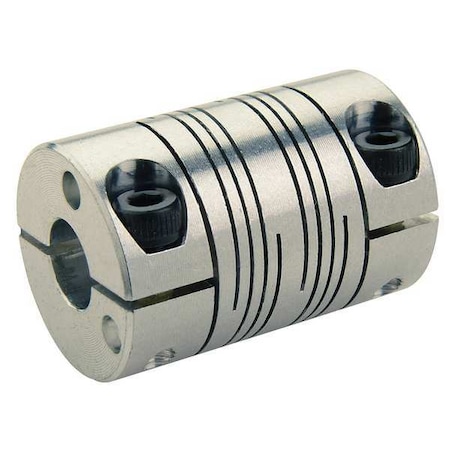

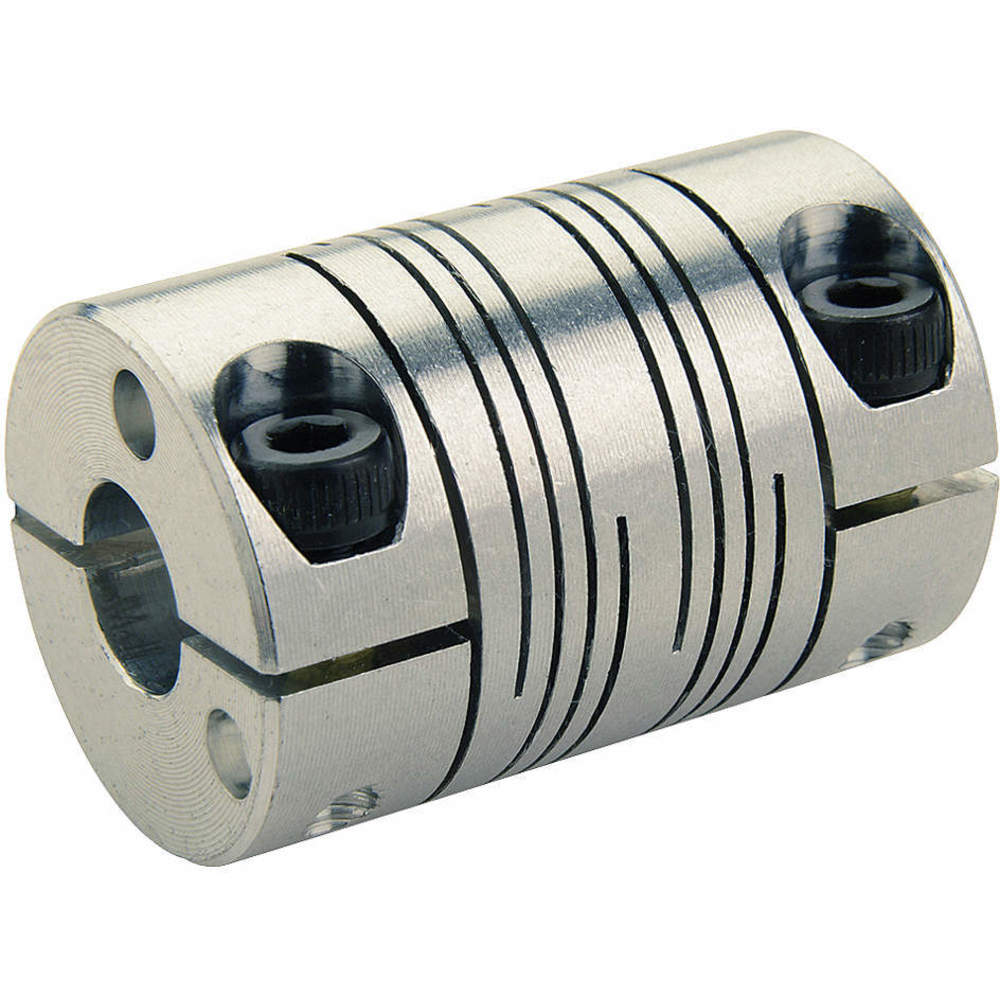

Ruland FCMR19-7-6-SS 303 Stainless Steel Beam Coupling, 6-Beam Clamp Style, 7 mm x 6 mm Bores, 19.1 mm OD, 31.8 mm Length

Ruland FCMR19-7-6-SS 303 Stainless Steel Beam Coupling, 6-Beam Clamp Style, 7 mm x 6 mm Bores, 19.1 mm OD, 31.8 mm Lengthzoom

Attributes

Key Value
Angular Misalignment3.0?
Axial Motion0.13 mm
B1 Max Shaft Penetration15.4 mm
B2 Max Shaft Penetration15.4 mm
Balanced DesignYes
Bore (B1)7 mm
bore - side 1:7 mm
bore - side 2:6 mm
Bore Dia.7mm x 6mm
Bore Tolerance+0.025 mm / -0.000 mm
bore tolerance:+.025 / -.000 mm
Cap ScrewM3
Clearance Dia. (In.)0.879 in
Clearance Dia. (mm)22.33
Clearance Diameter (C) .22.33 mm
Country of OriginUSA
Country of Origin (subj.United States
Dynamic Torque Non-Reve.1.76 Nm
Dynamic Torque Reversing0.88 Nm
FinishBright
Finish SpecificationBright, No Plating
Full Bearing Support Re.Yes
harmonization code:8483608000
Hex Wrench Size2.5 mm
ItemMotion Control Coupling
Item - Motion Control C.Motion Control Coupling
Length (L)31.8 mm
Length through Bore15.06 mm
Length through Bore (In.0.593
Length through Bore (mm)15.06
ManufacturerRuland Manufacturing
MaterialStainless Steel
Material - CouplingsStainless Steel
Material SpecificationType 303 Austenitic, No.
material:303 Stainless Steel
Max. Angular Misalignme.3 Degrees
Max. Axial Misalignment.+/-0.008
Max. Bore (mm)7 mm
Max. Parallel Misalignm.0.005 in
Max. RPM6,000 RPM
Max. Temp.350 Degrees F
Max. Temp. Range (F)350 Degrees
maximum angular misalig.3
maximum parallel misali.0.20 mm
maximum rpm:6000 rpm
Maximum Speed6,000 RPM
Min. Bore (mm)6
Moment of Inertia2.964 x10
Note 1Torque ratings are at m.
Note 2Performance ratings are.
Note 3Torque ratings for the .
number of beams:Six Beam
Number of Screws2 ea
Nypatch? Anti-Vibration.Yes
operating temperature:-40 to +350
Outer Diameter (OD)19.1 mm
Outside Dia.19.1 mm
Outside Dia. (In.)0.75
Outside Dia. (mm)19.1
outside diameter:19.1 mm
Overall Length31.8 mm
Overall Length (In.)1.25
Overall Length (mm)31.8
overall length:31.8 mm
Parallel Misalignment0.20 mm
Rated Torque31 in-lb
Recommended Shaft Toler.+0.000 mm / -0.013 mm
screw clamp type:Clamp Type
Screw FinishBlack Oxide
Screw MaterialAlloy Steel with
Screw SizeM3
Screw Size (mm)M3
screw thread size:M3
Screw TypeCap Screw
Seating Torque2.1 Nm
Shaft Locking Type - Co.1 Piece Clamp
SizeFCMR19
Small Bore (B2)6 mm
Static Torque3.51 Nm
Style6-Beam Clamp
Tariff Code8483.60.8000
Temperature-40?F to 350?F (-40?C t.
Torque (In.-Lbs.)31
Torsional Stiffness0.85 Deg/Nm
Torsional Stiffness (De.0.096
torsional stiffness:0.85 in-lb/deg
UNSPC31163003
UPC634529043219
Weight (lbs)0.116000
weight:0.245 lb
Zero-Backlash?Yes

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG7828003104.01In Stock10Ruland0.18104.0 @ 1
thumbzoommotionindustries.com04804653110.931In StockRuland Manufacturing Co Inc110.93 @ 1
thumbzoomRulandFCMR19-7-6-SS126.731In StockRuland0.116126.73 @ 1
thumbzoomsustainablesupply.comC1644720182.261In StockRuland Manufacturing0.18182.26 @ 1
Grainger30UR77196.01In StockRULAND MANUFACTURING196.0 @ 1
thumbzoomRaptor SuppliesAF9UBR221.91688351In StockRULAND MANUFACTURING221.9168835 @ 1
