Schneider Electric ZCKS404

B00CONE3RM

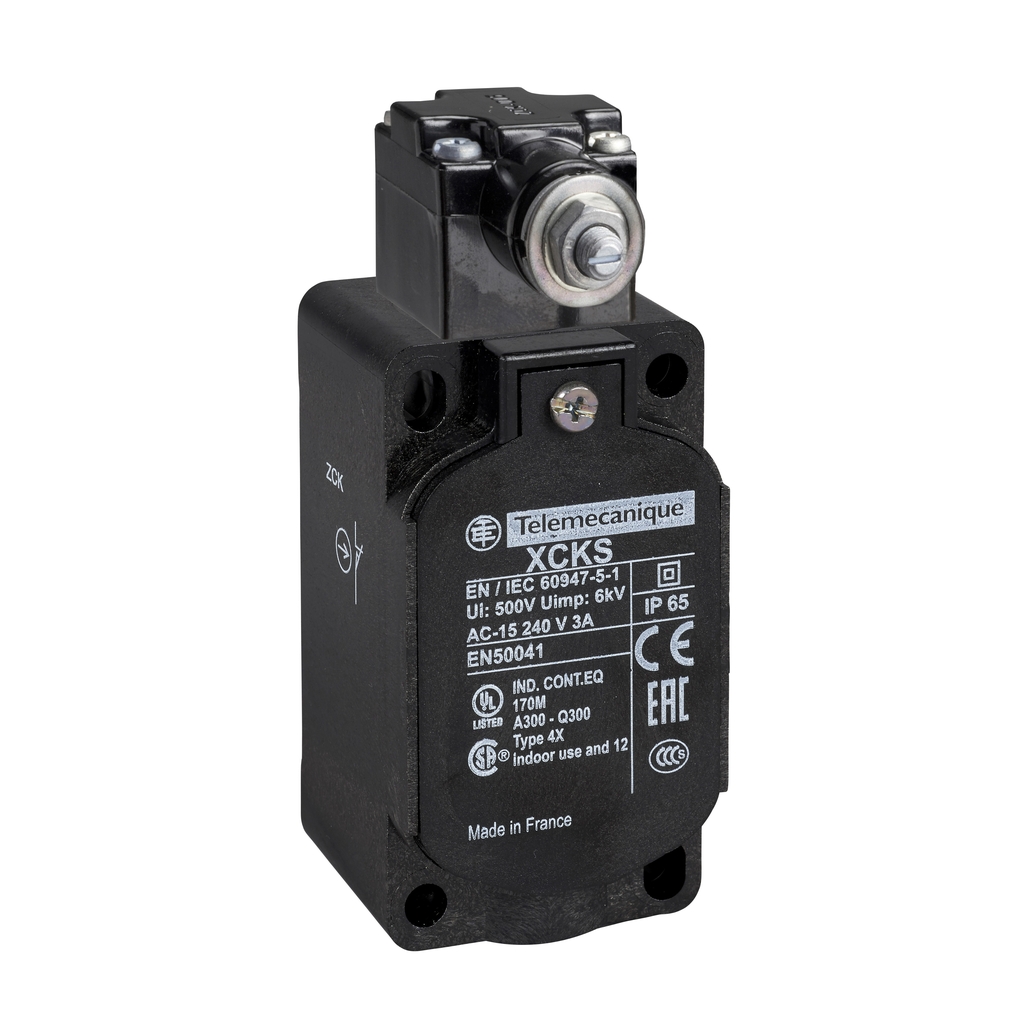

SCHNEIDER ELECTRIC ZCKS404 Limit Switch

SCHNEIDER ELECTRIC ZCKS404 Limit Switchzoom

Attributes

Key Value
[Ie] Rated Operational .3 A 240 V, AC-15, A300 .
[Ithe] Conventional Enc.10 A
[Ui] Rated Insulation V.500 V 3)IEC 60947-1 con.
[Uimp] Rated Impulse Wi.6 kV IEC 60664 || 6 kV .
Accessory TypeSwitch Body
Ambient Air Temperature.-25-70 ?C standard envi.
Ambient Air Temperature.-40-70 ?C
Associated HeadZCKD59 || ZCKD54 || ZCK.
Body Materialplastic
Body Typefixed
Cable Entry1 entry tapped for Pg 1.
California Proposition .Diisononyl phthalate (D.
CategorySwitches
Circularity ProfileENVEOLI1307066EN
Contact Operationsnap action
Contacts Materialsilver plated contacts
Contacts Type And Compo.2 C/O
Depth36 mm
DescriptionLMT SWITCH 240VAC 3A PL.
Detailed DescriptionSwitch Body
Device Short NameZCKS
Digi-Key Part Number4008-ZCKS404-ND
Electrical Connectionscrew-clamp terminals 1.
Electrical Durability5000000 cycles, DC-13 1.
Environmental Character.standard environment
Environmental DisclosureENVPEP1307066
Eu Rohs DirectivePro-active compliance (.
For Use With/Related Pr.Telemecanique XC Series
Height73-73 mm
Ik Degree Of ProtectionIK03
Ip Degree Of ProtectionIP65
Local Displaywithout
ManufacturerSCHNEIDER ELECTRIC
Manufacturer Product Nu.ZCKS404
Manufacturer Standard L.1 Weeks
Maximum Resistance Acro.0.25 mOhm IEC 60255-7 c.
Mercury FreeYes
MfrSCHNEIDER ELECTRIC
Minimum Actuation Speed0.01 m/min
Net Weight0.08 kg
Number Of Poles2
Number Of Steps2 3 positions
PackageBox
Positive Openingwithout
Product CompatibilityXCKS
Product Or Component Ty.limit switch body with .
Product StatusActive
Range Of ProductTelemecanique Limit swi.
Reach RegulationReference contains Subs.
Rohs Exemption Informat.Yes
SeriesTelemecaniqueLimit swit.
Series Namestandard format
Short-Circuit Protection10 A cartridge fuse gG
Sustainable Offer StatusGreen Premium product
Switch Actuationfrom left and right
Terminals Description I.(13-14)NO || (23-24)NO
Type of control accesso.body
Warranty18 months
Width40 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomkempstoncontrols.co.ukZCKS40494.1032171In StockSchneider94.103217 @ 1
TMEZCKS40499.21In StockSCHNEIDER ELECTRIC99.2 @ 1
thumbzoomgordonelectricsupply.comZCKS404129.091In Stock10SQUARE D129.09 @ 1
thumbzoommostelectric.comZCKS404144.011SQUARE D/TELEMECANIQUE144.0 @ 1
thumbzoommayerelectric.comSQDZCKS404155.631In StockSQUARE D0.176155.63 @ 1
thumbzoomDigi-Key17178704157.591In StockSchneider Electric157.59 @ 1
