TE Connectivity T4011019041-000

mpnT4011019041-000
brandname: TE Connectivity
manufacturername: TE Connectivity

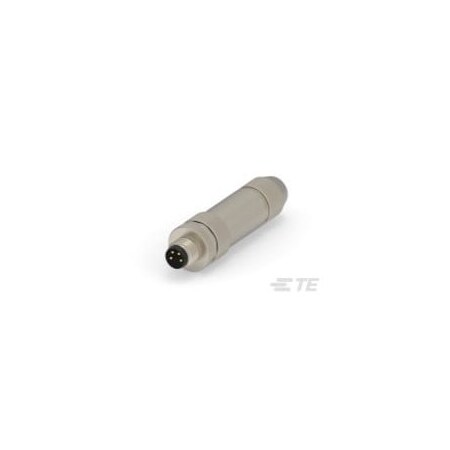

Conn M8 Circular M 4 POS Screw ST Cable Mount 4 Terminal 1 Port

Brand: TE Connectivity
PartNumber: T4011019041-000
Model: T4011019041-000
Manufacturer: TE Connectivity
Label: TE Connectivity

Attributes

Key	Value
Accessory Color	Black
Alternate Mfr Part Numb.	T4011019041-000
Applications	Automation Control, Ind.
Assembly Type	Electrical Connector
Backshell Material, Pla.	-
Base Product Number	T40110
Cable external diameter	3.5...5mm
Cable Opening	-
Category	Connectors, Interconnec.
Circuit Application	Signal
Color	Silver
Connector	Plug, Wire & Cable
Connector Style	Plug
Connector System	Wire-to-Wire
Connector Type	Plug, Male Pins
Connector variant	shielded
Contact Current Rating .	3
Contact Finish - Mating	Gold
Contact Finish Thicknes.	3.00?in (0.076?m)
Contact Material	-
Contact Type	Male Contact
Country of Origin (subj.	China
Current Rating (Amps)	3A
Durability Rating	100
Electrical mounting	screw terminal
Environmental Protection	IP67
Environmental Protectio.	Elastomer Sealed
Factory Installed Backs.	With
Fastening Type	Threaded
Features	Backshell
Field Serviceable	Yes
Flange	Without
Ingress Protection	IP67 - Dust Tight, Wate.
Insert Material	-
Insulation Material	Polyamide 66 GF25
IP Dust Sealing Level	6
IP rating	IP67
IP Water Sealing Level	IP67
Keying	A, 90?
Kind of connector	male
Locking system	external thread,
Manufacturer	TE Connectivity
Material Flammability R.	-
Mating Alignment	With
Mating Alignment Type	Keyed
Mating Retention Type	Threaded Coupling
Mechanical mounting	for cable
Mfr	TE Connectivity AMP Con.
Mounting Feature	-
Mounting Type	Free Hanging (In-Line)
Number of pins	4
Number of Positions	4
Number of Power Positio.	0
Number of Signal Positi.	4
O-Ring Material	Silicone
Operating temperature	-40...85?C
Operating Temperature	-40?C ~ 85?C
Operating Temperature R.	-40 ? 85??C?[?-104 ? 18.
Operating Voltage	30
Orientation	-
Package	Bulk
Peripheral Seal Material	Silicone
Polarisation	A code - DeviceNet / CA.
Polarization Code	A
Preloaded	Yes
Prewired	No
Primary Material	Metal
Product Status	Active
Product Type	Connector
Rated voltage	30V
Reverse Gender	Standard
Sealable	Yes
Series	M8
Shell Finish	Nickel
Shell Material	Brass
Shell Size	12
Shell Size - Insert	M8-4
Shell Size, MIL	-
Shell Type	Metal
Shielded	Yes
Shielding	shielded
Spatial orientation	straight
Termination	Screw
Type of connector	M8
Voltage Rating	30V
Wire size	24AWG...26AWG
Wire Size	.25 ? .14, 24 ? 26

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Preferred Tier
Arrow	T4011019041-000	9.258	200	200		TE Connectivity	9.258 @ 200
Waldom	TE CONNECTIVITY AMP BRAND T4011019041-000	11.03	4	200		TE CONNECTIVITY/AMP BRAND	11.03 @ 200
Mouser	571-T4011019041-000	12.28	1	241		TE Connectivity	12.28 @ 200
TE Connectivity	T4011019041-000	12.6551	1	200		TE Connectivity (TE)	12.6551 @ 200
TME	T4011019041-000	12.66	1	281		TE Connectivity	12.66 @ 200
Newark	71AJ9362	14.07	1	200		TE CONNECTIVITY	14.07 @ 200
Zoro	G800976519	15.6	100	200	80	Te Connectivity	15.6 @ 200
Digi-Key	7221433	15.67116	1	1752		TE Connectivity AMP Connectors	15.67116 @ 200
RS Delivers	134-5719	16.2	1	99999999		TE Connectivity	16.2 @ 200
us.rs-online.com	71355920	18.45	1	200		TE Connectivity	18.45 @ 200
