ANALOG DEVICES AD5312BRMZ

B0119J2CHO

1 piece X AD5312BRMZ AD5312BRM AD5312 Analog Devices IC DAC 10BIT DUAL R-R 10-MSOP

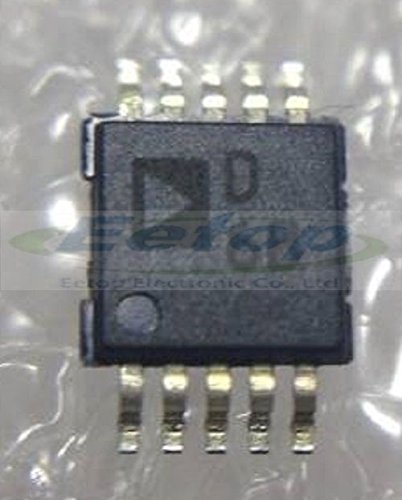

1 piece X AD5312BRMZ AD5312BRM AD5312 Analog Devices IC DAC 10BIT DUAL R-R 10-MSOPzoom

Attributes

Key Value
Alternate Part No.584-AD5312BRMZ
ArchitectureString DAC, Resistor St.
Base Product NumberAD5312
BrandAnalog Devices
CategoryIntegrated Circuits (IC.
Data InterfaceSPI, DSP
DescriptionIC DAC 10BIT V-OUT 10MS.
Detailed Description10 Bit Digital to Analo.
Differential OutputNo
Digi-Key Part NumberAD5312BRMZ-ND
DigiKey ProgrammableNot Verified
INL/DNL (LSB)?0.5, ?0.05
Integral Non-linearity+/- 2 LSB
Interface TypeSPI
ManufacturerAnalog Devices Inc.
Manufacturer Part No.AD5312BRMZ
Manufacturer Product Nu.AD5312BRMZ
Manufacturer Standard L.13 Weeks
Maximum Operating Tempe.+ 105 C
Maximum Power Dissipati.2.5 mW
MfrAnalog Devices Inc.
Minimum Operating Tempe.- 40 C
Mounting StyleSMD/SMT
Mounting TypeSurface Mount
Number of Bits10
Number of Converters2
Number of D/A Converters2
Operating Temperature-40?C ~ 105?C
Output TypeVoltage, Voltage - Buff.
PackageTube
Package / Case10-TFSOP, 10-MSOP (0.11.
Package/CaseMSOP-10
PackagingTube
Product CategoryDigital to Analog Conve.
Product StatusActive
Reference TypeExternal
Resolution10 bit
Sampling Rate143 kS/s
Series-, AD5312
Settling Time7 us, 9?s
Supplier Device Package10-MSOP
Supply Voltage - Max5.5 V
Supply Voltage - Min2.5 V
Voltage - Supply, Analog2.5V ~ 5.5V
Voltage - Supply, Digit.2.5V ~ 5.5V
Voltage ReferenceExternal

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Freelance ElectronicsAD5312BRMZ3.2874911Analog Devices3.28749 @ 1
HotendaH23890015.991In StockAnalog Devices, Inc.5.99 @ 1
thumbzoomswatee.comAD5312BRMZ8.721199Analog Devices Inc.8.72 @ 1
thumbzoomNewark60AK64039.21191ANALOG DEVICES9.2 @ 1
thumbzoomDigi-Key6538349.371790Analog Devices Inc.9.37 @ 1
RS Delivers523-854711.0281In StockAnalog Devices11.028 @ 1
thumbzoomRadwellAD5312BRMZ12.01In StockANALOG DEVICES12.0 @ 1
