Century 9678

B008DJ9HCC

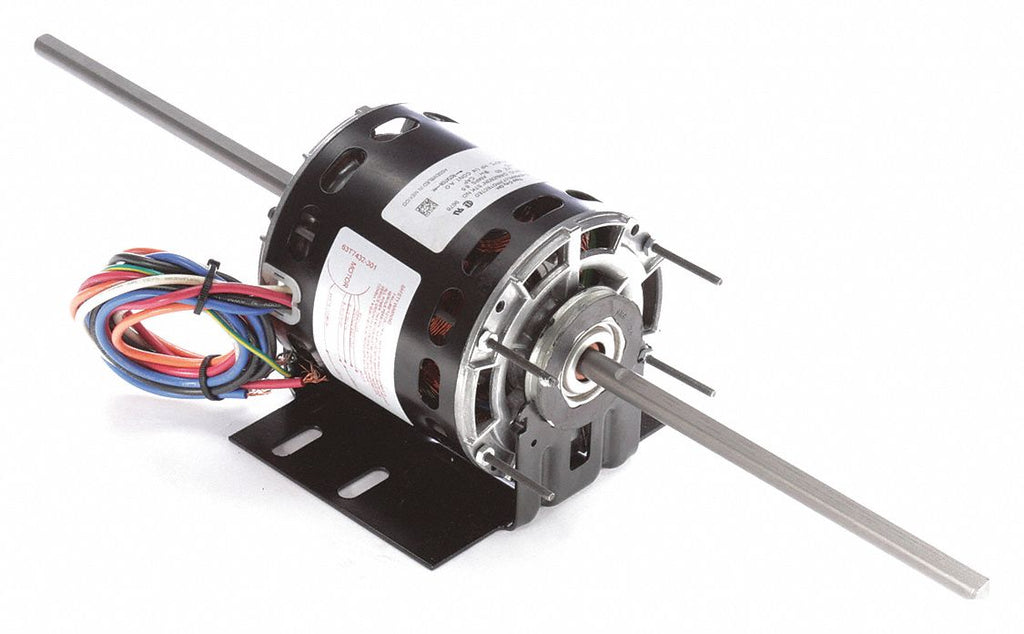

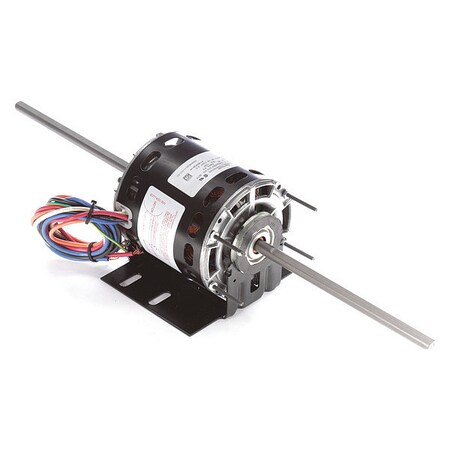

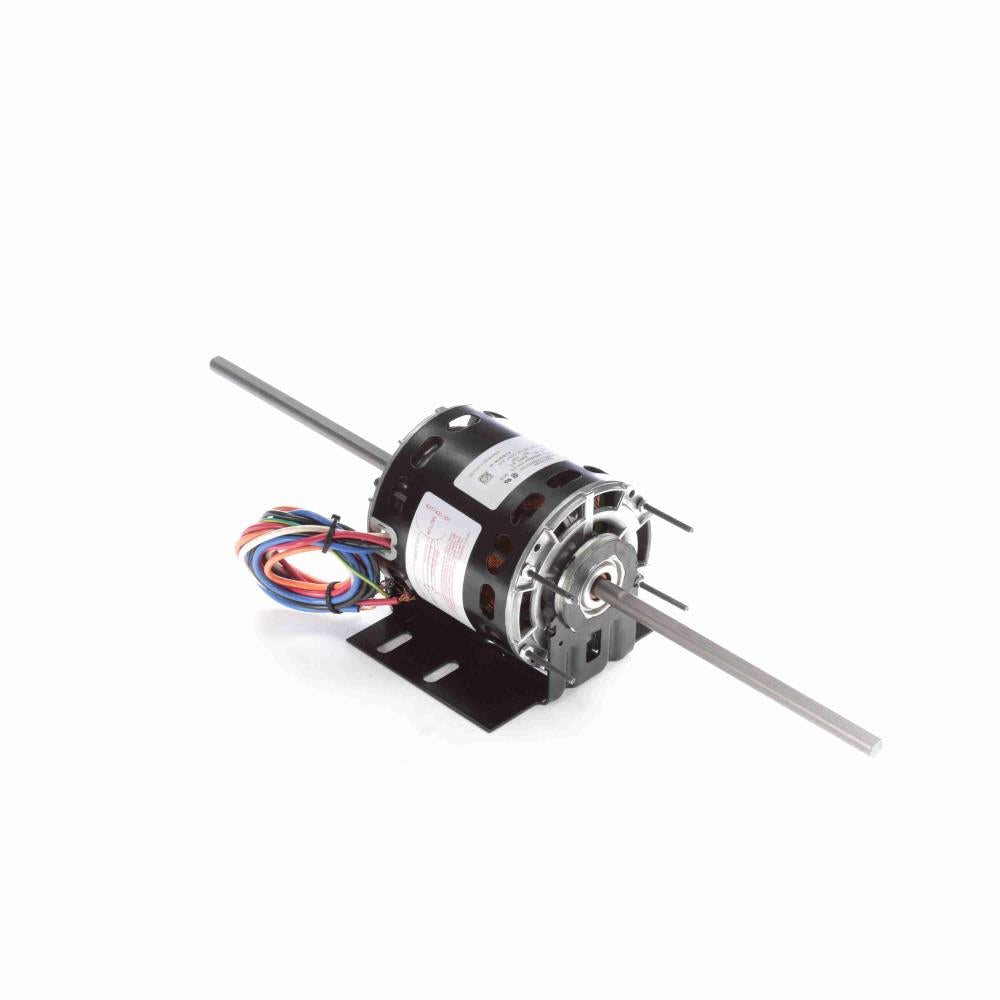

Room Air Cond Mtr, Shad Pol, OAO, 1050 RPM

Room Air Cond Mtr, Shad Pol, OAO, 1050 RPMzoom

Attributes

Key Value
9678 is listed in Centu.A.O. Smith DA3J093, GE .
Amps8.5
ASINB008DJAW6W
Batteries Required?No
BearingsSleeve
Body Dia.5 in
Bolt Circle Dia.4 5/8 in
BrandCENTURY
Capacitor RequiredNo
CertificationCSA/IEC/NEMA
Country of Origin (subj.Mexico
Current Stock24
DutyContinuous
Duty CycleContinuous
Enclosure TypeOAO (Open Air Over)
Frame42Y
Full Load Amps8.5
HP1/4
Hz60, 60 Hz
IncludesResilient Mounting Ring
Ins. ClassB
Insulation ClassB
International ShippingNo
ItemRoom Air Conditioner Mo.
Item model number9678
Item Package Quantity1
Lead Length26 in
Length Less Shaft6 3/16 in
ManufacturerCENTURY
MaterialHAWA
Max. Ambient Temp.40 Degrees C
Maximum Ambient Tempera.40? C
Motor ApplicationHVAC/R
Motor BearingsSleeve
Motor DesignShaded Pole
Motor Diameter5"
Motor Enclosure DesignOpen Air-Over
Motor Frame MaterialSteel
Motor Mounting PositionHorizontal
Motor Mounting TypeStud
Motor Service Factor1
Motor Shaft DesignFlat
Motor Shaft RotationCCWLE
Motor Sub ApplicationRoom Air Conditioner
Motor Thermal ProtectionAuto
MountingCradle/Stud
Mounting Holes4
Mounting Stud Pattern2-5/16 in x 4 in
Mpn9678
Nameplate RPM1,050
National Stock Number6105-00-421-4168
No. of Speeds4
Number of Shafts2
Number of Speeds4
Overall Length22 3/4 in
Part Number9678
Phase1, Single
Product TypeShaded Pole
Resilient Ring Dia.2 1/2 in
Ring to Ring Center5 13/16 in
RotationDouble Shafted
RPM1050
RPM Range1,001-1,100
Service Factor (SF)1.00
Shaft Dia.1/2 in
Shaft Diameter1/2"
Shaft Length8-3/4" x 8-3/4", 8 51/6.
Ship Weight8 lbs.
SKUCU-3455553533
StandardsCSA Certified, UL Recog.
Stud Quantity4
Stud Size#8-32 x 1-3/8 in
SubCategoryMotors/Ac Motors
Thermal ProtectionAutomatic
UNSPSC Code31160000
UPC007866740095
Usable @ 200VNo
Usable @ 208VNo
Voltage115V AC
Voltage Compatibility115/208-230V AC, 115/23.
Volts115
Weight8 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomVoomi Supply967814.991In StockCentury Motors14.99 @ 1
AmazonB008DJAW6W152.941In StockCENTURY152.94 @ 1
thumbzoomZoroG2182643196.781In StockCentury14.0196.78 @ 1
thumbzoomktool.net9678216.151In StockCentury216.15 @ 1
thumbzoomsimsupply.comCU-3455553533227.341In StockCentury227.34 @ 1
thumbzoomsustainablesupply.comC1561800249.331In StockCentury14.0249.33 @ 1
thumbzoomemotorpro.com9678266.81In StockCentury8.0266.8 @ 1
thumbzoommidwestapplianceparts.com9678-AO-P277.091In StockAO Smith277.09 @ 1
thumbzoomRaptor SuppliesAD9TWT363.7644661In StockCENTURY363.764466 @ 1
