A. O. Smith 9704

B000LEU3W0

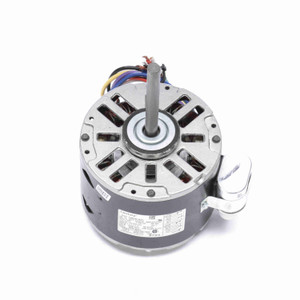

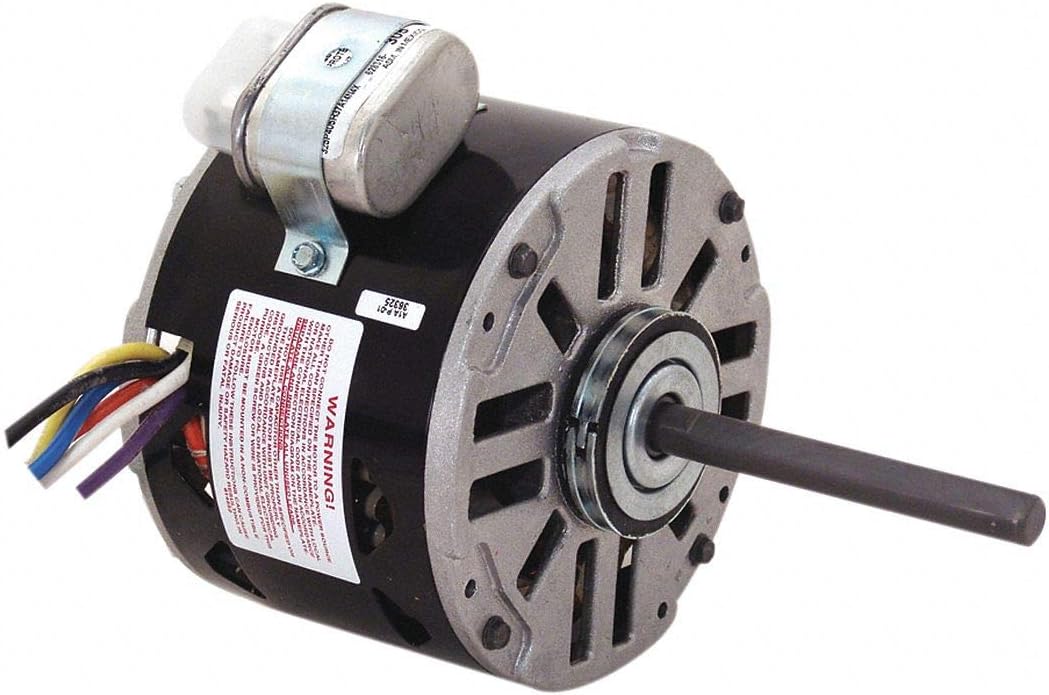

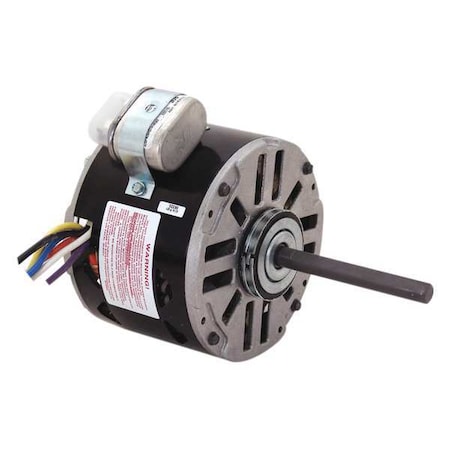

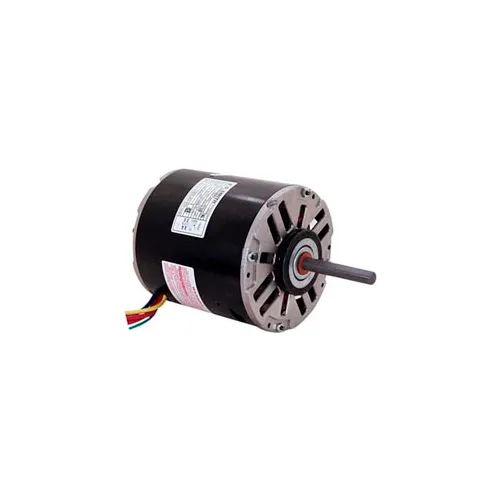

A.O. Smith 5 5/8 Inch Diameter Stock Motor 115/208-230 Volts 1550 RPM 1/8 H.P.

A.O. Smith 5 5/8 Inch Diameter Stock Motor 115/208-230 Volts 1550 RPM 1/8 H.P.zoom

Attributes

Key Value
9704 is listed in Centu.A.O. Smith F48V81A01, G.
Amps2.7/1.2/1.4, 2.7/1.2-1.4
ApplicationRoom Air Conditioners, .
ASINB000CG5YEO
Batteries Required?No
BearingsSleeve
Body Dia.5 5/8 in
BrandCentury
C-Dimension9.11 (in.)
Capacitor4MFD @ 370VAC (Included)
Catalog Number9704
CEN
CertificationCSA
CSAY
Current Stock47
DE Bearing TypeSleeve
DEM ReferenceNOHP
DutyAir Over, Continuous
Duty CycleContinuous
Electrical TypePermanent Split Capacit.
Enclosure TypeOAO (Open Air Over), Se.
Frame48Y
Frame MaterialRolled Steel
Frame Type48Y
Frequency60
HP1/8
Hz50/60
IncludesResilient Mounting Ring
Insulation ClassB
International ShippingNo
IP Code-
ItemDirect Drive Blower Mot.
Item model number9704
Item Package Quantity1
KVA Code-
Lead Length12 in
Lead TimeExpected to ship in 1-2.
Length Less Shaft5 1/8 in
Max Ambient40?C
Max. Ambient Temp.40 Degrees C
Maximum Ambient Tempera.40? C
Motor ApplicationHVAC/R
Motor BearingsSleeve
Motor DesignPermanent Split Capacit.
Motor Diameter5-5/8"
Motor Enclosure DesignOpen Air-Over
Motor OrientationAny
Motor Service Factor1
Motor Thermal ProtectionAuto
MountingRing
Mounting TypeResilient Rings
Mpn9704
Nameplate RPM1,550
Number of Speeds1
ODE Bearing TypeSleeve
Overall Length9 1/8 in
Part Number9704
Phase1
Product CategoryHVAC/R Motors > Fan an.
Product TypePSC (Permanent Split Ca.
Resilient Ring Dia.2 1/4 in
Ring to Ring Center4 11/16 in
RotationCW Shaft End, Countercl.
RPM1550
RPM (Nameplate)1550
RPM (Number of Poles)4 (1201 RPM to 1800 RPM)
RPM Range1,501-1,600
Service Factor1
Service Factor (SF)1.00
Shaft Dia.1/2 in
Shaft Diameter1/2 (in.), 1/2"
Shaft Extension4.5 (in.)
Shaft Length4-1/2", 4 1/2 in
Shaft TypeFlat
Ship Weight11 lbs.
SKUZO-G3213506
Speeds1
SubCategoryMotors/Ac Motors
Thermal ProtectionAutomatic
Type of Overload Protec.Automatic
ULRecognized
UNSPSC Code39120000
Voltage115/208-230V AC
Voltage Compatibility115/200-230V AC, 115/20.
Volts115/208-230

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonTPB007ATNN3K149.641In Stock15Century Electric/AO Smith Motors Co149.64 @ 1
AmazonUNKB007ATNN3K149.641In StockCentury Electric/AO Smith Motors Co149.64 @ 1
thumbzoomAmazonB000CG5YEO159.611In StockCentury159.61 @ 1
thumbzoomZoroG3213506181.99154Century10.5181.99 @ 1
thumbzoomSquare One9704204.121In StockCENTURY204.12 @ 1
thumbzoomsustainablesupply.comC2091411207.71In StockCentury15.0207.7 @ 1
thumbzoomsimsupply.comZO-G3213506223.75147Century223.75 @ 1
thumbzoomemotorpro.com9704225.571In StockCentury11.0225.57 @ 1
thumbzoomNational Supply NetworkB245053226.941In StockAO SMITH226.94 @ 1
thumbzoomGlobal IndustrialWBB245053229.951In StockCentury229.95 @ 1
hvacdiscountstore.comCEN--9704246.941In StockCENTURY MOTORS246.94 @ 1
thumbzoomDreisilkerCE-RBC-9704250.371In StockCentury250.37 @ 1
thumbzoommidwestapplianceparts.com9704-AO-P254.291In StockAO Smith254.29 @ 1
