AO Smith 9706

B000LEKUQO

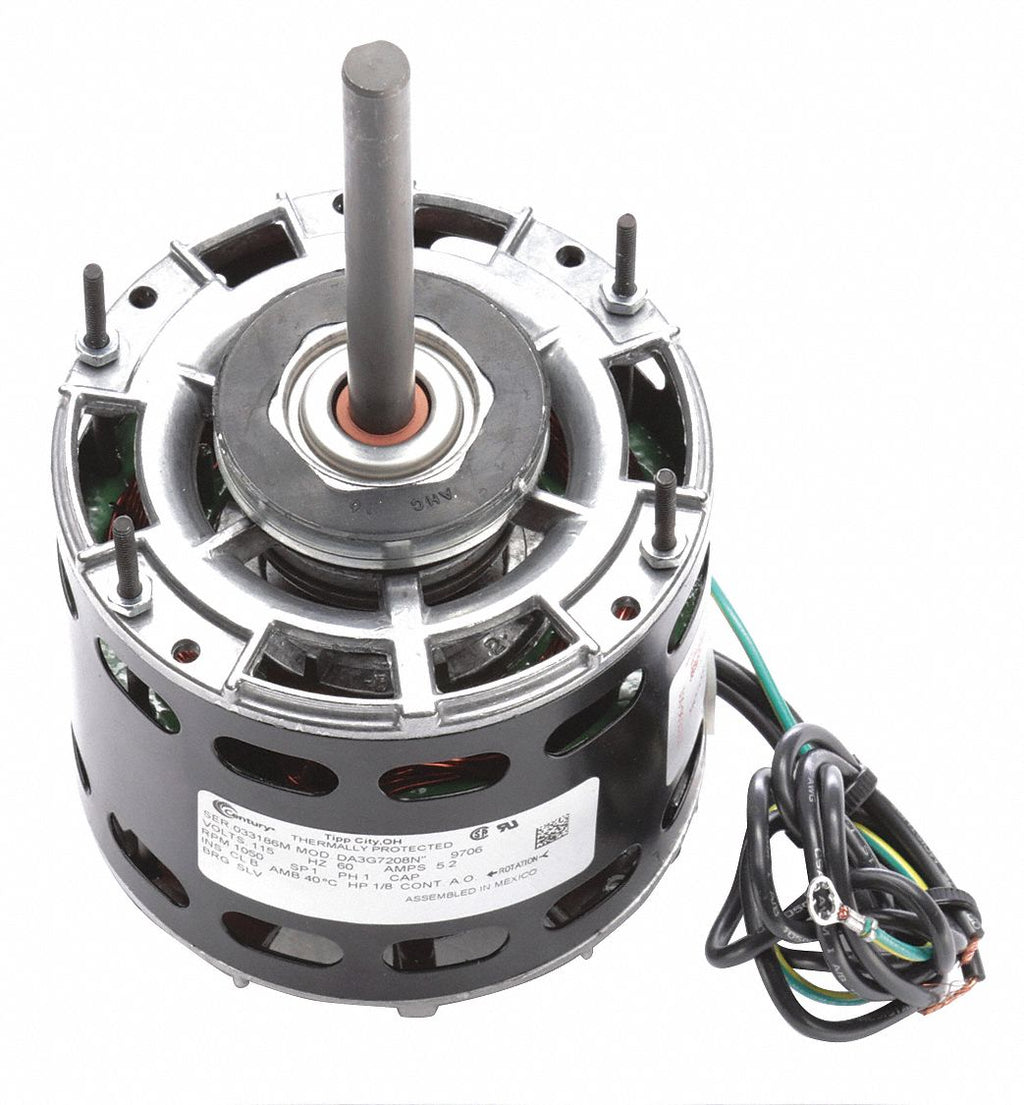

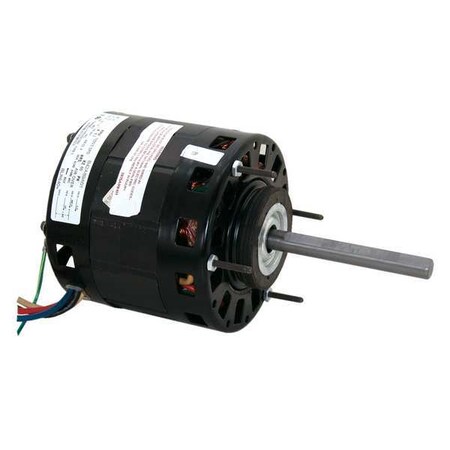

A.O. Smith 9706 1/8 HP 115 Volt 1050 RPM Blower Motor 9706

A.O. Smith 9706 1/8 HP 115 Volt 1050 RPM Blower Motor 9706zoom

Attributes

Key Value
9706 is listed in Centu.A.O. Smith DA3G208, A.O.
Amps5.2
ApplicationRoom Air Conditioners, .
BearingsSleeve
Body Dia.5 in
Bolt Circle Dia.4 5/8 in
BrandCentury
Capacitor RequiredNo
Country of Origin (subj.Mexico
DutyContinuous
Duty CycleContinuous
Enclosure TypeOAO (Open Air Over)
Frame42Y
Full Load Amps5.0
HP1/8
Hz60, 60 Hz
IncludesResilient Mounting Ring
Ins. ClassB
Insulation ClassB
International ShippingNo
ItemDirect Drive Blower Mot.
Lead Length26 in
Length Less Shaft5 3/16 in
Max. Ambient Temp.40 Degrees C
Maximum Ambient Tempera.40? C
Motor ApplicationHVAC/R
Motor BearingsSleeve
Motor DesignShaded Pole
Motor Diameter5"
Motor Enclosure DesignOpen Air-Over
Motor Frame MaterialSteel
Motor Mounting PositionHorizontal
Motor Mounting TypeRing
Motor Service Factor1
Motor Shaft DesignFlat
Motor Shaft RotationCCWLE
Motor Sub ApplicationDirect Drive Fan/Blower
Motor Thermal ProtectionAuto
MountingBand/Ring/Stud
Mounting Holes4
Mounting Stud LocationShaft End
Mounting Stud Pattern2-5/16 in x 4 in
Mpn9706
Nameplate RPM1,050
No. of Speeds1
Number of Shafts1
Number of Speeds1
Overall Length8 3/4 in
Phase1, Single
Product TypeShaded Pole
Resilient Ring Dia.2 1/2 in
Ring to Ring Center4 13/16 in
RotationCW Shaft End
RPM1050
RPM Range1,001-1,100
Service Factor (SF)1.00
Shaft Dia.1/2 in
Shaft Diameter1/2"
Shaft Length4-1/2", 4 1/2 in
Ship Weight9 lbs.
SKUZO-G2777311
StandardsCSA Certified, UL Recog.
Stud Quantity4
Stud Size#8-32
SubCategoryMotors/Ac Motors
Thermal ProtectionAutomatic
UPC00786674009692
Usable @ 200VNo
Usable @ 208VNo
Voltage115V AC
Voltage Compatibility115/208-230V AC, 115/23.
Volts115
Weight9 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomVoomi Supply970614.991In StockCentury Motors14.99 @ 1
thumbzoomktool.net9706147.121In StockCentury147.12 @ 1
thumbzoomcshincorporated.comU9706154.761In StockAO Smith / Century9.0154.76 @ 1
thumbzoomSquare One9706162.541In StockCENTURY162.54 @ 1
thumbzoomZoroG2777311170.241In StockCentury9.15170.24 @ 1
thumbzoomsustainablesupply.comC1561895176.491In StockCentury9.15176.49 @ 1
thumbzoomemotorpro.com9706180.191In StockCentury9.0180.19 @ 1
thumbzoomsimsupply.comZO-G2777311195.511In StockCentury195.51 @ 1
thumbzoommidwestapplianceparts.com9706-AO-P202.511In StockAO Smith202.51 @ 1
