- mpn48576
- brandname: CHICAGO-LATROBE
- manufacturername: CHICAGO-LATROBE

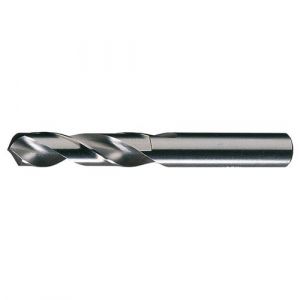

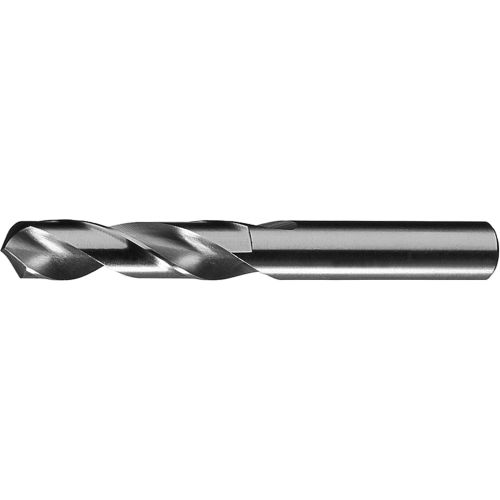

Chicago Latrobe 1-3/16" Dia. 6-5/8" OAL High Speed Steel Screw Machine Drill
- Brand: Chicago Latrobe
- PartNumber: 48576
- Manufacturer: Chicago Latrobe
- Label: Chicago Latrobe
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Bit Dia. | 1-3/16" |
| Cutting Depth | 3XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 1.1875 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 1.1875" |
| Diameter (Fraction) | 1-3/16" |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 118 Degrees |
| Drill Bit Size | 1 3/16 in |
| Drill Construction | General Purpose |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in /-0.0015 in |
| Drill Length Class | Screw Machine Length |
| Drill Point Length | 0.3568 in |
| Drill Size - Decimal In. | 1.1875 in |
| Drill Size - Fraction | 1-3/16 in |
| Drill Size System | Fractional |
| Drill Style | Screw Machine Drill |
| Drilling Length | 4-1/4" |
| Finish | Black Steam Oxide |
| Flute Length | 4 1/4 in, 4-1/4 in, 4.2. |
| Flute Length (Metric) | 107.95mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Item | Screw Machine Drill Bit |
| Material | HSS |
| Maximum Drilling Depth | 4 1/4 in |
| Measurement System | Imperial |
| Number of Flutes | 2 |
| Overall Length | 6-5/8 in, 6.6250", 6 5/. |
| Overall Length (Metric) | 168.27mm |
| Point Angle | 118 deg, 118? |
| Point Style | Radial |
| Point Type | Radial |
| Series | 157 |
| Shank Configuration | Reduced |
| Shank Dia. | 1 in |
| Shank Length | 2.3750", 2 1/4 in |
| Shank Length (Metric) | 60.32mm |
| Shank Size | 1.0000", 1", 1 in Dia x. |
| Shank Size (Metric) | 25.40mm |
| Shank Type | Straight, Reduced |
| Sizes Included | 1-3/16" |
| SKU | 48576 |
| Style | 157 |
| Surface Condition | Steam Oxide |
| Tool Size | 1-3/16" |
| Type | General Purpose |
| UPC | 6.62E+11 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G2993109 | 79.29 | 1 | In Stock | 8 | Chicago-Latrobe | 1.33 | 79.29 @ 1 |
 | Megadepot | 48576 | 81.94 | 1 | In Stock | | Chicago-Latrobe | | 81.94 @ 1 |
 | heavydutydepot.com | 48576 | 81.94 | 2 | In Stock | | Chicago-Latrobe | | 81.94 @ 2 |
 | MRO Supply | 6130067 | 82.47 | 1 | In Stock | | Chicago-Latrobe | | 82.47 @ 1 |
 | Global Industrial | WBB2545970 | 87.95 | 1 | In Stock | | Chicago-Latrobe | | 87.95 @ 1 |
 | usmegastore.com | 48576 | 91.81 | 1 | In Stock | | Chicago-Latrobe | | 91.81 @ 1 |
 | National Supply Network | 81353724 | 119.12 | 1 | In Stock | | Chicago-Latrobe | | 119.12 @ 1 |
 | bscsource.com | 48576 | 162.59 | 1 | In Stock | | Chicago-Latrobe | | 162.59 @ 1 |
 | imsbolt.com | 48576 | 185.18 | 1 | In Stock | | CHICAGO-LATROBE | | 185.18 @ 1 |
 | Guardian | 81353724 | 188.12 | 1 | In Stock | | Chicago-Latrobe | | 188.12 @ 1 |
