- mpn4Z010
- brandname: DAYTON
- manufacturername: DAYTON

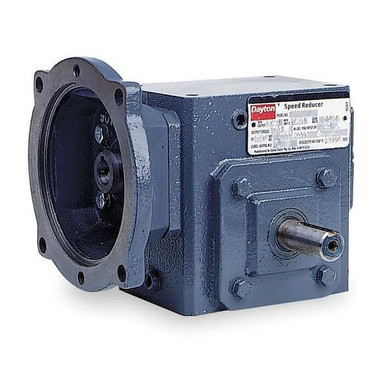

Speed Reducer, C-Face, 56C, 30:1
- Brand: Dayton
- PartNumber: 4Z010
- Model: 4Z010
- Manufacturer: DAYTON
- Label: DAYTON
Attributes
| Key | Value |
|---|
| Bearings | Ball |
| Bore Dia. | 5/8" |
| Brand | Dayton |
| Current Stock | 3 |
| Dimension U | 1 in |
| Duty | Standard |
| Finish | Powdered Epoxy Paint |
| Frame | 56C |
| Gear Material | Hardened Steel, Mangane. |
| Gear Type | Worm |
| Housing Material | Cast Iron |
| Input RPM | 1750 rpm, 1750 |
| Input Shaft Diameter | 5/8 in |
| International Shipping | No |
| Item | Speed Reducer |
| Lead Time | Expected to ship in 1-2. |
| Lubrication | Kluber Food Grade, Klub. |
| Max. Input HP | 0.75 hp, 3/4 |
| Max. Output Torque | 610 in.-lb. |
| Max. Torque (In.-Lbs.) | 610 |
| Mounting | Any Position Except Inp. |
| Mpn | 4Z010 |
| NEMA/IEC Frame | 56C |
| Nominal Output RPM | 58, 58 RPM |
| Nominal Ratio | 30:1 |
| Number of Stages | 1 |
| Oil Seal | Double Lip |
| Output Shaft Dia. | 1 in |
| Output Shaft Diameter | 1 in |
| Output Torque @ 1 HP | 610 in-lbs |
| Output Torque @ 1/2 HP | 397 in-lb |
| Output Torque @ 1/2 HP . | 397 |
| Output Torque @ 1/40 HP | 3,600 in-lbs, 3600 in.-. |
| Output Torque @ 3/4 HP | 610 in-lb, 397 in-lbs |
| Output Torque @ 3/4 HP . | 610 |
| Overhung Load | 875 lb, 875 lb. |
| Overhung Load (Lb.) | 875 |
| Pinion Material | Hardened Steel |
| Prop 65 | WARNING: Cancer and Rep. |
| Rotation | CW/CCW, Forward/Reverse |
| Seal Type | Double Lip |
| Shaft Assembly | Double Output |
| Shaft Orientation | Right Angle |
| Ship Weight | 29 lbs. |
| Single/Double Output/Un. | Double Output |
| SKU | ZO-G2995842 |
| Solid/Hollow Output Sha. | Solid |
| Speed Reducer Type | C-Face |
| Standards | AGMA |
| SubCategory | Power Transmission |
| Type | C-Face |
| UPC | 190735339824 |
| Worm Center Distance | 2.06 in, 2.06" |
| Worm Gear Material | Bronze |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G2995842 | 527.99 | 1 | 20 | | Dayton | 28.9 | 527.99 @ 1 |
 | simsupply.com | ZO-G2995842 | 592.95 | 1 | 3 | | Dayton | | 592.95 @ 1 |
 | sustainablesupply.com | C2777243 | 671.28 | 1 | In Stock | | Dayton | 28.9 | 671.28 @ 1 |
| AmazonTP | B000LESQ3I | 682.45 | 1 | In Stock | 3 | Dayton | | 682.45 @ 1 |
| AmazonSC | B000LESQ3I | 757.82 | 1 | In Stock | | Dayton | | 757.82 @ 1 |
| grainger.ca | WWG4Z010 | 780.1325791 | 1 | In Stock | | DAYTON | 28.9 | 780.1325791 @ 1 |
 | Raptor Supplies | AE2QQP | 866.706048 | 1 | In Stock | | DAYTON | | 866.706048 @ 1 |
 | emotorpro.com | 4Z010 | 1062.6 | 1 | In Stock | | Dayton | 29.0 | 1062.6 @ 1 |
