Hubbell Wiring Device-Kellems HBLS460C6W

B07VMBKLJ4

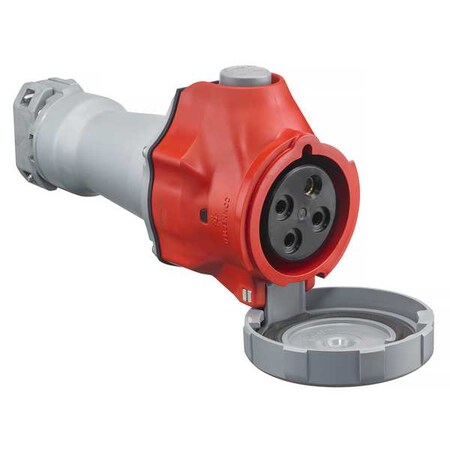

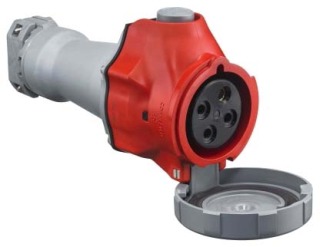

Pin and Sleeve Connector,3 Poles,4 Wires

Pin and Sleeve Connector,3 Poles,4 Wireszoom

Attributes

Key Value
Amperage60/63 A
Amps - Plugs and Recept.60
ApprovalsUL
Aux/Pilot ContactsNone
Body Material - Pin and.Valox 357
Built-In Strain ReliefYes
Cap TypeSpring-Loaded Cap
Case MaterialNon-Metallic
ColorRed
Color - Plugs and Recep.Red
Compatible with SeriesAdvantage Switch-Rated
Connection DescriptionWater Resistant
Connection OrientationStraight
Contact MaterialBeryllium Copper
Country of Origin (subj.United States
Current / amperage rati.60/63 A
Current Rating60/63 A, 60 A
Family SeriesHubbell Plugs & Recepta.
FeaturesColor Coded Housings fo.
For EnvironmentWet
For Maximum Cable Diame.1.45 in
For Minimum Cable Diame.0.5 in
Gross Weight3.5 lbs
GroundingGrounded
Grounding StyleIEC
Horsepower Rating10 hp
Housing ColorRed
Housing ColourRed
Housing MaterialPBT
Housing Material GradeValox 357
Housing Material TypeNon-Metallic
HP40 hp
IP RatingIP69K, IP68, IP69K
ItemWatertight Pin and Slee.
Item - Plugs and Recept.Watertight Pin and Slee.
Item NumberHBLS460C6W
Lockout-TagoutNo
ManufacturerHubbell
Manufacturer Part NumberHBLS460C6W
MarketIndustrial
Maximum Operating Tempe.75 Degrees C, 75 Degre.
Maximum Wire Size2 AWG
Minimum Operating Tempe.-40 Degrees C, -40 Deg.
Minimum Wire Size8 AWG
NEMA Enclosure Rating4x
NEMA Rating4x
Net Weight0 lbs
Number of poles3-Pole
Number of Poles3
Number of Wires4
Number of wires4-Wire
Outside Diameter5.17 in
Overall Length12.22 in
PhaseThree
Phase - Electrical3
Pin & Sleeve StandardsIEC 60309
Power Indicating LightYes
Power IndicationYes
Product SeriesAdvantage
Resistance PropertiesCorrosion Resistant, Im.
Reverse ServiceNo
SeriesAdvantage Switch-Rated
ShroudedYes
StandardsUL, UL Listed
StyleIP69k NEMA 4X
Switch RatedYes
Temperature Range (F)-40-167 ?F
Terminal TypeScrew
TypeConnector
UL 94 Flammability Rati.V-0
Voltage415 V, 380-415 VAC
Voltage - Plugs and Rec.380/415V AC
Voltage Color CodeRed
Voltage Rating380 to 415V AC
Voltage rating descript.380-415 VAC
Wire Connection TypeScrew Terminals
Wire Size2 AWG, 3 AWG, 4 AWG, 5 .
Wire Size Range8-2 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG2117287750.381In Stock32Hubbell3.5750.38 @ 1
thumbzoomsustainablesupply.comC2890488825.951In StockHubbell Kellems3.5825.95 @ 1
thumbzoomMRO Supply5019071853.331In StockHubbell Wiring853.33 @ 1
thumbzoomturtle.comHUB HBLS460C6W923.431In StockHubbell923.43 @ 1
thumbzoomgordonelectricsupply.comHBLS460C6W928.01In StockHUBBELL928.0 @ 1
thumbzoomGalcoHBLS460C6W-HBBL941.181In StockHubbell3.5941.18 @ 1
thumbzoomNewark93Y57511094.41In StockHUBBELL WIRING DEVICES1094.4 @ 1
grainger.caHBLHBLS460C6W1567.065960421In StockHUBBELL WIRING DEVICE-KELLEMS3.51567.06596042 @ 1
