Jet 320038

mpn320038
brandname: Jet
manufacturername: Jet

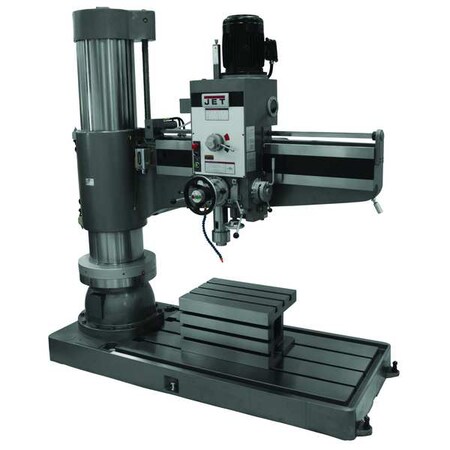

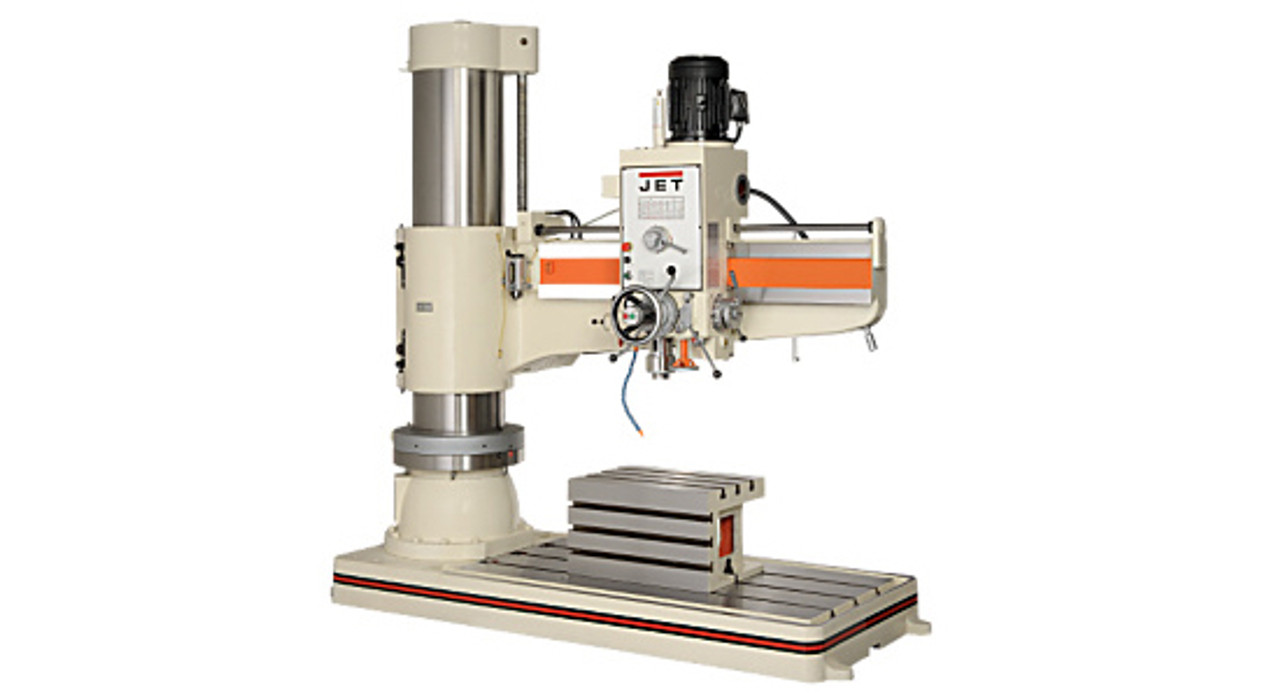

JET 320038 7.5 HP Radial Drill Press

Brand: Jet
PartNumber: 320038
PackageQuantity: 1
Binding: Misc.
Manufacturer: JET
Label: JET

Attributes

Key	Value
Amps AC	12.0/6.0
Base Height	8 1/4 in
Base Length	97 5/8 in
Base Size	97-5/8 in x 41-11/32 in
Base Width	41 3/8 in
Capacity Cast Iron	2 5/16 in
Capacity Steel	2 1/12 in
Chuck Size	Not Included
Column Dia.	17 in
Column Diameter	17 in
Coolant System	Yes
Corded/Banded	Corded
Corded/Cordless	Corded
Country of Origin (subj.	Taiwan, Province of Chi.
Current	19/9.5 A
Drill Press Application	Drilling, Tapping
Drill Press Product Gro.	General Purpose Drill P.
Drill Press Type	Floor Stand
Drilling Capacity in Ca.	2 5/16 in
Drilling Capacity in St.	1 5/8 in
Drilling Capacity in St.	2 1/2 in
Drilling Capacity in Wo.	2 5/16 in
Drilling Capacity Wood	Not Specified
Drive Type	Geared Head
Guard Included	No
Horsepower	7 1/2 hp
Hz	60
Includes	Box Table, Built-in Wor.
Item	Radial Floor Drill Press
Max. Spindle To Base	63 in
Maximum Overall Height	112 in
Maximum Spindle Speed	1,920 RPM
Maximum Spindle-to-Base.	63 in
Minimum Spindle Speed	40 RPM
Motor HP	7 1/2 hp
Motor Voltage	230/460V AC ; Three-Pha.
Nominal Voltage	230/460V AC
Number of Speeds	12
Number of Spindle Speeds	12
Number of T-Slots	3
Overall Depth	112 in
Overall Height	116 in
Overall Length	116 in
Overall Width	55 in
Phase	3
Power Down Feed Included	Yes
Power Source	Corded
Primary Material Applic.	Metal
Quill Dia.	8 1/4 in
Quill Diameter	8 1/4 in
Radial Arm	Yes
Radial Arm Length	5 ft
Reversible	Yes
Speed Adjustment	Gear Head
Speed Control	Variable
Speed Range	40 to 1,920 RPM
Spindle Speed	40 to 1920 rpm
Spindle Speed Range	40 RPM - 1,920 RPM
Spindle Taper	5MT
Spindle to Table	35 in
Spindle Travel	14 9/16 in
Spindle-to-Column Dista.	13 3/8 in to 62 1/4 in
Swing	5 in
Table Length	27 7/8 in
Table Shape	Rectangular
Table Slot	Yes
Table Slot Size	7/8 in
Table Width	19 5/8 in
Table Work Surface	27-7/8 x 19-5/8 x 15-3/.
Tapping Capacity in Sta.	1 1/2 in
Tapping Capacity in Ste.	2 in
Tapping Compatible	Yes
Voltage	230/460

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Weight	Preferred Tier
toolsplus.com	JET320038	47998.0	1	In Stock	JET		47998.0 @ 1
JB Tools	JB-DS-WLT-320038	54059.0	1	In Stock	Jet		54059.0 @ 1
penntoolco.com	101820	55999.0	1	In Stock	Jet		55999.0 @ 1
internationaltool.com	JET-320038	55999.0	1	In Stock	Jet		55999.0 @ 1
ToolUp.com	JET 320038	55999.0	1	In Stock	Jet		55999.0 @ 1
Zoro	G9879326	62238.22	1	In Stock	Jet	11000.0	62238.22 @ 1
Guardian	62111851	80782.42	1	In Stock	Jet		80782.42 @ 1
