Jet 321504

mpn321504
brandname: JET
manufacturername: JET

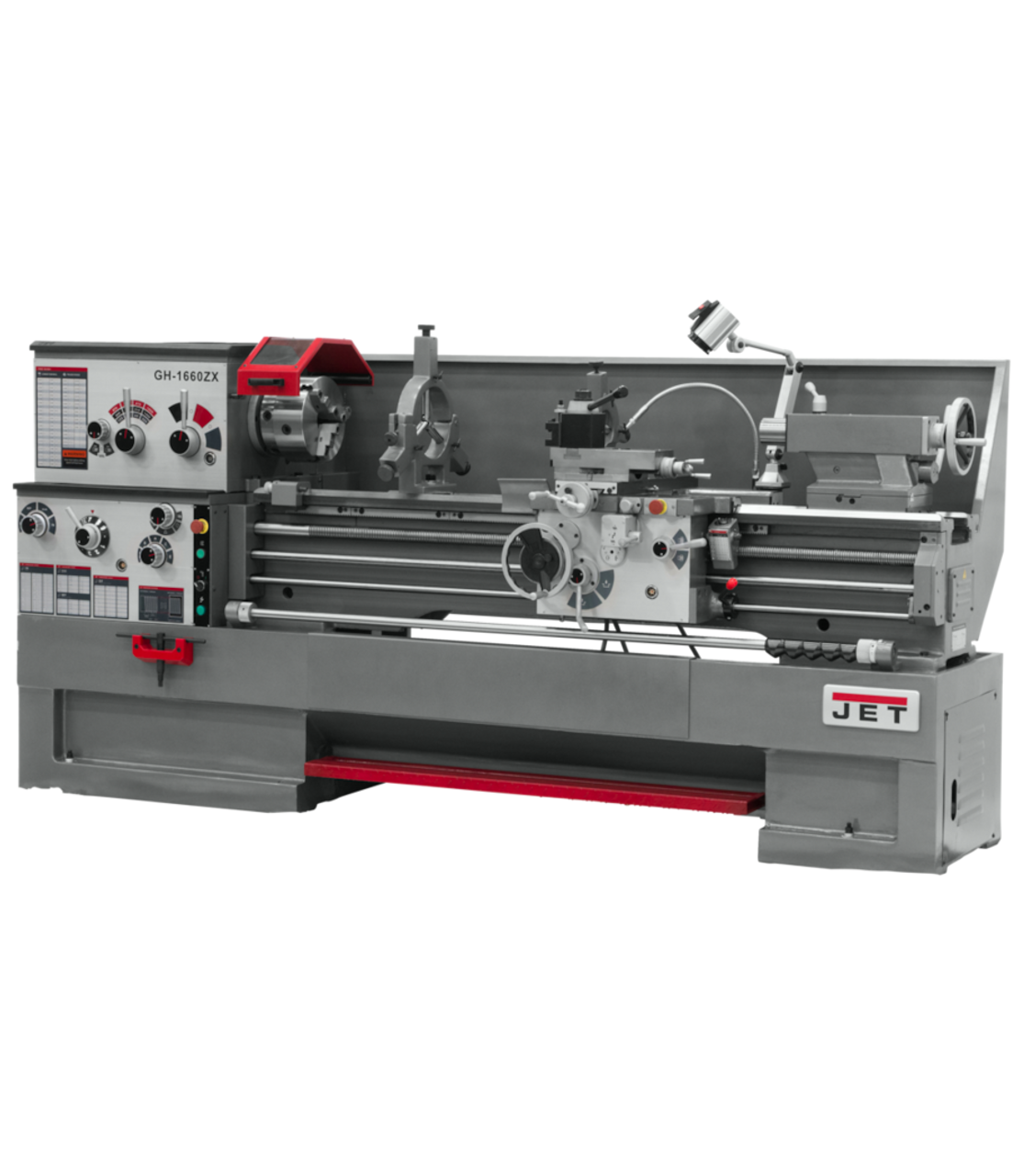

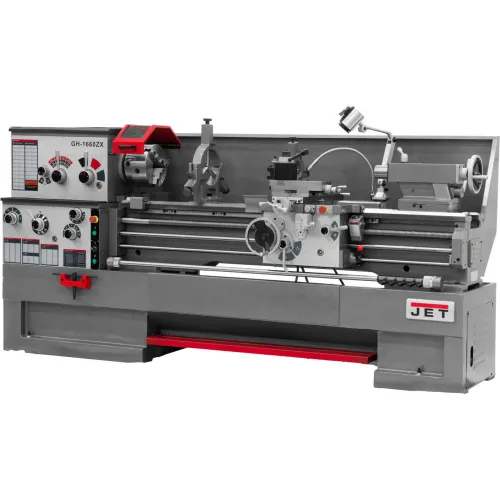

Jet GH-1860ZX With ACU-RITE 200S DRO With Taper Attachment (321504)

Brand: Jet
PartNumber: 321504
PackageQuantity: 1
Manufacturer: Jet
Label: Jet

Attributes

Key	Value
Accessory 1	Taper Attachment </td
Bed Width	13 1/8 in
Carriage Travel (In.)	55-9/16 </td
Compound Slide Travel (.	5-1/8 </td
Condition	New
Country of Origin (subj.	China
Cross Slide Travel (In.)	9 </td
Digital Readout	ACU-RITE 200S </td
Distance Between Centers	60 in
Distance Between Center.	60 </td
Drive	Geared Head </td
Features	Corner Radius Precision.
Finish - Machining	Chrome
Follow Rest Capacity (I.	1/2 - 3-1/2 </td
Gap Length	12 in
Horsepower	7-1/2 HP, 7.5 HP
Includes	10 in 3-jaw scroll chuc.
Item	Lathe
Length of Gap (In.)	12 </td
Machine Type	Engine lathe
Manufacturer	Jet
Max Tool Size (In.)	1 x 1 </td
Max. Cross Feed	0.0360 IPR
Max. Metric Thread	20.00mm
Max. Spindle Speed	1800 RPM
Min. Cross Feed	0.0006 IPR
Min. Metric Thread	0.05mm
Min. Spindle Speed	25 RPM
Min. Threads per Inch	1-5/8
Motor (HP)	7-1/2 HP, 230/460, 3 Ph.
Motor Phase	3 Ph
Number of Inch Threads	61, 61 </td
Number of Longitudinal .	122 </td
Number of Metric Threads	24, 24 </td
Number of Spindle Speeds	12 </td, 12
Overall Dimensions (L x.	115 x 44 x 66 </td
Overall Length	4 in
Phase	3
Prewired (V.)	230 </td
Range of Cross Feeds (I.	.0006 - .0365 </td
Range of Inch Threads (.	1-5/8 - 72 </td
Range of Longitudinal F.	.0015 - .0913 </td
Range of Metric Threads	.05 - 20 </td
Range of Spindle Speeds.	25 - 1,800 </td
Size	18 x 60 </td
SKU	321504
Spindle Bore	3 1/8 in
Spindle Bore (In.)	3-1/8 </td
Spindle Mount	D1-8 </td
Spindle Taper with Slee.	MT-7 (MT-5) </td
Stationary type	Engine - Large Spindle .
Steady Rest Capacity (I.	3/8 - 7-3/4 </td
Style (Type)	Engine - Large Spindle .
Swing Over Bed	18 in
Swing Over Bed (In.)	18 </td
Swing Over Cross Slide	11 in
Swing Over Cross Slide .	11 </td
Swing Through Gap (In.)	27-1/2 </td
Tailstock Spindle Trave.	5 </td
Tailstock Taper	5 in
Taper in Tailstock Spin.	MT-5 </td
Voltage	230/460V
Warranty	2 Year
Weight (Lbs.)	6,245 </td
Width of Bed (In.)	13-1/8 </td

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
Zoro	G1939977	28599.0	1	In Stock	10	Jet	6700.0	28599.0 @ 1
internationaltool.com	JET-321504	35329.0	1	In Stock		Jet		35329.0 @ 1
Global Industrial	WBB0230766	38559.0	1	In Stock	24	JET		38559.0 @ 1
JB Tools	JB-DS-WLT-321504	38559.0	1	In Stock		Jet		38559.0 @ 1
toolsplus.com	JET321504	38559.0	1	In Stock		JET		38559.0 @ 1
elitemetaltools.com	2326	38559.0	1	In Stock		JET	6700.0	38559.0 @ 1
ToolUp.com	JET 321504	38559.0	1	In Stock		Jet		38559.0 @ 1
AceTool	JET-321504	38559.0	1	In Stock		Jet	6245.0	38559.0 @ 1
burnstools.com	321504	38559.0	1	In Stock		Jet		38559.0 @ 1
TylerTool	JETN321504	38559.0	1	In Stock		JET		38559.0 @ 1
imsbolt.com	321504	38559.0	1	In Stock		JET		38559.0 @ 1
