- mpn321549
- brandname: JET
- manufacturername: JET

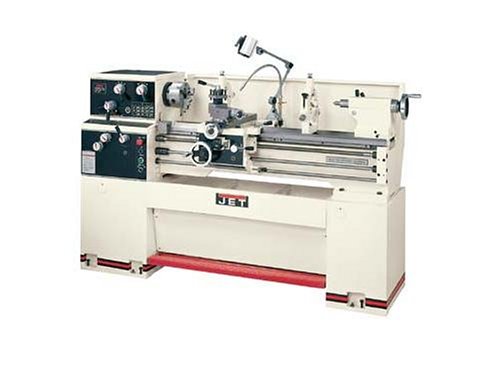

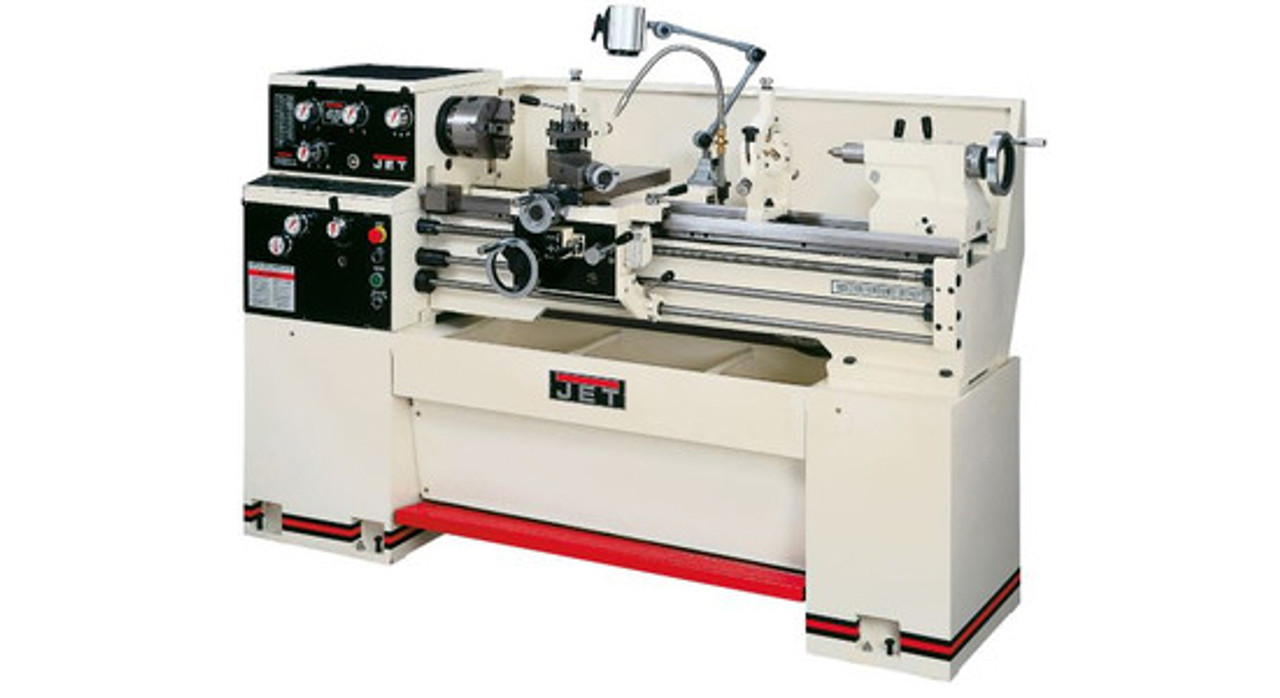

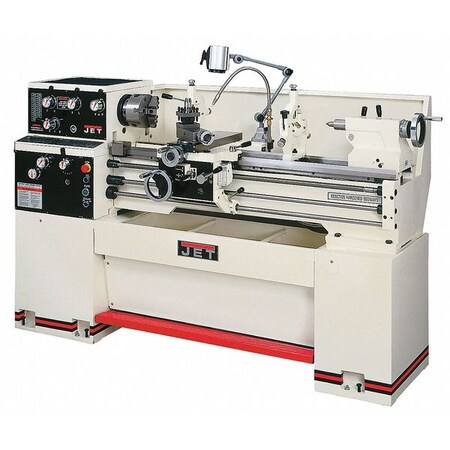

Jet 321549 GH-1440W-1 14-Inch Swing by 40-Inch between Centers 230-Volt 1 Phase Geared Head Engine Metalworking Lathe with Acu-Rite 200T Digital Read Out
- Brand: Jet
- PartNumber: 321549
- Model: 321549
- PackageQuantity: 1
- Binding: Tools & Home Improvement
- Manufacturer: WMH Tool Group
- Label: WMH Tool Group
Attributes
| Key | Value |
|---|
| Bed Width (In.) | 10-1/2 |
| Carriage Travel (In.) | 37-1/2, 37-1/2 </td |
| Compound Slide Travel (. | 3-1/2 </td |
| Compound Travel (In.) | 3-1/2 |
| Country of Origin (subj. | China |
| Cross Feed Rates | 40 |
| Cross Slide Travel (In.) | 6-3/8 </td |
| Cross Travel (In.) | 6-3/8 |
| Digital Readout | ACU-RITE 200S </td |
| Distance Between Center. | 40 </td, 40 |
| Drive | Geared Head </td |
| Features | 1-1/2" bore spindle sup. |
| Follow Rest Capacity (I. | 2-3/4 </td |
| Gap Length (In.) | 9-3/8 |
| Includes | Full length splash guar. |
| Item | Lathe |
| Length of Gap (In.) | 9-3/8 </td |
| Longitudinal Feed Rates | 40 |
| Max Tool Size (In.) | 5/8 x 5/8 </td |
| Motor (HP) | 3 HP, 230V, 1Ph </td |
| Motor HP | 3 |
| Number of Inch Threads | 40 </td |
| Number of Longitudinal . | 40 </td |
| Number of Metric Threads | 22 </td |
| Number of Spindle Speeds | 12 </td, 12 |
| Number of Threads (In.) | 40 |
| Number of Threads (mm) | 22 |
| Overall Dimensions (L x. | 78 x 38 x 59 </td |
| Overall Height | 55-1/2" |
| Overall Length | 77-1/4" |
| Overall Width | 29-3/4" |
| Phase | 1 |
| Prewired (V.) | 230 </td |
| Range of Cross Feeds (I. | .0003 - .0103 </td |
| Range of Inch Threads (. | 4 - 112 </td |
| Range of Longitudinal F. | .0012 - .0294 </td |
| Range of Metric Threads | .45 - 7.5 </td |
| Range of Spindle Speeds. | 40 - 1,800 </td |
| Size | 14 x 40 </td |
| Spindle Bore (In.) | 1-1/2, 1-1/2 </td |
| Spindle Mount | D1-4 </td |
| Spindle Speed (RPM) | 40 to 1800 |
| Spindle Taper | MT-5 |
| Spindle Taper with Slee. | MT-5 (MT-3) </td |
| Steady Rest Capacity (I. | 3-3/4 </td |
| Style (Type) | Engine - Geared Head . |
| Swing In Gap (In.) | 20 |
| Swing Over Bed (In.) | 14, 14 </td |
| Swing Over Cross Slide . | 8-1/2 </td, 8-1/2 |
| Swing Through Gap (In.) | 20 </td |
| Tailstock Spindle Trave. | 4-3/4 </td |
| Tailstock Taper | MT-3 |
| Tailstock Travel (In.) | 4-3/4 |
| Taper in Tailstock Spin. | MT-3 </td |
| Thread Range (In.) | 7/16 to 7-1/2 |
| Thread Range (mm) | 4 to 112 |
| Voltage | 230 |
| Weight (Lbs.) | 2,191 </td |
| Width of Bed (In.) | 10-1/2 </td |
