SCHNEIDER ELECTRIC 9001K2L38LYAH13

B0078R6NA4

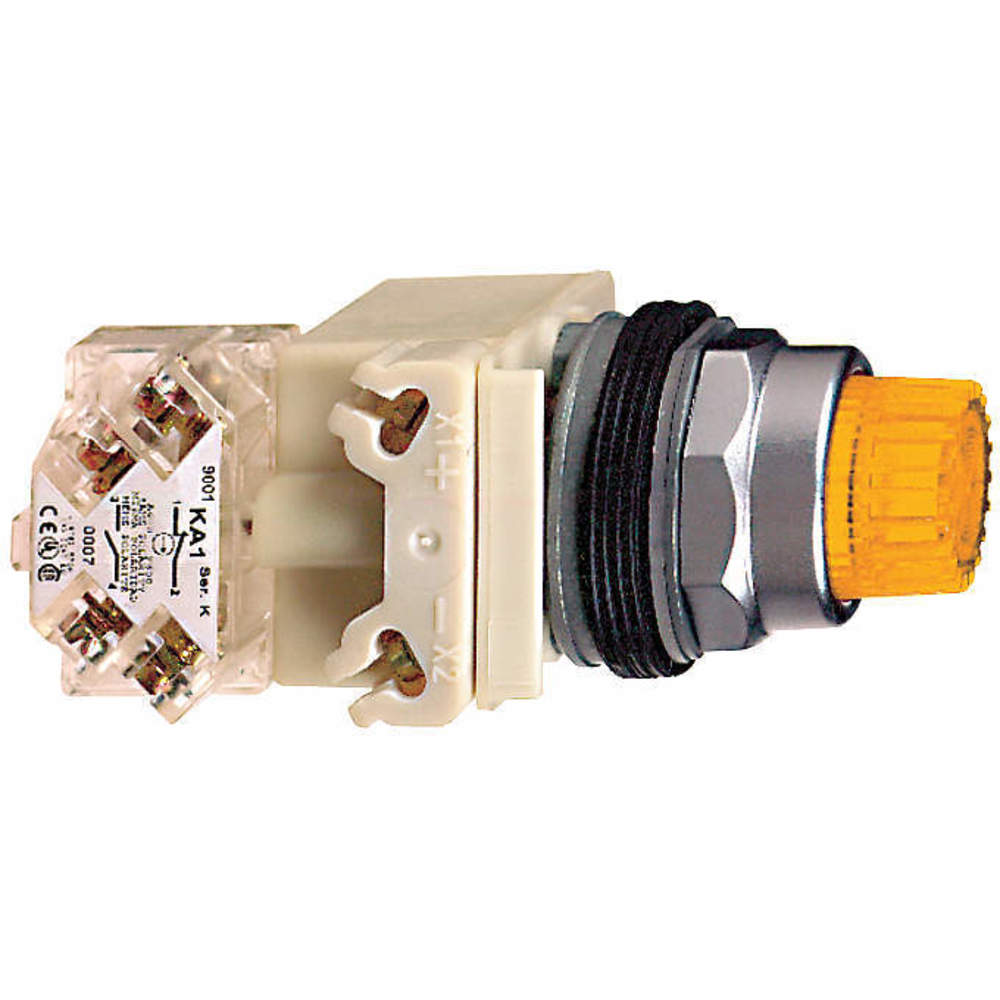

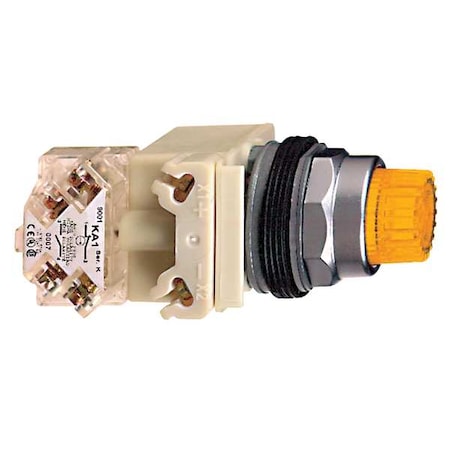

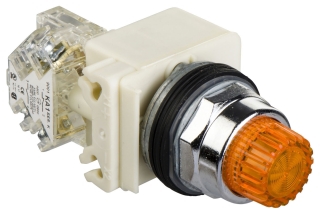

SCHNEIDER ELECTRIC 9001K2L38LYAH13 Pushbutton 600-Vac 10-Amp 30-Mm T-K Electrical Box

SCHNEIDER ELECTRIC 9001K2L38LYAH13 Pushbutton 600-Vac 10-Amp 30-Mm T-K Electrical Boxzoom

Attributes

Key Value
ActionStandard, Momentary
Actuatorspring return;Amber pro.
Actuator TypeRound, Button
Amperage Rating0.55 A 125 V, DC-13, A6.
ASINB0078R6NA4
Basic MaterialMetal
Batteries Required?No
BezelChrome Plated Zinc Die .
Bezel MaterialMetal
BrandSchneider Electric
Cad Overall Depth103 mm
Cad Overall Height42 mm
Cad Overall Width54 mm
Catalog Number9001K2L38LYAH13
CategorySwitches
CircuitSPDT
ColorAmber, Yellow
Color - Actuator/CapAmber
ColourAmber
ConnectionScrew Clamp Terminals 1.
Connection TypeScrew Clamp Terminals 1.
Contact Configuration1 C/O
Contact Form1NO/1NC
Contact Operation1 C/O
Contact Rating10A @ 600V AC, 10 A @ 6.
Country of OriginMX - Mexico, Mexico
Current Rating (Amps)550mA (DC)
Depth103 mm
DescriptionPUSH BUTTON 600VAC 10A .
Detailed DescriptionPushbutton Switch SPDT .
Diameter30 mm
Digi-Key Part Number4008-9001K2L38LYAH13-ND
ECCNEAR99
Electrical Life-
EnclosureNEMA 1-NEMA 12-NEMA 13-.
Environmental ConditionsWATER TIGHT, DUST TIGHT.
Features-
Head MaterialMetal
Height42 mm
IEC RatingIP66 IEC 60529
Illumination Type, ColorLED, Amber
Illumination Voltage (N.120 VAC/DC
Included Components9001K2L38LYAH13
IndicatorBA 9S,LED
Ingress ProtectionIP66 - Dust Tight, Wate.
Insulation250 V 3)IEC 60947-1
IP Rating66
ItemIlluminated Push Button
Item model number9001K2L38LYAH13
Item Package Quantity1
Item TypeIlluminated push-button
Knob StyleProjecting
Lamp Module TypeFull Voltage
Lamp Module Voltage120V AC
Lamp TypeLED
Lamp Voltage120V AC
Made in USANo
ManufacturerSchneider Electric
Manufacturer Product Nu.9001K2L38LYAH13
Manufacturer Standard L.1 Weeks
MaterialMetal
Mechanical Life5,000,000 Cycles
MfrSchneider Electric
MountingPanel Mount
Mounting Diameter30 mm
Mounting TypePanel Mount, Front
NEMA Contact Rating Des.A600/Q600
NEMA Rating1, 12, 13, 2, 3, 3R, 4,.
Number of Operators1
Operating Temperature-25?C ~ 70?C, -25-70 A .
Operator ShapeOctagonal
PackageBox
Panel Cutout DimensionsCircular - 30.00mm Dia
Part Number9001K2L38LYAH13
Product StatusActive
Rated Voltage120 V AC/DC
Replacement LampMfr. No. 25501-010-27
SeriesHarmony 9001K
Size30 mm, 1.18
Special FeaturesWITHOUT GUARD
Standard50 GN IEC 60068-2-27,7 .
StandardsCE, CSA, UL
Sub Brand9001K
Switch FunctionOn-On
Terminal ConnectionPressure Plate
Termination StyleScrew Terminal
TypeStandard, Illuminated
Type of OperatorRound Button
UNSPSC39122216
UNSPSC Code39122200
UPC785901521228
UPC Code785901521228
Voltage120V AC/DC
Voltage Rating120 V AC/DC
Voltage Rating - DC125 V
Warranty DescriptionContractual Warranty:18.
Width54 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Graybar25070506159.16321In StockSquare D (Schneider Electric)159.1632 @ 1
thumbzoomZoroG0865243189.991In StockSchneider Electric0.4189.99 @ 1
thumbzoomgordonelectricsupply.com9001K2L38LYAH13190.091In Stock10SQUARE D190.09 @ 1
AmazonB0078R6NA4210.521In StockSchneider Electric210.52 @ 1
mostelectric.com9001K2L38LYAH13215.7811SQUARE D/TELEMECANIQUE215.78 @ 1
standardelectricsupply.com2255146226.971In StockSchneider Electric226.97 @ 1
thumbzoomDigi-Key17152597230.731In StockSchneider Electric230.73 @ 1
thumbzoomsustainablesupply.comC1205474240.621In StockSchneider Electric0.4240.62 @ 1
industrialautomationparts.comAE-009464242.391In StockSchneider Electric242.39 @ 1
Newark72K5409245.481In StockSCHNEIDER ELECTRIC245.48 @ 1
us.rs-online.com71122110270.4712Schneider Electric270.47 @ 1
grainger.caSQD9001K2L38LYAH13310.964322641In StockSQUARE D0.4310.96432264 @ 1
thumbzoomcrescentelectric.com740208359.911In StockSchneider Electric359.91 @ 1
thumbzoomRaptor SuppliesAG7DMY379.99956151In StockSCHNEIDER ELECTRIC379.9995615 @ 1
