Schneider Electric LC1DT20GD

B00CONJZM0

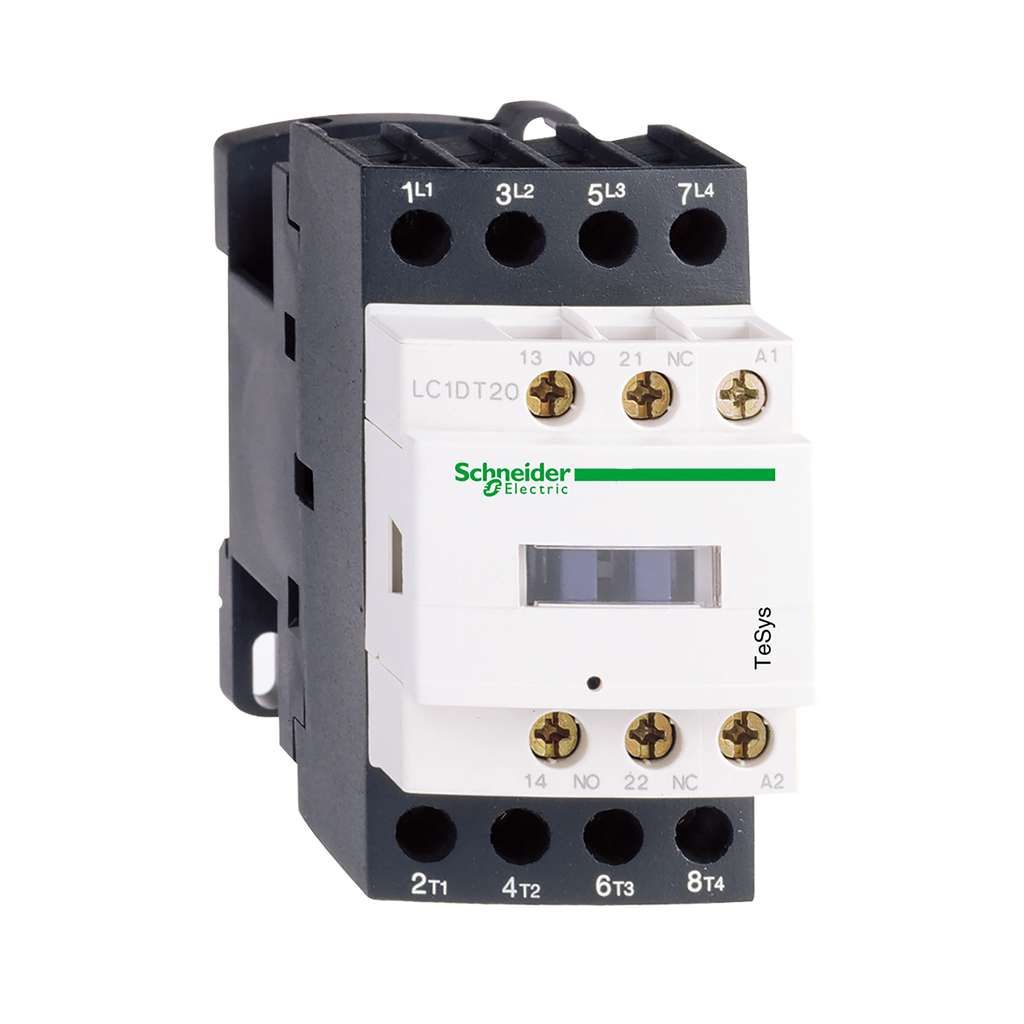

SCHNEIDER ELECTRIC Contactor 600-Vac 20-Amp Iec Plus Options LC1DT20GD Telefast 2 Module-16 Chan I/O Discrete Sig

SCHNEIDER ELECTRIC Contactor 600-Vac 20-Amp Iec Plus Options LC1DT20GD Telefast 2 Module-16 Chan I/O Discrete Sigzoom

Attributes

Key Value
[Icw] Rated Short-Time .30 A 40 ?C - 10 min pow.
[Ith] Conventional Free.10 A 60 ?C signalling c.
[Uc] Control Circuit Vo.125 V DC
[Ui] Rated Insulation V.power circuit 600 V CSA.
[Uimp] Rated Impulse Wi.6 kV IEC 60947
Ambient Air Temperature.-40-60 ?C || 60-70 ?C w.
Ambient Air Temperature.-60-80 ?C
ApplicationResistive Load
Aux. Contact Configurat.1NO/1NC
Auxiliary Contact Compo.1 NO + 1 NC
Auxiliary Contacts Typemechanically linked 1 N.
Average Impedance2.5 mOhm - Ith 20 A 50 .
California Proposition .Antimony oxide & Antimo.
China Rohs RegulationProduct out of China Ro.
Circularity ProfileENVEOLI1102030EN
Climatic WithstandIACS E10 || IEC 60947-1.
Coil Technologybuilt-in bidirectional .
Coil Volts125 V DC
Connections - Terminalscontrol circuit screw c.
Contactor ApplicationResistive Load
Control Circuit TypeDC standard
Control Circuit Voltage.0.1...0.25 Uc -40-70 ?C.
Depth99 mm
Device Short NameLC1D
Environmental DisclosureENVPEP110230EN
Eu Rohs DirectiveCompliant
Family NameTeSys Family
FeaturesBuilt-In Bi-Directional.
Fire RatingUL 94 V1
Fire Resistance850 ?C IEC 60695-2-1
Full Load Amps-Inductive20 A
Fuse Amps10 A (Signalling Circui.
Height85 mm
Hold-In Power Consumpti.5.4-5.4 W 20 ?C
Inrush Power In W5.4-5.4 W 20 ?C)
Insulation Resistance> 10 MOhm signalling ci.
Ip Degree Of ProtectionIP20 front face IEC 605.
Irms Rated Making Capac.140 A AC signalling cir.
ItemIEC Magnetic Contactor
Maximum Operating Rate3600 cyc/h 60 ?C
Mechanical Durability30 Mcycles
Mechanical Robustnessvibrations contactor op.
Mercury FreeYes
Minimum Switching Curre.5 mA signalling circuit
Minimum Switching Volta.17 V signalling circuit
Mounting Supportplate || rail
Mounting TypeDIN Rail Mount ; Panel .
Mounts OnPlate, Rail
Net Weight0.365 kg
Non-Overlap Time1.5 ms on de-energisati.
Number of Poles4
Operating Altitude0...9842.52 ft (0...300.
Operating Time16...24 ms opening || 5.
Overvoltage CategoryIII
Pole Contact Composition4 NO
Poles Description4P
Pollution Degree3
Power Dissipation Per P.1.56 W AC-1
Product CertificationsDNV || LROS (Lloyds reg.
Product NameTeSys D || TeSys Deca
Product Or Component Ty.contactor
Protective Coverwith
Protective TreatmentTH IEC 60068-2-30
Pvc FreeYes
RangeTeSys || TeSys Deca
Rated Breaking Capacity250 A 440 V power circu.
Rated Insulation Volts600/690V
Rated Voltage690V AC, 300V DC
Reach RegulationReference contains Subs.
Rohs Exemption Informat.Yes
Safety Reliability LevelB10d = 1369863 cycles c.
SeriesLC1D, TeSys Deca Series
Signalling Circuit Freq.25...400 Hz, 25 to 400 .
StandardsCSA C22.2 No 14, EN 609.
Sustainable Offer StatusGreen Premium product
Thermal Amperage10 A (at 60?C Signallin.
Tightening Torquecontrol circuit 1.7 N.m.
Time Constant28 ms
UPC Code785901126997
Utilisation CategoryAC-1
Vibration Resistance4 G (Contactor Closed),.
Warranty18 months
Width45 mm
Working HeightUp to 9842.52 ft
