NLV32T-820J-PF

mpnNLV32T-820J-PF
brandname: TDK Corporation
manufacturername: TDK Corporation

Fixed Inductors 82Uh 5%

Fixed Inductors 82Uh 5%

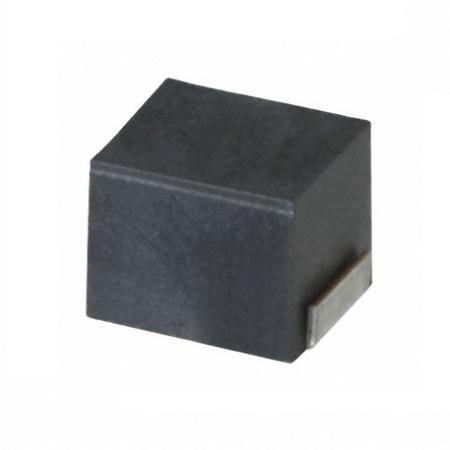

zoom

PartNumber: NLV32T-820J-PF
PackageQuantity: 1
Manufacturer: TDK
Label: TDK

Attributes

Key	Value
Alternate Part No.	810-NLV32T-820J-PF
Brand	TDK
Case Height	2.2 mm
Case Length	3.2 mm
Case Width	2.5 mm
Category	Inductors, Coils, Chokes
Core Material	Ferrite
Current - Saturation (I.	-
Current Rating (Amps)	45 mA
DC Resistance (DCR)	10Ohm Max
Frequency - Self Resona.	11MHz
Height - Seated (Max)	0.094" (2.40mm)
Inductance	82 uH, 82 ?H
Inductance Frequency - .	2.52 MHz
Manufacturer	TDK
Manufacturer Part No.	NLV32T-820J-PF
Material - Core	Ferrite
Maximum DC Current	45 mA
Maximum DC Resistance	10 Ohms
Mfr	TDK Corporation
Mounting Type	Surface Mount
Operating Temperature	-40?C ~ 105?C
Operating Temperature R.	- 40 C to + 105 C
Package	Tape & Reel (TR)
Package / Case	1210 (3225 Metric)
Package/Case	1210 (3225 Metric)
Packaging	Reel
Product	Inductors
Product Category	Fixed Inductors
Product Status	Not For New Designs
Q @ Freq	30 @ 2.52MHz
Q Minimum	30
Ratings	-
Self Resonant Frequency	11 MHz
Series	NLV-PF
Shielding	Unshielded
Size / Dimension	0.126" L x 0.098" W (3..
Supplier Device Package	1210
Termination Style	SMD/SMT
Test Frequency	2.52 MHz
Tolerance	5 %, ?5%
Type	Standard Circuit Induct.
Unit Weight	50 mg

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Future Electronics	1887728	0.1224	2000	10		TDK		0.1224 @ 2000
	Digi-Key	5880154	0.226	1	1929		TDK Corporation		0.226 @ 10
	swatee.com	NLV32T-820J-PF	0.56	1	1874		TDK		0.56 @ 10
