Texas Instruments LM5001SDE/NOPB

mpnLM5001SDE/NOPB
brandname: Texas Instruments
manufacturername: Texas Instruments

LM5001SDE/NOPB

LM5001SDE/NOPB

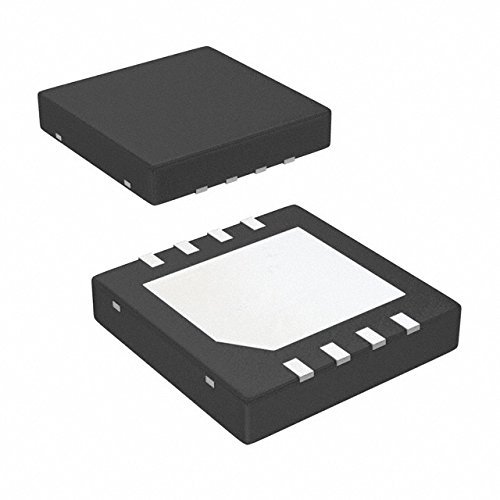

zoom

Brand: Texas Instruments
PartNumber: LM5001SDE/NOPB
Model: LM5001SDE/NOPB
PackageQuantity: 1
Manufacturer: Texas Instruments
Label: Texas Instruments

Attributes

Key	Value
Alternate Part No.	926-LM5001SDE/NOPB
Base Product Number	LM5001
Brand	Texas Instruments
Category	Integrated Circuits (IC.
Current - Output	800mA (Switch)
Frequency - Switching	50kHz ~ 1.5MHz
Function	Step-Up, Step-Up/Step-D.
Input Voltage MAX	75 V
Input Voltage MIN	3.1 V
Manufacturer	Texas Instruments
Manufacturer Part No.	LM5001SDE/NOPB
Maximum Operating Tempe.	+ 125 C
Mfr	Texas Instruments
Minimum Operating Tempe.	- 40 C
Mounting Style	SMD/SMT
Mounting Type	Surface Mount
Number of Outputs	1, 1 Output
Operating Temperature	-40?C ~ 125?C (TJ)
Operating Temperature R.	- 40 C to + 125 C
Output Configuration	Positive, Isolation Cap.
Output Current	1 A
Output Type	Adjustable
Output Voltage	1.26 V to 75 V
Package	Tape & Reel (TR)
Package / Case	8-WDFN Exposed Pad
Package/Case	LLP EP
Packaging	Reel
Product Category	Voltage Regulators - Sw.
Product Status	Active
Series	-, LM5001
Supplier Device Package	8-WSON (4x4)
Supply Voltage - Min	3.1 V
Switching Frequency	50 kHz to 1500 kHz
Synchronous Rectifier	No
Topology	Boost, Flyback, Forward.
Type	Inverting, Step Up
Voltage - Input (Max)	75V
Voltage - Input (Min)	3.1V
Voltage - Output (Max)	76V (Switch)
Voltage - Output (Min/F.	3.1V

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Mouser	926-LM5001SDE/NOPB	5.17	1	247		Texas Instruments		5.17 @ 1
	Digi-Key	3527280	5.94	1	1807		Texas Instruments		5.94 @ 1
	swatee.com	LM5001SDE/NOPB	6.89	1	350		Texas Instruments		6.89 @ 1
