TL084CN

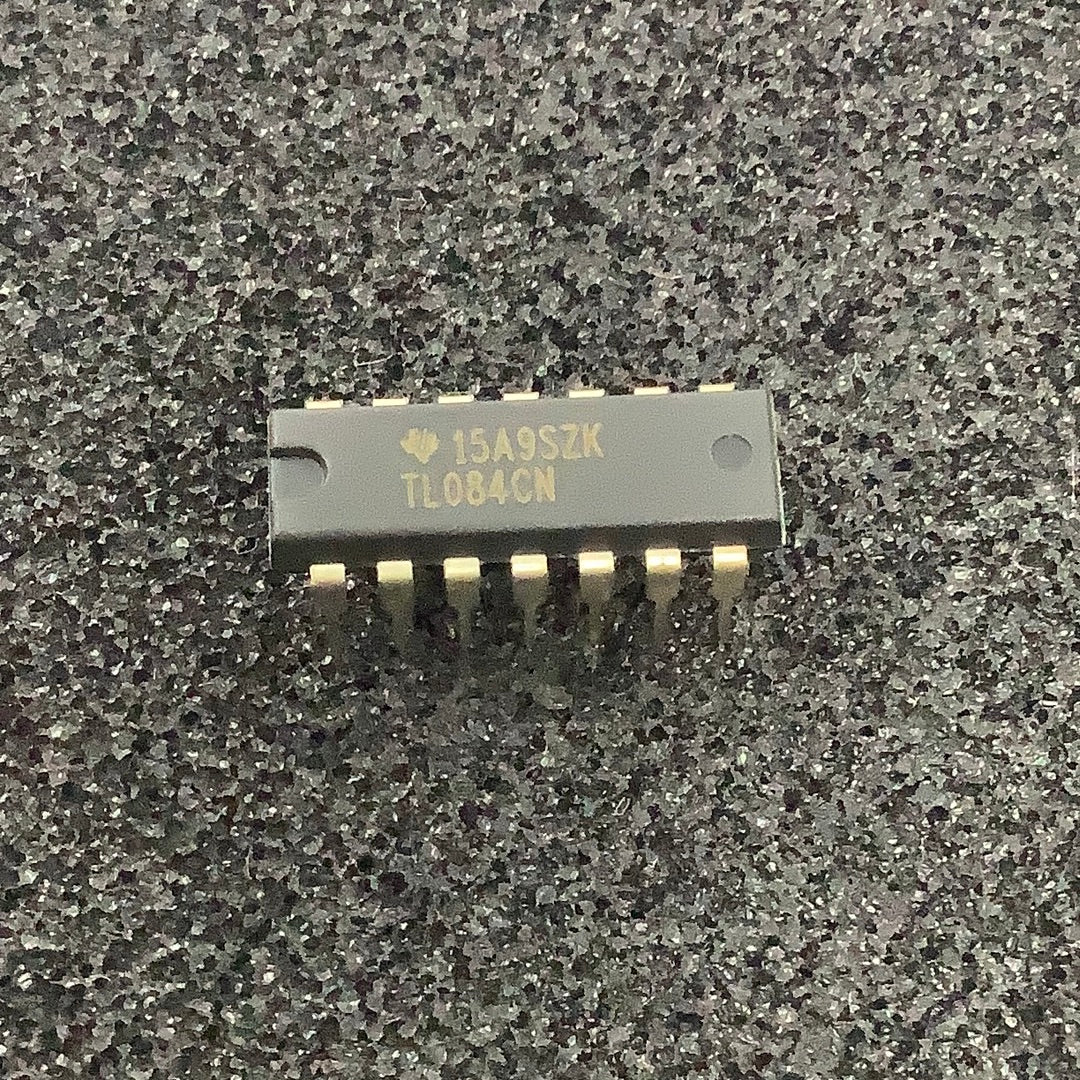

TEXAS INSTRUMENTS TL084CN IC, OP-AMP, 3MHZ, 13V/us, 15mV, DIP-14 (10 pieces)

TEXAS INSTRUMENTS TL084CN IC, OP-AMP, 3MHZ, 13V/us, 15mV, DIP-14 (10 pieces)zoom

Attributes

Key Value
Alternate Part No.595-TL084CN
Amplifier TypeJ-FET, General Purpose .
Base Product NumberTL084
BrandTexas Instruments
CaseDIP14
CategoryIntegrated Circuits (IC.
CMRR - Common Mode Reje.70 dB
Com Mode Inp Range (VIC.10
Current - Input Bias30 pA
Current - Output / Chan.10 mA
Current - Supply1.4mA (x4 Channels)
DescriptionIC OPAMP JFET 4 CIRCUIT.
Detailed DescriptionJ-FET Amplifier 4 Circu.
device functionoperational amplifier
device package type14 pin dip
Digi-Key Part Number296-1784-5-ND
Dual Supply Voltage+/- 5 V, +/- 9 V, +/- 1.
en - Input Voltage Nois.18 nV
Gain Bandwidth Product3 MHz
GBP - Gain Bandwidth Pr.3 MHz
I(io) Max. (A)5.0n
Ib - Input Bias Current400 pA
Inp Bias Curr. Max. (A)10n
item per pack1
ManufacturerTexas Instruments
Manufacturer Part No.TL084CN
Manufacturer Product Nu.TL084CN
Manufacturer Standard L.6 Weeks
Maximum Dual Supply Vol.+/- 18 V
Maximum Operating Tempe.+ 70 C
MfrTexas Instruments
Minimum Dual Supply Vol.+/- 3.5 V
Minimum Operating Tempe.0 C
Mounting StyleThrough Hole
Mounting TypeThrough Hole
Number of Channels4 Channel
Number of Circuits4
Oper. Temp (?C) Max.70
Oper. Temp (?C) Min0
Operating Supply Voltage7 V to 36 V, +/- 3.5 V .
Operating Temperature0?C ~ 70?C
Output Type-
PackageTube
packageTube
Package / Case14-DIP (0.300", 7.62mm)
Package/CasePDIP-14
PackagingTube
PD Max. (W)680m
Pinout Equivalence Numb.14-195
ProductOperational Amplifiers
Product CategoryOperational Amplifiers .
Product StatusActive
R(in) (?)1.0T-
SeriesTL084, -
ShutdownNo Shutdown
Single Supply Voltage7 V to 36 V
SKU17469
Slew Rate13V/?s
SR - Slew Rate13 V/us
Supplier Device Package14-PDIP
Supply Current per Chan.11.2 mA
Supply Voltage - Max36 V
Supply Voltage - Min7 V
Surface Mounted Yes/NoNO
TechnologyBiFET
TypeIntegrated Circuit
Unit Weight1 g
Unity Gain BW (Hz)4.0M
V(io) Max. (V)20m
Voltage - Input Offset3 mV
Voltage - Supply Span (.30 V
Voltage - Supply Span (.10 V
Vos - Input Offset Volt.15 mV

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Freelance ElectronicsTL084CN0.597751790Texas Instruments0.59775 @ 1
HotendaH25118080.631158Texas Instruments0.63 @ 1
RS Delivers371-10900.679218625Texas Instruments0.6792 @ 1
Mouser595-TL084CN0.6811765Texas Instruments0.68 @ 1
thumbzoomNewark33AH51070.9721102TEXAS INSTRUMENTS0.972 @ 1
thumbzoomTedss20280288451.010102TEXAS INSTRUMENTS1.0 @ 10
thumbzoomswatee.comTL084CN1.3113376Texas Instruments1.31 @ 1
thumbzoomace4parts.comTL084CN2.0199Texas Instruments2.0 @ 1
Little DiodeTL084CN5.9331285155Texas Instruments5.9331285 @ 1
thumbzoomComponent Electronics084CN-TI6.151102Texas Instruments6.15 @ 1
thumbzoomDigi-Key27742912.61172217Texas Instruments12.61 @ 1
thumbzoomebay.com_harrywubahTL084CN101.391102TEXAS INSTRUMENTS101.39 @ 1
thumbzoomebay.com_semi-conductorsTL084CN102.091102TEXAS INSTRUMENTS102.09 @ 1
thumbzoomebay.com_davenjan2000TL084CN104.981102TEXAS INSTRUMENTS104.98 @ 1
ebay.com_celticf-33TL084CN111.991102TEXAS INSTRUMENTS111.99 @ 1
thumbzoomebay.com_dielartTL084CN114.991102TEXAS INSTRUMENTS114.99 @ 1
