Dayton 4Z006

mpn4Z006
brandname: Dayton
manufacturername: Dayton

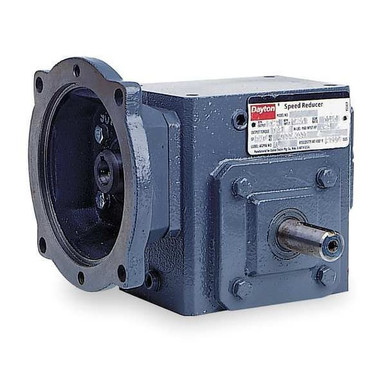

Speed Reducer, C-Face, 56C, 10:1

Speed Reducer, C-Face, 56C, 10:1

zoom

Brand: Dayton
PartNumber: 4Z006
Model: 4Z006
PackageQuantity: 1
Binding: Misc.
Manufacturer: Dayton
Label: Dayton

Attributes

Key	Value
Bearings	Ball
Bore Dia.	5/8"
Brand	Dayton
Current Stock	9
Dimension U	5/8 in
Duty	Standard
Finish	Powdered Epoxy Paint
Frame	56C
Gear Material	Hardened Steel, Mangane.
Gear Type	Worm
Housing Material	Cast Iron
Input RPM	1750 rpm, 1750
Input Shaft Diameter	5/8 in
International Shipping	No
Item	Speed Reducer
Lead Time	Expected to ship in 1-2.
Lubrication	Kluber Food Grade
Max. Input HP	3/4, 0.75
Max. Output Torque	182 in-lb, 182.00 in.-l.
Max. Torque (In.-Lbs.)	182
Mounting	Any Position Except Inp.
Mpn	4Z006
NEMA/IEC Frame	56C
Nominal Output RPM	175 RPM, 175
Nominal Ratio	10:1
Number of Stages	1
Oil Seal	Double Lip
Output Shaft Dia.	5/8 in
Output Shaft Diameter	5/8 in
Output Torque @ 1 HP	182 in-lbs, 182 in.-lb.
Output Torque @ 1/2 HP	155 in-lb
Output Torque @ 1/2 HP .	155
Output Torque @ 1/3 HP	102 in-lbs
Output Torque @ 1/3 HP .	102
Output Torque @ 1/4 HP	75 in-lb
Output Torque @ 1/4 HP .	75
Output Torque @ 1/40 HP	3,600 in-lbs, 3600 in.-.
Output Torque @ 3/4 HP	182 in-lbs
Output Torque @ 3/4 HP .	182
Overhung Load	275 lb.
Overhung Load (Lb.)	275
Pinion Material	Hardened Steel
Prop 65	WARNING: Cancer and Rep.
Rotation	CW/CCW, Forward/Reverse
Seal Type	Double Lip
Shaft Assembly	Double Output
Shaft Orientation	Right Angle
Ship Weight	17 lbs.
Single/Double Output/Un.	Double Output
SKU	ZO-G0756061
Solid/Hollow Output Sha.	Solid
Speed Reducer Type	C-Face
Standards	AGMA
SubCategory	Power Transmission
Type	C-Face
UPC	190735339787
Worm Center Distance	1.33"
Worm Gear Material	Bronze

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G0756061	422.99	1	25		Dayton	17.0	422.99 @ 1
	simsupply.com	ZO-G0756061	521.95	1	9		Dayton		521.95 @ 1
	AmazonTP	B000LESAE8	638.43	1	In Stock	5	Dayton		638.43 @ 1
	sustainablesupply.com	C2777419	638.88	1	In Stock		Dayton	17.0	638.88 @ 1
	Raptor Supplies	AE2QQK	694.276596	1	In Stock		DAYTON		694.276596 @ 1
	grainger.ca	WWG4Z006	701.07778958	1	In Stock		DAYTON	17.0	701.07778958 @ 1
	emotorpro.com	4Z006	924.6	1	In Stock		Dayton	17.0	924.6 @ 1
