Leeson Electric LM15670

B0773TQ78N

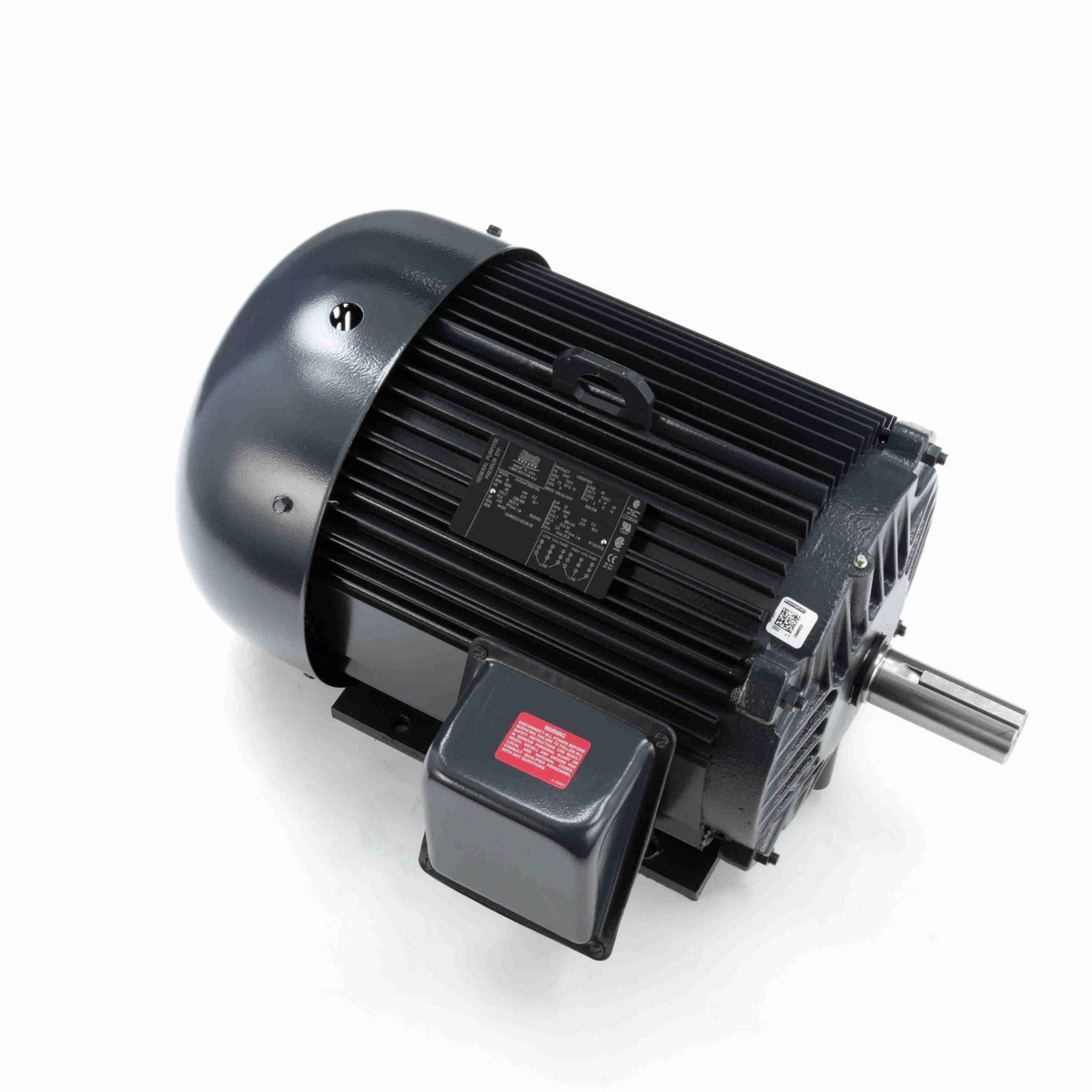

Leeson Electric, LM15670, 15HP, 3550RPM, 3PH, 230V;460V, 254T Frame, Standard Flange, Foot Mount, TEFC, General Purpose Motor

Leeson Electric, LM15670, 15HP, 3550RPM, 3PH, 230V;460V, 254T Frame, Standard Flange, Foot Mount, TEFC, General Purpose Motorzoom

Attributes

Key Value
Amperage Rating35/17.5 A
Amps35.0/17.5
Application TypeGeneral Purpose AC Moto.
ApprovalsCSA, UL
Bearing TypeBall
BearingsBall
CompositionAluminum
ConstructionAluminum
CT Speed Range10:1
Description:..15HP..3600RPM.254T.TE.
Dimensions23.4 in L x 16.98 in W .
Drive End Flange TypeStandard
Duty CycleContinuous
Efficiency91.7%
Efficiency %91.7 %
EnclosureTEFC, Totally Enclosed .
Enclosure MaterialAluminum
Enclosure TypeTEFC (Totally Enclosed .
Estimated Weight209.00
Family SeriesLeeson Motors, Three Ph.
FL Amps35/17.5&21.5-20
FL Efficiency91.7
Frame254T
Frequency Rating60 Hz
Gross Weight0 lbs
Hertz60
Horsepower15 hp
HP15
Hz60, 60/50
Insulation ClassClass F, F
Item NumberLM15670
ManufacturerLeeson Electric, LEESON.
Manufacturer Part NumberLM15670
MaterialAluminum
Maximum Ambient Tempera.40? C
MFG Part #:LM15670
Model NumberAAF2B15T61
Motor Shell Length12.00"
MountingFoot Mount, Rigid Base
Mounting TypeFoot Mount, Rigid, Rigi.
NEMA Frame254T
Net Weight209 lbs
Nominal Voltage208 VAC, 240 VAC, 415 V.
Number of Speeds1
Overall Length23.4 ", 23.40"
Part NumberLM15670
Phase3, 3 ph
Product SeriesThree Phase TEFC
Product TypeGeneral Purpose, Three .
RotationReversible
RPM3550, 3400 - 3600, 3,60.
Service Factor1.25
Shaft Diameter1.625"
Shaft Length4"
Shaft Size1.63 in Dia x 4 in L
Ship Weight215 lbs.
Speed3550 rpm
Speed (RPM)3550
Supplier:LEESON ELECTRIC CORPORA.
Temperature Rating40 deg C
UPC:691720021057
Voltage230V, 460V, 230/460
Voltage (AC)230 VAC, 460 VAC
Volts230/460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMRO Supply2251671760.411In StockLeeson1760.41 @ 1
industrialmotors.comLM156701872.012LEESON ELECTRIC1872.0 @ 1
thumbzoomGalcoLM15670-LEES2189.311In StockLeeson209.02189.31 @ 1
AmazonTPB00BC9CB3C2222.441In Stock10Leeson2222.44 @ 1
thumbzoommotorsandcontrol.comLE-LM156702414.6818Leeson Electric209.02414.68 @ 1
us.rs-online.com733967152459.641In StockLeeson2459.64 @ 1
thumbzoomemotorpro.comLM156702538.591In StockLeeson215.02538.59 @ 1
thumbzoomcbtcompany.comLM156702597.011In StockLeeson Electric2597.01 @ 1
thumbzoomWalker IndustrialLM156702736.631In Stock10Leeson2736.63 @ 1
kscdirect.comLEE LM156702965.121In StockLEESON ELECTRIC CORPORATION2965.12 @ 1
factorysupplyoutlet.comDK26FN3136.871In StockLEESON3136.87 @ 1
thumbzoompumpproducts.comLM156703275.61In StockLeeson3275.6 @ 1
