- mpn5KC37FN71X
- brandname: Marathon Motors
- manufacturername: Marathon Motors

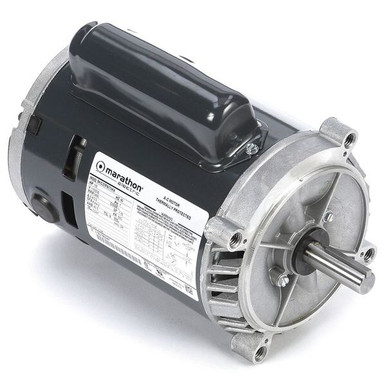

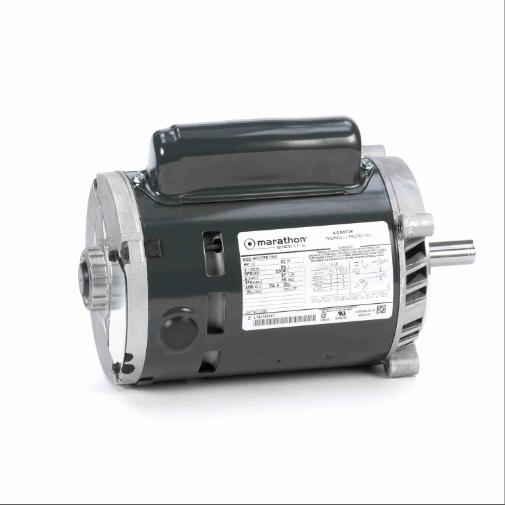

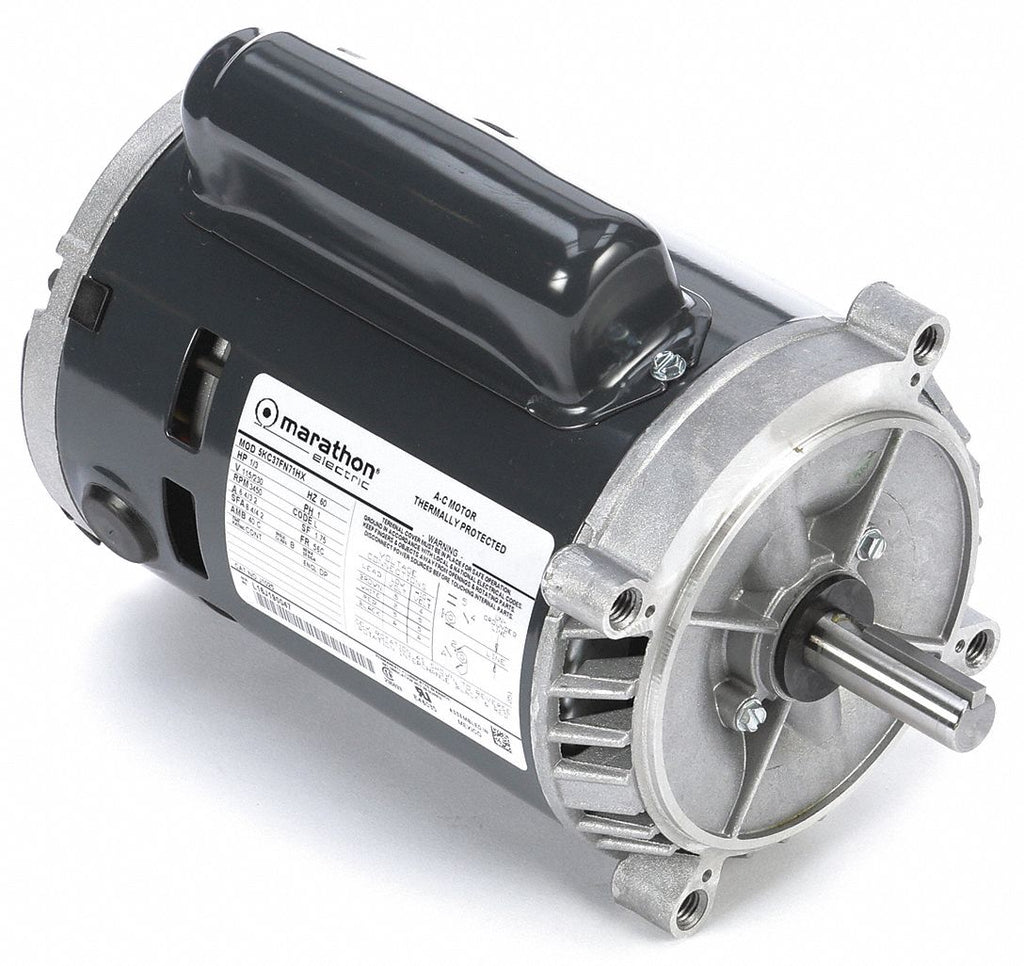

Jet Pump Motor, Capacitor-Start, 1/3hp
- Brand: Marathon Industries
- PartNumber: 5KC37FN71X
- PackageQuantity: 1
- Manufacturer: MARATHON MOTORS
- Label: MARATHON MOTORS
Attributes
| Key | Value |
|---|
| Body Dia. | 5.6 in |
| Bolt Circle Dia. | 2 15/16 in |
| Brand | Marathon Motors |
| Classification | Centrifugal Pump Jet Pu. |
| Composition | Rolled Steel |
| Construction | Rolled Steel |
| Current Stock | 47 |
| Drive End Flange Type | C-Face |
| Efficiency % | 56.6 % |
| Enclosure | ODP, Open |
| Family Series | Marathon Electric Motors |
| FL Amps | 6.4 |
| FL Efficiency | 56.6 |
| Frame | 56C |
| Frame Remarks | N/R |
| Gross Weight | 0 lbs |
| Hertz | 60 |
| Horsepower | 1/3 hp |
| HP | .33, 0.33 |
| Hz | 60 |
| Ins. Class | B |
| International Shipping | No |
| Item Condition | Factory New |
| Item Number | 5KC37FN71X |
| Kilowatts | 0.25 kW |
| KW | 0.25 |
| Lead Time | Expected to ship in 1-2. |
| Length Less Shaft | 8 13/16 in |
| Manufacturer | Marathon Electric, Mara. |
| Manufacturer Part Number | J1025 |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Application | Pump |
| Motor Bearings | Ball |
| Motor Design | Capacitor-Start |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Face |
| Motor Service Factor | 1.75 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Jet Pump |
| Motor Thermal Protection | Auto |
| Mounting | Round |
| Mounting Type | Round |
| Mpn | 5KC37FN71X |
| Nameplate RPM | 3,450 |
| NEMA Frame | 56C |
| Net Weight | 16 lbs |
| Nominal Voltage | 120 VAC, 240 VAC |
| Number of Speeds | 1 |
| Overall Length | 10 11/16 in |
| Part Number | 5KC37FN71X |
| Phase | 1, Single |
| Product Type | HVAC |
| RPM | 3,450 RPM, 3600 |
| Service Factor | 1.75 |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 7/8 in |
| Shaft Material | Carbon Steel |
| SKU | ZO-G5486914 |
| Speed (RPM) | 3450 |
| SubCategory | Motors/Ac Motors |
| Voltage | 110-120V, 230V, 115/230. |
| Voltage (AC) | 110-120 VAC, 230 VAC |
| Voltage Compatibility | 115/200-230V AC, 115/20. |
| Volts | 115/230 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Galco | 5KC37FN71X-MARA | 177.24 | 1 | In Stock | | Marathon Electric | 16.0 | 177.24 @ 1 |
 | Dealers Electric | 5KC37FN71X | 181.72 | 1 | In Stock | | Marathon Electric | 25.0 | 181.72 @ 1 |
 | Zoro | G5486914 | 188.99 | 1 | 71 | | Marathon Motors | 14.6 | 188.99 @ 1 |
 | motorsandcontrol.com | J1025 | 198.08 | 1 | In Stock | | Marathon Motors | | 198.08 @ 1 |
 | simsupply.com | ZO-G5486914 | 223.75 | 1 | 47 | | Marathon Motors | | 223.75 @ 1 |
 | pumpproducts.com | 5KC37FN71X | 313.08 | 1 | In Stock | | Marathon | | 313.08 @ 1 |
 | sustainablesupply.com | C1489176 | 322.15 | 1 | In Stock | | Marathon | 14.6 | 322.15 @ 1 |
 | Raptor Supplies | AF8KKW | 427.1740785 | 1 | In Stock | | MARATHON MOTORS | | 427.1740785 @ 1 |
