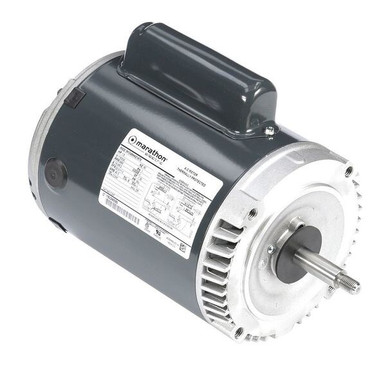

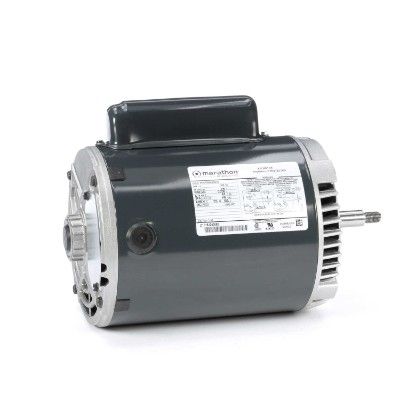

Marathon 5KC49NN2167X, General Purpose Pump Motor, 1-1/2 HP, 115/230 Volts, 9.2 Amps, 1 Phase, 60 Hz, 3450 RPM, ODP Enclosure, 56J Frame, Round, Rolled Steel Frame, Catalog No: C337

'Jet Pump Motor, Capacitor-Start, 1-1/2 HP, Nameplate RPM 3450, Voltage 115/230, 1 Phase, Frame 56J, Open Dripproof, Full Load Amps 18.4/9.2, 60 Hz, Motor Mounting Type Face, Motor Thermal Protection Auto, Ins. Class B, Motor Service Factor 1.30, Ball Motor Bearings, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWSE, Overall Length 11-7/8 In., Shaft Dia. 5/8 In., Shaft Length 2-3/8 In., Includes Shaft Slinger'

1-phase jet pump motor features a 2-compartment design with locked ball bearings on shaft end. Voltage-change plug and enlarged conduit box provide easy terminal lead connection.<br /><br /> Item: Jet Pump Motor<br /> Motor Application: Pump<br /> Motor Sub Application: Jet Pump<br /> Motor Design: Capacitor-Start<br /> Motor Enclosure Design: Open Dripproof<br /> HP: 1-1/2<br /> Nameplate RPM: 3450<br /> Frame: 56J<br /> Motor Shaft Rotation: CCWSE<br /> Voltage: 115/230<br /> Full Load Amps: 18.4/9.2<br /> Phase: 1<br /> Hz: 60<br /> Motor Mounting Type: Face<br /> Motor Mounting Position: All Angle<br /> Motor Bearings: Ball<br /> Motor Thermal Protection: Auto<br /> Motor Service Factor: 1.30<br /> Max. Ambient Temp.: 40 Degrees C<br /> Shaft Dia.: 5/8"<br /> Shaft Length: 2-3/8"<br /> Motor Shaft Design: Threaded<br /> Shaft Material: Stainless Steel<br /> Overall Length: 11-7/8"<br /> Body Dia.: 6.42"<br /> Ins. Class: B<br /> RPM Range: 3001-3600<br /> Duty: Continuous<br /> Motor Efficiency Group: Standard Efficient<br /> Nominal Efficiency: 72.0%<br /> Includes: Shaft Slinger<br /> Standards: UL Recognized, CSA Certified
