Order CV47SSM0500 by Titan CV47-SS 5" Check Valve, SS, Dual Disc Wafer, Metal Seat - US Mega Store

Titan . CV47SSM0500

Gallery

Attributes

Brand name, Manufacturer nameTitan
ManufacturerTitan Titan Flow Control
CategoryL1Plumbing
CategoryL2, DisplayNameValves
CategoryL3Check
CategoryL4Titan CV47SSM0500
ConditionNEW
Extra Product NameOrder CV47SSM0500 by Titan CV47-SS 5" Check Valve, SS, Dual Disc Wafer, Metal Seat - US Mega Store
moq, multiple, tierMinQty1, Case, NumberOfItems, Number_of_items1
MPN, SKU, Part Number, PartNumber, Part_numberCV47SSM0500
qtyInStockContact Us
snippet<p><strong>CV47-SS 5" Stainless Steel 900# Dual Disc Wafer Type Check Valve Stainless Steel Disc and Shaft, Inconel Spring, Metal Seat </strong> </p> <p><strong>Features: </strong> </p> <ul><li>Cost efficient design. Low weight and short laying length produce savings in initial cost, space requirements, and installation when compared to full-body, swing-type check valves. </li> <li>Minimal head loss. Contour of body provides a short and straight flow path that generates very little turbulence. Additionally, the spring-loaded discs are designed with very low cracking pressure which reduces the amount of energy required to open the valve. </li> <li>Quick closure to reduce water hammer. Shut-off is achieved via the fully automatic, spring-assisted discs that close near zero flow velocity. The lightweight, split disc design creates a positive shutoff prior to flow reversal and helps to keep slamming and surges to a minimum. </li> <li>Designed for long service life. The spring and discs are designed to allow the discs to lift linearly before pivoting to avoid the disc heal from scrubbing the sealing surface. Also, discs are equipped with cast-in shock bumpers that help to reduce wear and tear on internal components. </li> <li>Fugitive emission design. The retainer-less body design eliminates potential leak paths to the environment so there are no body emissions. </li> </ul>
tierPrice13532
Product GroupBISS
ASIN, AsinB01E9N4L08
AdultProduct, Autographed, Memorabilia, TradeInEligibleFalse
Brand, Label, Man, Publisher, StudioTitan Flow Control
CatIndustrial & Scientific
CatId16310091
CatTree16310091 16310161 3021479011
ClassificationId383615011
FetchTime1568270684 1649930426 1682486335 1705032957
Height, Width300 75
ItemClassificationBASE_PRODUCT

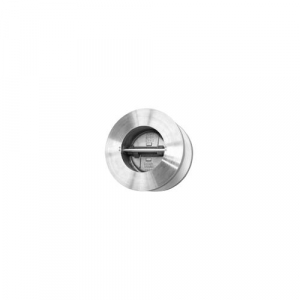

ItemName, Item_name, TitleTitan 5.0 CV47-SS-S-S-6-X Dual Disc Wafer Check Valve, 5", Flanged, Stainless Steel
Item_type_keywordindustrial-valves
Linkhttps://m.media-amazon.com/images/I/31-f2iE5ILL._SL75_.jpg https://m.media-amazon.com/images/I/31-f2iE5ILL.jpg
Marketplace_idATVPDKIKX0DER
MaterialStainless Steel
MaterialTypeStainless Steel 316
ProductGroupBISS BISS Basic
ProductTypeVALVE
ProductTypeNameLAB_SUPPLY
Product_descriptionTitan CV 47-SS series dual disc wafer check valve with 5" flanged connection has 2160 psi pressure rating and is made of stainless steel Brand Name|Titan#MFR Part Number|5.0 CV47-SS-S-S-6-X#Interchanges with|Mueller 5.0 77-HHH-H-X#UNSPSC|40141637#Item|Check Valve#Type|Dual Disc, Wafer#Series|CV 47-SS#Nominal Size|5 Inch#End Style|Flanged#Pressure Class|ANSI Class 900#Pressure Rating|2160 psi WOG#Coefficient of Volume|380 Cv#Cracking Pressure|0.25 psi#Media|Water, Oil, Gas#Body Material|Stainless Steel#Material Specifications|ASTM A351 Grade CF8M#Seat Material|Stainless Steel Inlay#Disc Material|ASTM A351 Grade CF8M Stainless Steel#Stem Material|ASTM A276 Grade 316 Stainless Steel#Spring Material|Inconel X-750#Temperature Rating|100 deg F#Application|Water and Waste Water, Pulp and Paper, Chemical and Petrochemical, Power, Petroleum, Oil and Gas#Standard/Approvals|ANSI/API 594, API 598, API 6D, ASME B16.34-1996
Product_site_launch_date2016-04-14T23:29:38.443Z
URLhttp://ecx.images-amazon.com/images/I/31-f2iE5ILL._SL75_.jpg https://m.media-amazon.com/images/I/31-f2iE5ILL._SL75_.jpg
Unitspixels
VariantMAIN
WebsiteDisplayGrouphome_improvement_display_on_website
WebsiteDisplayGroupNameHome Improvement

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comCV47SSM05001Contact Us11 @ $3532.00
cooneybrothers.com251415111 @ $4014.65
blackhawksupply.comCV47SSM05001Get a Quote1
heavydutydepot.comCV47SSM0500111 @ $3429.00
MegadepotCV47SSM0500111 @ $3429.00

Related on Amazon

As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

Titan 5.0 CV47-SS-S-S-6-X Dual Disc Wafer Check Valve, 5", Flanged, Stainless Steel
Brand: Titan Flow Control
Titan CV 47-SS series dual disc wafer check valve with 5" flanged connection has 2160 psi pressure rating and is made of stainless steel Brand Name|Titan#MFR Part Number|5.0 CV47-SS-S-S-6-X#Interchanges with|Mueller 5.0 77-HHH-H-X#UNSPSC|40141637#Item|Check Valve#Type|Dual Disc, Wafer#Series|CV 47-SS#Nominal Size|5 Inch#End Style|Flanged#Pressure Class|ANSI Class 900#Pressure Rating|2160 psi WOG#Coefficient of Volume|380 Cv#Cracking Pressure|0.25 psi#Media|Water, Oil, Gas#Body Material|Stainless Steel#Material Specifications|ASTM A351 Grade CF8M#Seat Material|Stainless Steel Inlay#Disc Material|ASTM A351 Grade CF8M Stainless Steel#Stem Material|ASTM A276 Grade 316 Stainless Steel#Spring Material|Inconel X-750#Temperature Rating|100 deg F#Application|Water and Waste Water, Pulp and Paper, Chemical and Petrochemical, Power, Petroleum, Oil and Gas#Standard/Approvals|ANSI/API 594, API 598, API 6D, ASME B16.34-1996
Listing
Product groupBISS Basic
Product typeLAB_SUPPLY
Part numberCV47SSM0500
Items per pack1
LabelTitan Flow Control
ManufacturerTitan Flow Control
Catalog
CategoryIndustrial & Scientific
MPNCV47SSM0500
Product groupBISS
Product typeLAB_SUPPLY
ManufacturerTitan Flow Control
