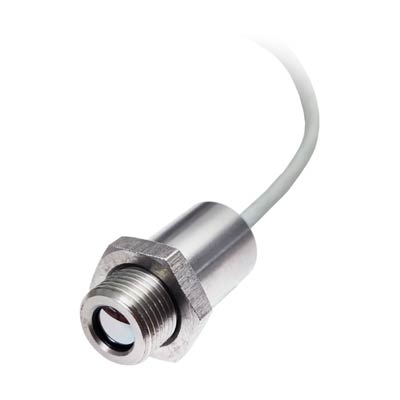

Hi-Temp Infrared Temperature Sensor with 15m Cable, 32 to 1832 F | RAYMI320LTHCB15

Raytek . RAYMI320LTHCB15

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerRaytek
Attribute000-20 mA, 4-20 mA, 0-5 V, 0-10 V, Type J Thermocouple, Type K Thermocouple, Type R Thermocouple, Type S Thermocouple
Attribute0132 to 1832 F
Attribute0222:1
Attribute03+/- 1% of reading or 2 F (1 C), whichever is greater
Attribute04+/- 0.5% of reading or +/- 1 F (0.5 C), whichever is greater
Attribute05+/- 0.2 F (0.1 C)
Attribute06130 ms
Attribute070.1 to 1.1
Attribute088-14 ?m
Attribute0915m (49') Teflon cable
Attribute1020 Ohms
Attribute1110,000 Ohms
Attribute128 to 32 VDC, max. 6 W
Attribute13NEMA 4 (IP65) rated stainless-steel head
Attribute1414 to 356 F (-10 to 180 C)
Attribute15-4 to 356 F (-20 to 180 C)
Attribute1610 to 95%, non-condensing
Attribute17IEC 60068-2-27, 50 g, 11 ms, operating, 3 axes
Attribute18IEC 60068-2-6, 11 to 200 Hz, 3 g above 25 Hz operating, 3 axes
AttributeKey00Output
AttributeKey01Temperature Range
AttributeKey02Optics (D:S)
AttributeKey03Accuracy
AttributeKey04Repeatability
AttributeKey05Temperature Resolution
AttributeKey06Response Time
AttributeKey07Emissivity
AttributeKey08Spectral Response
AttributeKey09Cable
AttributeKey10Output Impedance
AttributeKey11Load Impedance (Minimum)
AttributeKey12Power Requirement
AttributeKey13Housing
AttributeKey14Operational Ambient Temperature
AttributeKey15Storage Temperature
AttributeKey16Relative Humidity
AttributeKey17Shock
AttributeKey18Vibration
Extra Product NameHi-Temp Infrared Temperature Sensor with 15m Cable, 32 to 1832 F | RAYMI320LTHCB15
keywordsRAYMI320LTHCB15, RAYMI320LTHCB15, Raytek, Hi-Temp Infrared Temperature Sensor with 15m Cable, 32 to 1832 F | RAYMI320LTHCB15
moq, multiple, tierMinQty11
MPN, SKURAYMI320LTHCB15
qtyInStock0
qtySourceFieldMap
snippetPurchase the Raytek RAYMI320LTHCB15 on sale today at Solutions Direct for $972.62.
tierPrice1972.62

Distributor offers

SellerSKUMOQIn stockMultiplePrices
Solutions DirectRAYMI320LTHCB15111 @ $972.62
